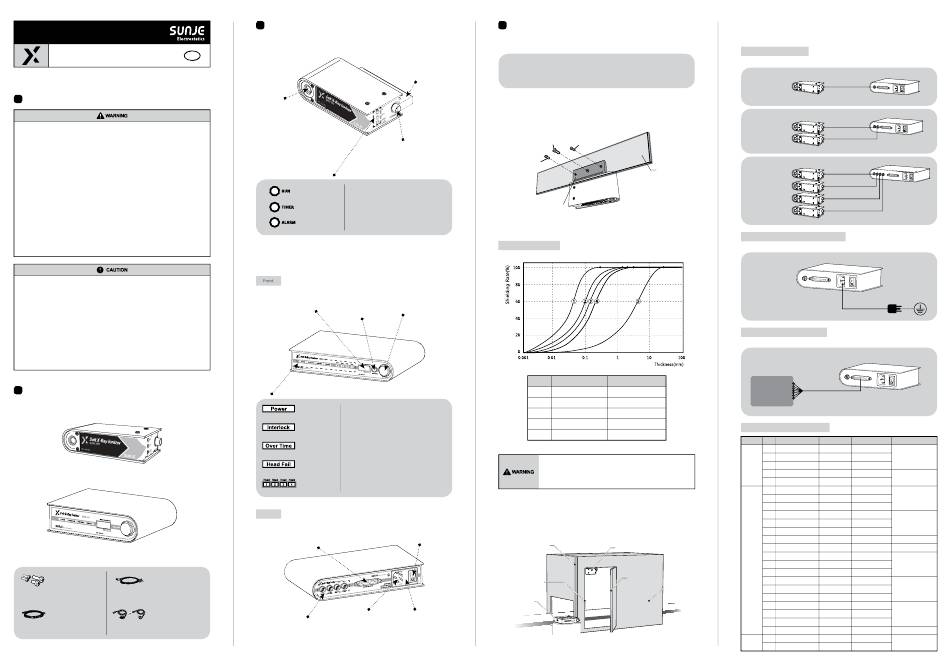

Sunje SXN-10V Instruction Manual

Instruction Manual
SXN-10V
Eng
It is recommended that only persons who have sufficient knowledge and experience such as system
designers and responsible persons deal with this product after carefully reading the product manual.
The matters of safety
1
* Do not fabricate or do maintenance by yourself. Malfunction, Electric shock, and fire danger are considered.
Contact us directly if you need the item to be repaired.
* Do not let the water touch the product. It may cause electric shock or fire due to malfunction.
* When you check or maintain the product, make it sure you turn off the power. It may cause electric
shock or fire due to malfunction.
* The item should be fixed to the target tightly. Electric discharging or breakage might happen.
* Please shield your installing circumstances first since the item releases the soft X-ray.
Direct X-ray exposure is not recommended owing to cause health problem
* It includes a beryllium window on the x-ray tube unit in order to release soft x-ray for ionization.
This beryllium material can cause respiratory disorder only if the person gets exposed to forms of either
beryllium powder or smoke. However, our device doesn't creat beryllium in neither of the mentioned forms.
Please be careful not to break the device since there might be a slight chance that the device could partially
degrade into the powder form, then it can cause harm defects. If the user touches the beryllium material
on the device, clean oneself on the running water or rinse it off with soap directly.
If the beryllium windonw gets dirty or damaged, call us directly for assistance.
* Do not use the product at the place where dangerous material such as inflammable or ignitable material
exists. This product is not the product of anti-explosive type.
* This device is made only for industrial uses. You need to ground the device beforehand.
Otherwise, there are in case of malfunction, electric shock, or fire damage.
* Do not disconnect the head cable with power applied. There is a possibility of electric shock or malfunction.
* Connect wires referring to the product manual. Wrong connection can cause failures.
* For your proper cable connection, take a look at the manual 「Installation & Connection」 for references.
Any disordered connection is detected, the malfunction might arise.
* All cables should be connected all the time. Please careful of cable disconnections. If power or
communication cables got damaged, replace them immediately. Malfunction and fire danger may happen.
* Do not install the device where the vibration can be detected. Any minor impact or vibration on the device,
the malfuction or danger of accident might happen.
* Do not use the item off the range of usage(Electrostatic elimination).
Malfunction or danger of accident may occur.
* If you wish to discard the head unit of x-ray device, you need to report for disuse declaration to the
institution(s) where they ask to. A proper declaration procedure is neccesary in order to disuse x-ray device.
* Please contact to either Korea Institute of Nuclear Safety(KINS) or a safety supervisor of Sunje directly.
Check the package contents
2
▶ Product Compositions
The package includes the following products composition.
Head Head
SXH-10V
1~4 ea
Controller
SXC-10T, SXC-102T, SXC-104T
1 ea
* Fixing Bolt * D-Sub Cable
SFB-XN-1-001 SDC-SN-4-001
1/4"-20unc x 15L/ 1~4ea 25Pin / 5m / 1ea
1/4"-20unc x 8L/ 1~4ea
M4 x 0.7Pitch x 10L/ 2~8ea
* Power Cable
SPC-MT-1-001
* Head Cable AC 100V, 50/60Hz, 1.8m / 1ea
SOC-XN-1-001 or
* Power Cable
15m / 1~4ea
SPC-MT-2-001
AC 220V, 50/60Hz, 1.8m / 1ea
01
Nomenclatures of parts
3
▶ Head Unit(SXH-10V)
Soft X-Ray Window
The x-ray radiation will
be released through this
beryllium window from
the head unit of x-ray ionizer.
Indicator Light
Blue LED will be on when the item is in operating
Operating indicator
condition.
Tube replacement Once the unit reaching 7,500hrs of operation,
Alarm indicator Orange LED will be on.
Malfunction Indicator When false operation, Red LED will be on.
▶ Controller Unit(SXC-10T / 102T/ 104T)
※ The following is a standard image of SXC-104T. The image might differ according to other models.
LCD Display Head Selection Button(102T, 104T only)
Hours of Head use This is for when you want to
and operation condition select an individual head from the
will be displayed. whole connections.
indicator Light
Power indicator Blue LED will be on once the controller is powered on.
For user's safety purpose, Green LED will be on when
Safety(Interlock)
interlock is safely contacted. (If the light is not on, the
Indicator
head unit is not in working condition)
Once the unit reaching 7,500hrs of operation,
Tube replacement
Alarm Indicator Orange LED will be on.
Malfunction Indicator when false operation, Red LED will be on.
Blue LED will be on the head you select among the
Head Selection
Indicator ones(Head1 or 2) are connected to a controller.
Rear
Signal input/output Connector
Use it when various signals
(input/output) are necessary.
Power Connector
Using it when
Head Connector
power supply.
A connector that links
the head unit and controller.
02
Installation and Connection
4
▶ Check the installation conditions head Unit
Please check the installation condition whether it meets proper specification.
■ Shielded Room
■ There must be no objects between the
target area and x-ray device.
Mounting Bracket ■ No vibration on the fixed device.
A bracket to fix
the item on the
▶ Head Unit fixing
facing target.
Fix the target product on the fixed area where you install by using supported fixing bolt(s).
Controller Connector
1/4"-20UNC x 15L or 8L
A connector to wire the
head unit and controller.
M4 x 10L
Mounting Bracket
▶ Shielding methods
Shielding material selection
See the following graph for references. Select the ideal tickness and quality of shielding material.
Run / Stop Button
It is a Run / stop button
in order to operate
a soft X-ray Ionizer.
No. Shield Material
①
②
③
④
⑤
* Please shield the area where the customer is willing to install the soft x-ray device
for safety issue.
* After shielding process, please connection to your own interlock system to operate
the x-ray device ON/OFF when the door is opened/closed.
▶ shield Installation Compositions
Please refer to the "Installation Compositions" for your references. Please keep your working
environment of the leakage radiation level within the range of 10μSv/hr all the time.
Power Switch
A switch for supply/cut
the power.
Head Cable
Interlock
Controller
Fuse Socket
When opening a socket, there is
a fuse inside. Please clarify your
proper specification when replacing.
03
▶ How to connect
Connecting to the head Unit
■ Be aware of any flammable or ignitable
materials around the working area.
■ Secure to have enough working space for
quick maintenance of the device.
M4 x 10L
Fixable Object
How to connect Earth Ground and Power Supply
Using supported ground and power cables to connect the controller.
Connecting the input & output signal
Thickness [mm]
Copper Over 0.4
Aluminium Over 2.0
Glass Over 3.0
PVC Over 5.0
Input/Output Signal Cable Specifications
Acrylic Over 40.0
Division
INPUT
Head Unit
OUTPUT
Shield Door
Shield
RS 485
Please connect the head and controller unit with supported "Head Cable".
<Controller>
<Head>
Head Cable
1:1 Type (SOC-XN-1-001)
(SXN-10V) Length : 15M
(SXH-10V)
(SXC-10T)
<Head> <Controller>
Head Cable
(SOC-XN-1-001)
1:2 Type
Length : 15M
(SXN-102V)
(SXC-102T)
(SXH-10V)
<Controller>
<Head>
Head Cable
(SOC-XN-1-001)
Length : 15M
1:4 Type
(SXC-104T)
(SXN-104V)
(SXH-10V)
<Controller>
Power Cable
(SPC-MT-2-001)
Length : 1.8M
Please connect the controller and external machinery equipment with supported "D-Sub Cable".
<Controller>
D-Sub Cable
(SDC-SN-4-001)
Equipment
Length : 5M
(PLC, etc.)
No. Pin Name Labeling Color Function
1 Remote On RMT-ON Black
Remote
2 Remote Off RMT-OFF White on Black On / Off
(Electrical Contact )
3 Common RMT-COM Brown
Interlock
4 Interlock INT-ON White on Brown
On / Off
5 Interlock INT-OFF Red (Electrical Contact )
6 Remote(N.O) RE-N.O White on Red
Remote
On / Off
7 Remote(Com) RE-COM Orange
State Output
8 Remote(N.C) RE-N.C Black on Orange
9 Interlock(N.O) IN-N.O Yellow
Interlock
On / Off
10 Interlock(Com) IN-COM Black on Yellow
State Output
11 Interlock(N.C) IN-N.C Green
12 -
Not Used - -
13 Ground - Black -
14 Power (N.O) POW-N.O White on Green
Power
On / Off
15 Power (Com) POW-COM Blue
State Output
16 Power (N.C) POW-N.C White on Blue
17 Head (N.O) HEAD-N.O Violet
Alarm(Over Time)
18 Head (Com) HEAD-COM White on Violet
State Output
19 Head (N.C) HEAD-N.C Gray
20 Alarm (N.O) AL-N.O Black on Gray
Alarm(Head Fail)
21 Alarm (Com) AL-COM White
State Output
22 Alarm (N.C) AL-N.C Black on White
23 Not Used - - -
24 Rs-485(+) RS-485+ Pink
RS 485
Communication
25 Rs-485(-) RS-485- Sky Blue
04
