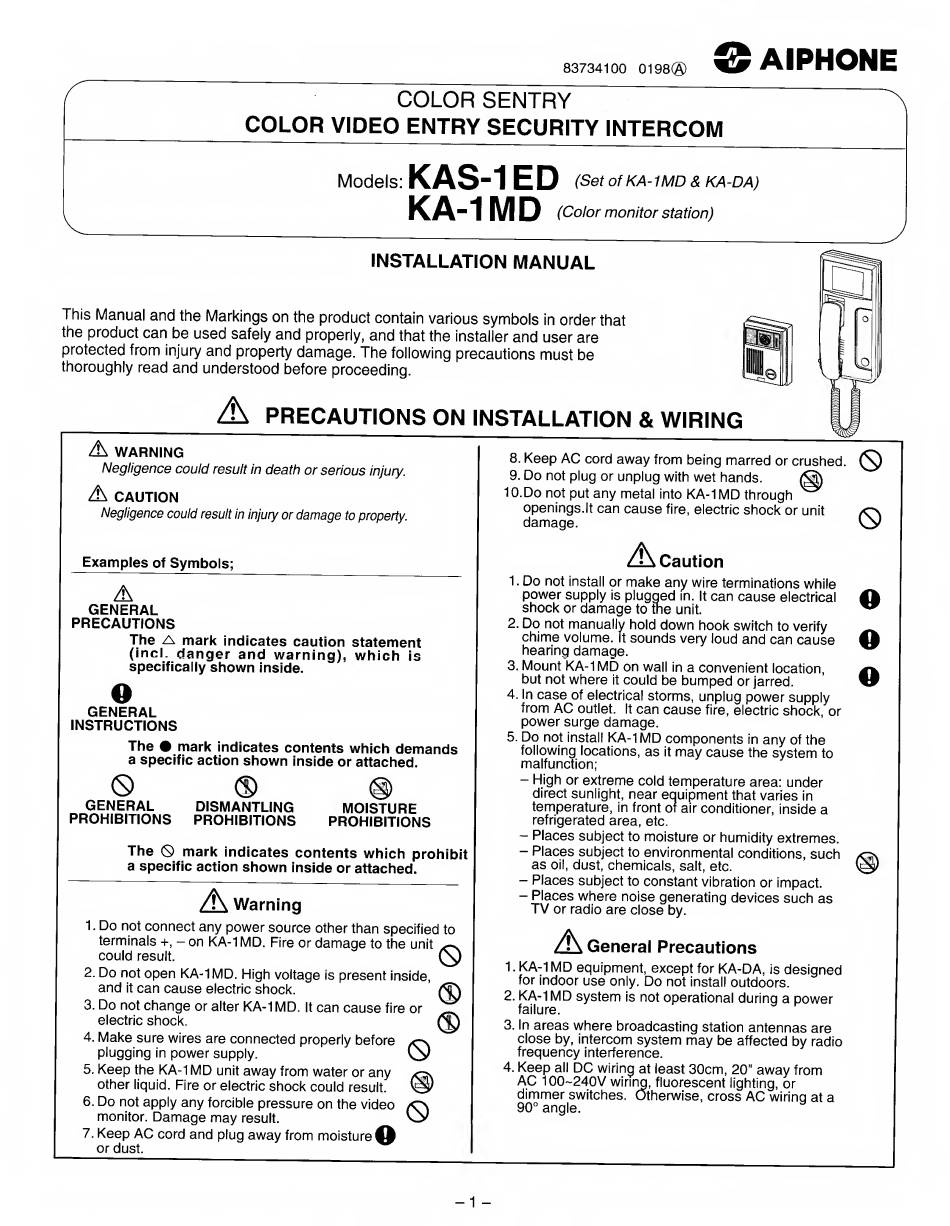

Aiphone KAS-1ED Installation Manual

83734100 0198®
G AIPHONE
COLOR SENTRY
COLOR VIDEO ENTRY SECURITY INTERCOM
Models:
KAS-1 ED
(Set of KA-1MD & KA-DA)
KA-1MD
(Color monitor station)
INSTALLATION MANUAL
This Manual and the Markings on the product contain various symbols in order that
the product can be used safely and properly, and that the installer and user are
protected from injury and property damage. The following precautions must be
thoroughly read and understood before proceeding.
A PRECAUTIONS ON INSTALLATION & WIRING
A
WARNING
Negligence could result in death or serious injury.
A
CAUTION
Negligence could result in injury or damage to property.
8. Keep AC cord away from being marred or crushed.
0
9. Do not plug or unplug with wet hands. (Q)
10.Do not put any metal into KA-1MD through ™
openings.lt can cause fire, electric shock or unit
damage. O'
Examples of Symbols;
A
GENERAL
PRECAUTIONS
The
A
mark indicates caution statement
(inch danger and warning), which is
specifically shown inside.
o
GENERAL
INSTRUCTIONS
The • mark indicates contents which demands
a specific action shown inside or attached.
0 0
(§)
GENERAL DISMANTLING MOISTURE
PROHIBITIONS PROHIBITIONS PROHIBITIONS
The 0) mark indicates contents which prohibit
a specific action shown inside or attached.
Warning
1. Do not connect any power source other than specified to
terminals +, — on KA-1MD. Fire or damage to the unit
could result.
2. Do not open KA-1MD. High voltage is present inside,
and it can cause electric shock. '
3. Do not change or alter KA-1 MD. It can cause fire or JZ
electric shock.
4. Make sure wires are connected properly before x-v
plugging in power supply. (o'
5. Keep the KA-1 MD unit away from water or any >
0
,
other liquid. Fire or electric shock could result. (o'
6. Do not apply any forcible pressure on the video
monitor. Damage may result. 'O'
7. Keep AC cord and plug away from moisture©
or dust.
ZlA Caution
1. Do not install or make any wire terminations while
power supply is plugged in. It can cause electrical
shock or damage to the unit.
2. Do not manually hold down hook switch to verify
chime volume, it sounds very loud and can cause
hearing damage.
3. Mount KA-1MD on wall in a convenient location,
but not where it could be bumped or jarred.
4. In case of electrical storms, unplug power supply
from AC outlet. It can cause fire, electric shock, or
power surge damage.
5. Do not install KA-1 MD components in any of the
following locations, as it may cause the system to
malfunction;
- High or extreme cold temperature area: under
direct sunlight, near equipment that varies in
temperature, in front of air conditioner, inside a
refrigerated area, etc.
- Places subject to moisture or humidity extremes.
- Places subject to environmental conditions, such
as oil, dust, chemicals, salt, etc.
- Places subject to constant vibration or impact.
- Places where noise generating devices such as
TV or radio are close by.
A
General Precautions
1. KA-1 MD equipment, except for KA-DA, is designed
for indoor use only. Do not install outdoors.
2. KA-1 MD system is not operational during a power
failure.
3. In areas where broadcasting station antennas are
close by, intercom system may be affected by radio
frequency interference.
4. Keep all DC wiring at least 30cm, 20" away from
AC 100-240V wirina, fluorescent lighting, or
dimmer switches. Otherwise, cross AC wirina at a
90° angle.
-
1
-
