Talking Products Talking Labels TL1-20-WHT User Manual

Talking Labels - User Guide V1.0
Talking Labels allow you to record, store and playback a voice message. Total recording
time 20 seconds. Please read these instructions carefully and keep for reference.
Before you begin, please pull out the clear tab from the Battery Door on the rear side of
the label. This will activate the battery power.
How to record a message

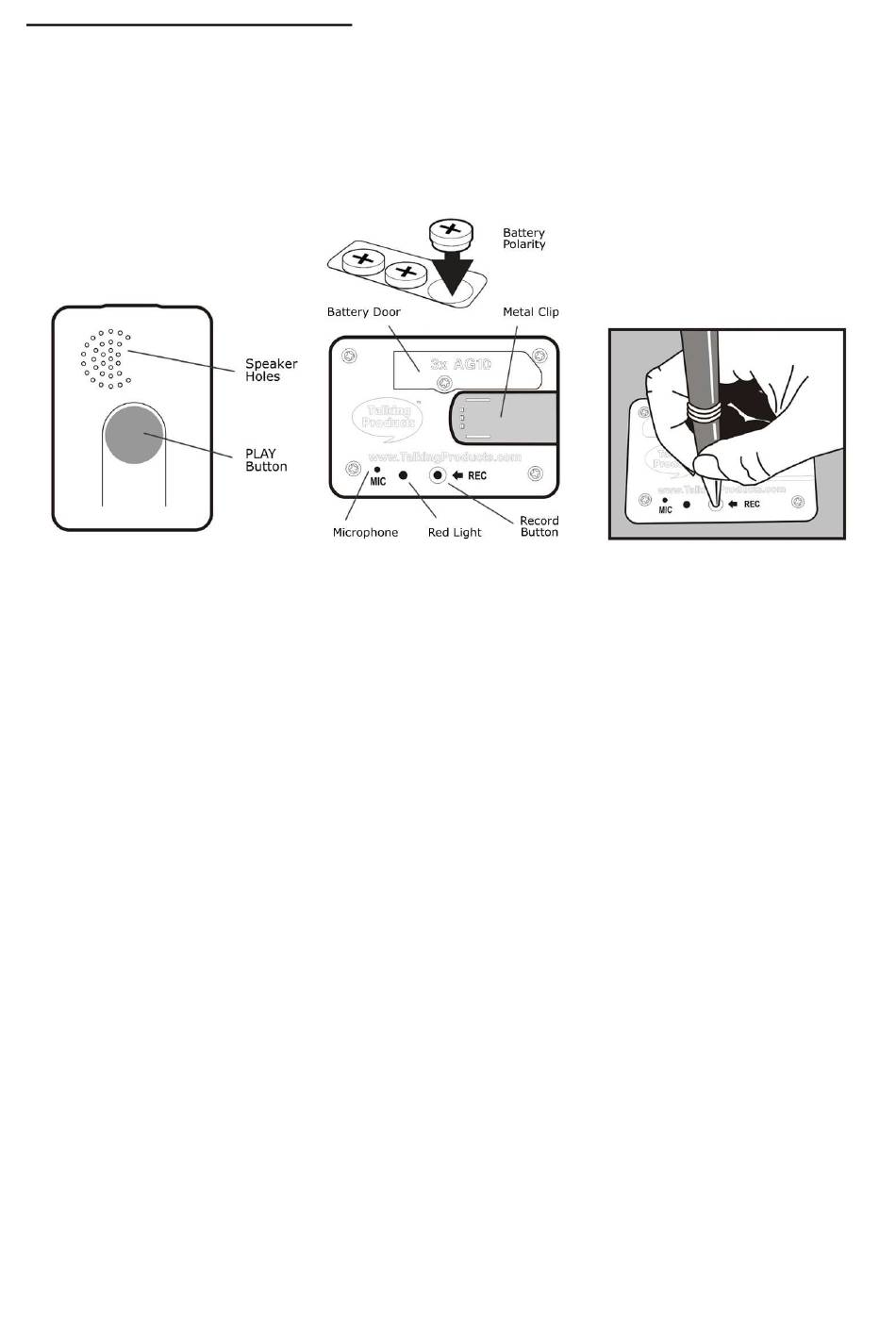

The Record Button is located through a hole on the rear side of the label. The hole is
indicated with an arrow symbol and the letters REC. A red light is located to the left of the
Record Button, which will illuminate when recording. The Microphone is located to the left
of the red light indicated with letters MIC.
1. Use the point of a pen to push through the hole. Press down vertically and the red light
will illuminate, indicating that recording has begun.
2. Speak clearly into the microphone, at a distance of approximately 15cm, and release
the button when you have finished recording.
Important Notes
Ensure that the Record Button remains pressed down, so that the red light remains on
whilst you are recording. You will hear a beep sound to indicate recording has begun and
then two beeps to indicate recording has finished.
Do not use excessive force when you press down, this could damage the Record Button.
If you are using the Talking Label for medication, your recorded message could include the
name of the patient, a description of the medication, dosage instructions and any important
warning notes. Always read the instructions on the medication and consult your GP.
