AGROWtEK
Technology to Help You Grow
Specifi cations
Input Power
Compatible Sensors
Protocols
Number of Sensors
Sensor Addressing
Controller Interface
Sensor Connection
Contents
Connections
TRS Connection
M8 Connection
Connection to GrowControl™ GCX
GrowNET™ Hubs
KEEP THESE INSTRUCTIONS
1

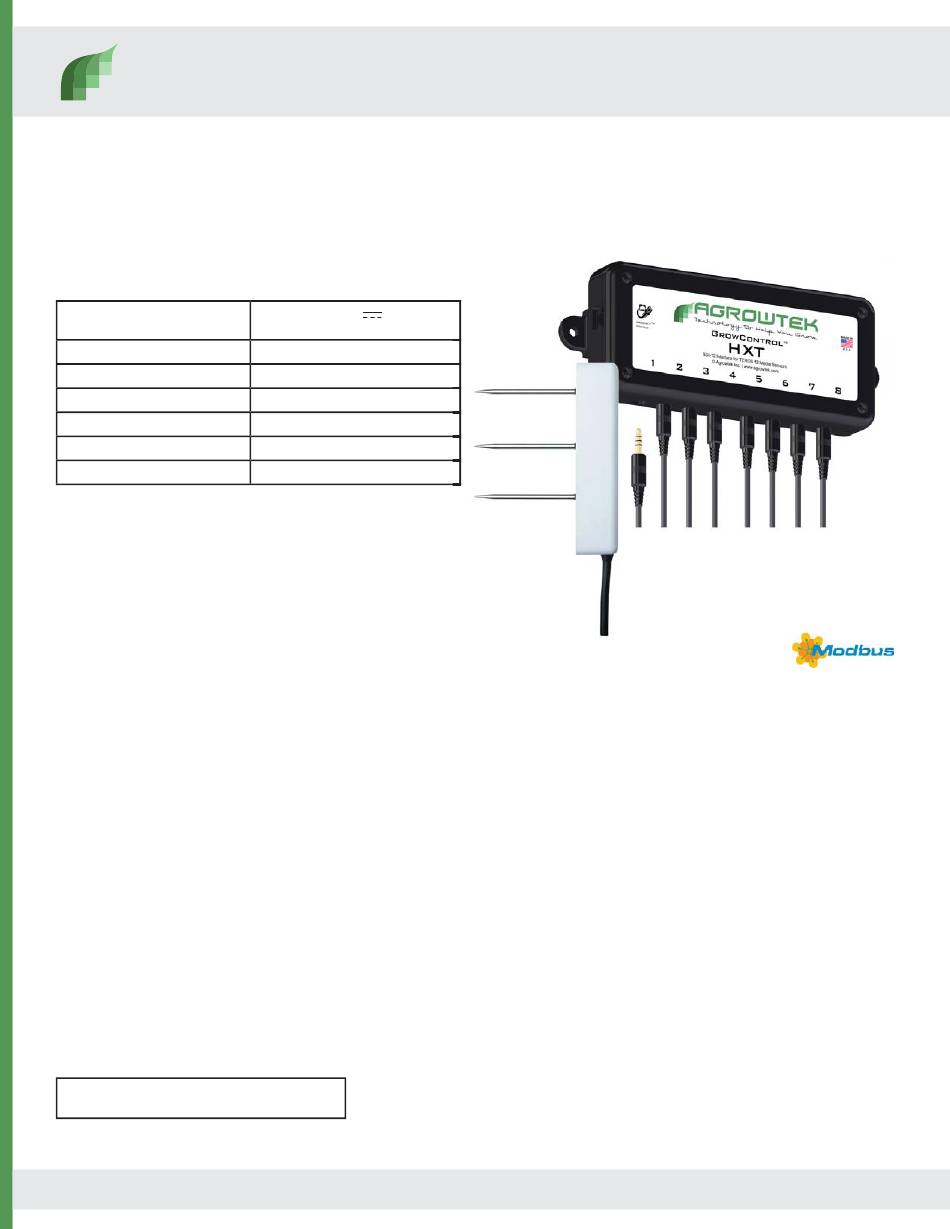

SDI Sensor Hub
for Teros 12 Sensors
5 W @ 12-24Vdc
Class II / Limited Energy Power Supply
Teros 12
SDI-12
8
Automatic
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
2
2
3
3
4
4
4
5
5
INSTRUCTION MANUAL
HXT
6
6
7
7
7
8
8
8
8
Advertisement
Table of Contents
Related Manuals for Agrowtek HXT
Summary of Contents for Agrowtek HXT
-
Page 1: Table Of Contents
M8 Connection Maintenance & Service Storage and Disposal Connection to GrowControl™ GCX Warranty GrowNET™ Hubs KEEP THESE INSTRUCTIONS © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™ © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 2: Introduction
Aroya to Agrowtek GrowControl™ GCX control systems or to industrial PLC systems via MODBUS RTU. The HXT hub recieves power from the RJ-45 connection to operate the sensors and hub. Sensors are automatically de- tected when they are connected and no special addressing is required on the moisture sensors. -
Page 3: External Features
2. TRS Port 3.5mm TRS (stereo) connector port for Teros 12 SDI sensors. 3. Mounting Flange For wall mounting. 4. Power LED Red LED indicates the HXT hub has power from the GrowNET™ connection. Dimensions Mounting holes: dia. 0.201” 7-1/8” AGROWtEK... - Page 4 M8 connection to TRS. TRS Connection TRS type connectors simply plug into the TRS jacks on the HXT hub. If longer leads are required, simply con- nect in TRS extension cables for the length required (available from Agrowtek.)
- Page 5 CAT5 cable. A DC jack on the hub provides 24Vdc power to the ports from the included wall power supply. A terminal block power option is also available. © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™...
-
Page 6: Connection To Usb Agrowlink
Connection to USB AgrowLINK Agrowtek’s HXT sensor hub may be connected to the LX1 USB AgrowLINK for fi rmware updates, communi- cation protocol confi guration, addressing and manual operation. Standard drivers automatically install in Windows for the LX1 USB AgrowLINK. -
Page 7: Supported Commands
16 bit, unsigned 40101 - 40108 Electrical Conductivity 0 - 20,000 uS 16 bit, unsigned 40109 - 40116 Temperature -40° - 60°C x10 16 bit, unsigned 40117 - 40124 © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 8: Technical Information
Warranty Period. In no event or circumstance shall Agrowtek Inc. be liable to any third party or the claimant for damages in excess of the price paid for the product, or for any loss of use, inconvenience, commercial loss, loss of time, lost profi ts or savings or any other incidental, consequential or special damages arising out of the use of, or inability to use, the product.
