Himmelstrutz Space Gnome
Owner's Manual
(Serial. #001-)
Congratulations on your choice of Himmelstrutz Space Gnome (HSG)—your analogue alternative/complement to your valve
spring-reverb-equipped amplifier which may be fantastic but is big + heavy and requires maintenance and probably much
electrical energy/power. Tip: Read this document before connecting the wires to power up and play your HSG, which will
give you a better understanding about this unique Swedish product.
Setup/usage:
1. Preparation
Adjust the Vol control to zero. The Vol control sets the Output
Power for the speaker & also the Rec-Out# level.

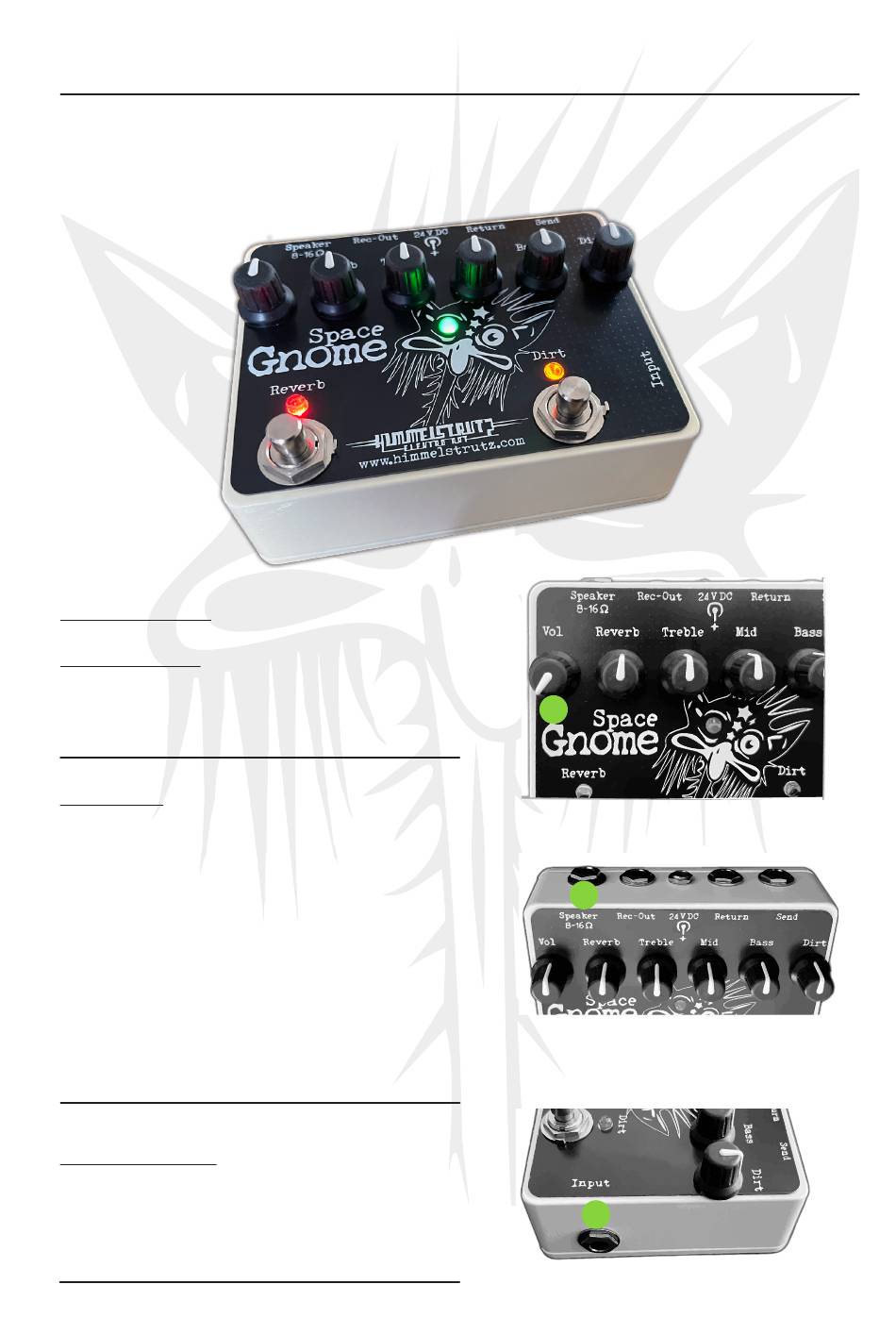

2. Speaker
Connect a speaker of 8 to 16 Ω to the Speaker 1/4" Jack.
Note1: As there's no speaker included with HSG, it's your
mission to obtain one or more of 8 to 16 Ω speaker cabinet(s)
aimed for guitar amplifiers. Please check this out with your
local music dealer or Online.
Note 2: If you're used of valve amplifiers you probably know
a speaker MUST be connected, for safety. No worries here: if
you don't connect a speaker to HSG it will not be unsafe—it
may only be silent while no speaker is connected but it will
not destroy the amplifier!
3. Instrument in
Connect your instrument, or the output from your pedal(s) to
the Input
.
1/4" Jack
Doc: 6403046_om_001-. (#001–)
Complete Pedalboard Guitar Amplifier
1
2
3
1:6
Advertisement
Summary of Contents for Himmelstrutz Space Gnome
- Page 1 Owner’s Manual (Serial. #001-) Congratulations on your choice of Himmelstrutz Space Gnome (HSG)—your analogue alternative/complement to your valve spring-reverb-equipped amplifier which may be fantastic but is big + heavy and requires maintenance and probably much electrical energy/power. Tip: Read this document before connecting the wires to power up and play your HSG, which will give you a better understanding about this unique Swedish product.
-
Page 2: Power Supply
4. Power Supply A) Connect the included, dedicated AC/DC-adapter primary connection to a grounded mains outlet (100 to 240V AC/50 or 60 Hz) with the included Mains Power Lead B) Connect the The AC/DC adapter secondary plug to the HSG 24V DC jack Note: Use ONLY the included, dedicated, 24V AC/DC adapter for powering HSG. - Page 3 7. The Clean & The Dirt HSG is equipped with 2 main characters/channels: The Clean & The Dirt. The Clean: To use the Clean channel, push the Dirt footswitch so the Dirt LED get into OFF mode. In this state the Dirt control has no function (is inactivated) and the output character will be focused on clean, shimmering sounds—which can get a bit overdriven on higher Vol...
- Page 4 @ destination sounderland-wonderland! 8. Summary At Himmelstrutz Elektro Art we wish you will get good use of and find a lot of inspiring sounds and feel in company with your Himmelstrutz Space Gnome! Take care of your hearing: if you play loud, please use ear protection, which may be forgotten when you experience nice sounds.
- Page 5 Himmelstrutz Space Gnome Connections/Controls Speaker 8-16 Ω Output DI/Recording Output (10 kΩ) 24V DC Power Supply Input Effect Loop Return Input (1 MΩ) Effect Loop Send Output (1 kΩ) Output Volume Control Reverb Level Control Treble Level Control Mid Level Control...
- Page 6 Note: Adjust the internal settings ONLY if you’re sure what & why you’re doing these things—otherwise don’t hesitate to contact Himmelstrutz Elektro Art for assistance! To access the internal settings you need to unscrew 4 external screws with a Philips screwdriver, on the bottom plate, and you’ll also need a few tools for the internals:...
