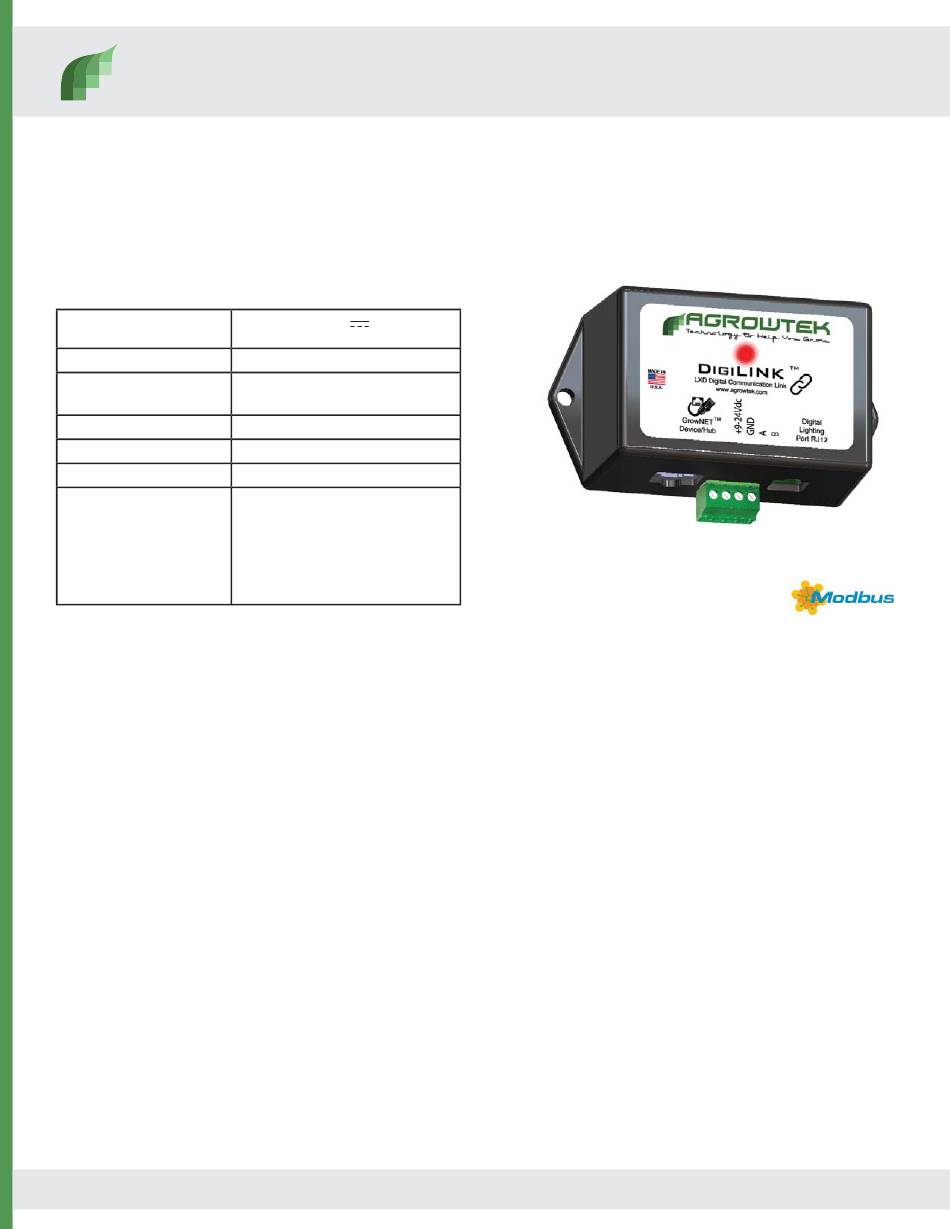

AGROWtEK
Technology to Help You Grow
Specifi cations
Input Power
Typical Power Use
Device Port
Controller Port
Data Indicator
Enclosure Rating
Protocols Supported
Contents
Revolution Lighting
Warranty
1
Lighting Digital Interface
Communication Bridge for Digital Light Fixtures
1A@12-24Vdc
Class II / Limited Energy Power Supply
3W
RS-485, 2-Wire
Screw Terminals & RJ-12
RJ-45 (GrowNET™)
Red LED
TYPE 12 NEMA
Thinkgrow
Dutch Light Innovations (DLI)
Hydrofarm / Phantom
Scynce
Fohse
Revolution Lighting
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
© Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™
g
2
2
2
3
3
4
4
5
5
6
7
7
7
7
INSTRUCTION MANUAL
LXD DigiLINK™
Advertisement
Table of Contents
Summary of Contents for Agrowtek LXD DigiLINK
-
Page 1: Table Of Contents
Dutch Light Innovations Hydrofarm / Phantom Scynce Fohse Revolution Lighting Technical Information Maintenance & Service Storage and Disposal Warranty © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™ © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 2: Introduction
Introduction LXD Digital Lighting Link modules connect Agrowtek GrowControl™ GCX Cultivation Control Systems to lighting fi xtures from various manufacturers that are controlled with digital communication protocols. One module is require per lighting zone and is situated between the GCX controller and the light fi xtures as a communication bridge. -
Page 3: Connections
Thinkgrow fi xtures require the ECS-9 Data cable (12ft/ RJ12 to 4-pin IP65 connector cable) available from Thinkgrow. This cable plugs directly into the LXD module for fi xture control. ECS-9 Thinkgrow Cable © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 4: Dutch Light Innovations
RJ-12 cable. Hydrofarm RJ-12 to USB Cable Wire Color Connection Yellow DC Ground Green A (Data +) Blue B (Data -) © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... -
Page 5: Scynce
Connection to Fohse fi xtures requires manual connection to the terminal blocks by cutting and stripping the wires of the Fohse data cable at one end. See connection details below. Wire Color Connection A (Data +) Pink B (Data -) Black FOHSE Data Cable © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™... - Page 6 RJ data cable at one end. See connection details below. RJ-11 (4-Pin) RJ-12 (6-Pin) LXD Connection Pin 1 Pin 2 A (Data +) Pin 2 Pin 3 B (Data -) Pin 1 Pin 4 Pin 1 Pin 6 © Agrowtek Inc. | www.agrowtek.com | Technology to Help You Grow™...
-
Page 7: Technical Information
Warranty Period. In no event or circumstance shall Agrowtek Inc. be liable to any third party or the claimant for damages in excess of the price paid for the product, or for any loss of use, inconvenience, commercial loss, loss of time, lost profi ts or savings or any other incidental, consequential or special damages arising out of the use of, or inability to use, the product.
