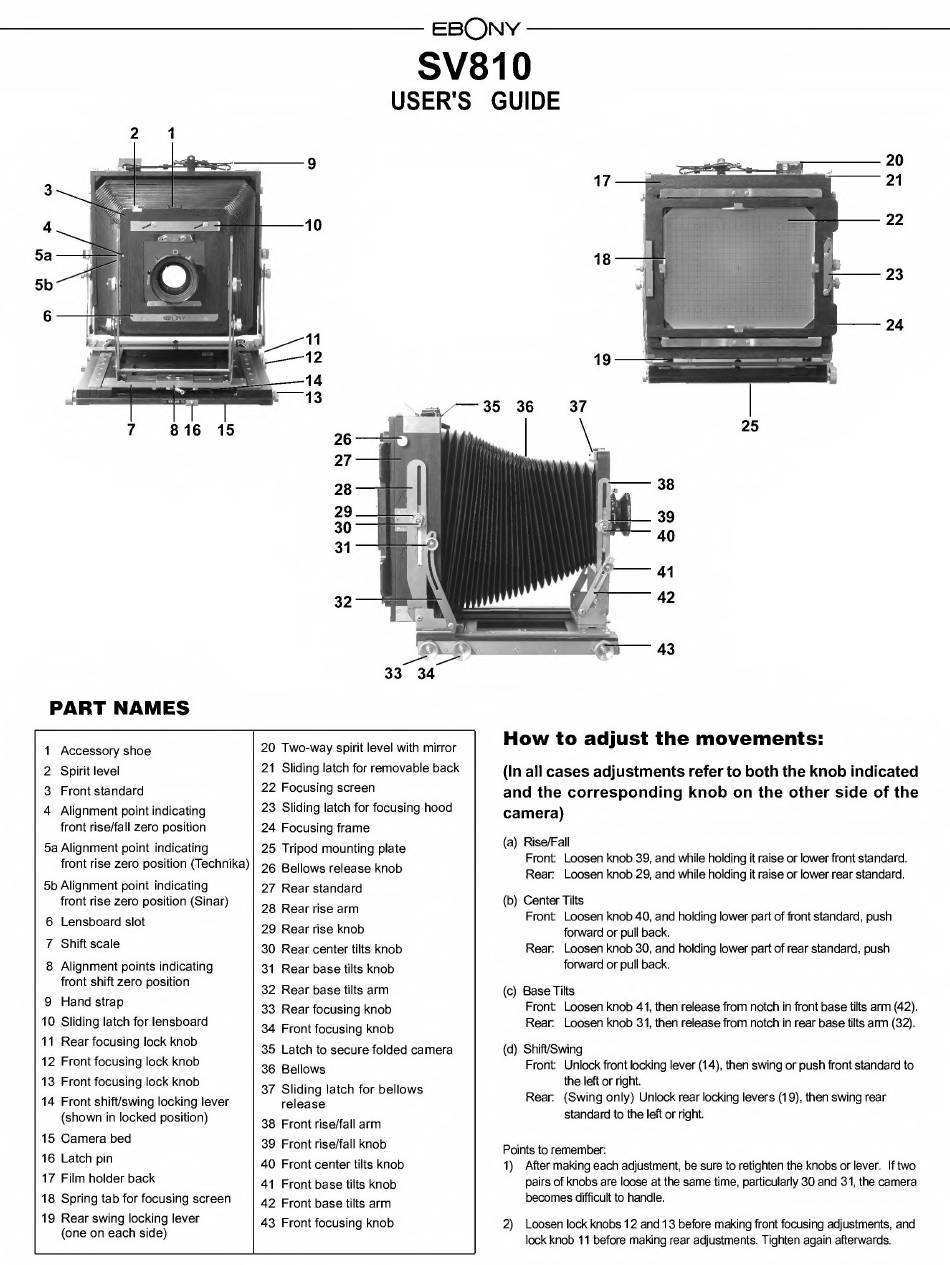

— ebOny —
SV810
USER'S GUIDE
2 1
33 34
PART NAMES
1 Accessory shoe
20 Two-way spirit level with mirror
2 Spirit level
21 Sliding latch for removable back
3 Front standard
22 Focusing screen
4 Alignment point indicating
23 Sliding latch for focusing hood
front rise/fall zero position 24 Focusing frame
5a Alignment point indicating
25 Tripod mounting plate
front rise zero position (Technika)
26 Bellows release knob
5b Alignment point indicating
27 Rear standard
front rise zero position (Sinar)
28 Rear rise arm
6 Lensboard slot
29 Rear rise knob
7 Shift scale
30 Rear center tilts knob
8 Alignment points indicating
31 Rear base tilts knob
front shift zero position
32 Rear base tilts arm
9 Hand strap
33 Rear focusing knob
10 Sliding latch for lensboard
34 Front focusing knob
11 Rear focusing lock knob
35 Latch to secure folded camera
12 Front focusing lock knob
36 Bellows
13 Front focusing lock knob
37 Sliding latch for bellows
14 Front shift/swing locking lever
release
(shown in locked position)
38 Front rise/fall arm
15 Camera bed
39 Front rise/fall knob
16 Latch pin
40 Front center tilts knob
17 Film holder back
41 Front base tilts knob
18 Spring tab for focusing screen
42 Front base tilts arm
19 Rear swing locking lever
43 Front focusing knob
(one on each side)
How to adjust the movements:
(In all cases adjustments refer to both the knob indicated
and the corresponding knob on the other side of the
camera)
(a) Rise/Fall
Front: Loosen knob 39, and while holding it raise or lower front standard.
Rear: Loosen knob 29, and while holding it raise or lower rear standard.
(b) Center Tilts
Front: Loosen knob 40, and holding lower part of front standard, push
forward or pull back.
Rear: Loosen knob 30, and holding lower part of rear standard, push
forward or pull back.
(c) Base Tilts
Front: Loosen knob 41, then release from notch in front base tilts arm (42).
Rear: Loosen knob 31, then release from notch in rear base tilts arm (32).
(d) Shift/Swing
Front: Unlock front locking lever (14), then swing or push front standard to
the left or right.
Rear: (Swing only) Unlock rear locking levers (19), then swing rear
standard to the left or right.
Points to remember:
1) After making each adjustment, be sure to retighten the knobs or lever. If two
pairs of knobs are loose at the same time, particularly 30 and 31, the camera
becomes difficult to handle.
2) Loosen lock knobs 12 and 13 before making front focusing adjustments, and
lock knob 11 before making rear adjustments. Tighten again afterwards.
