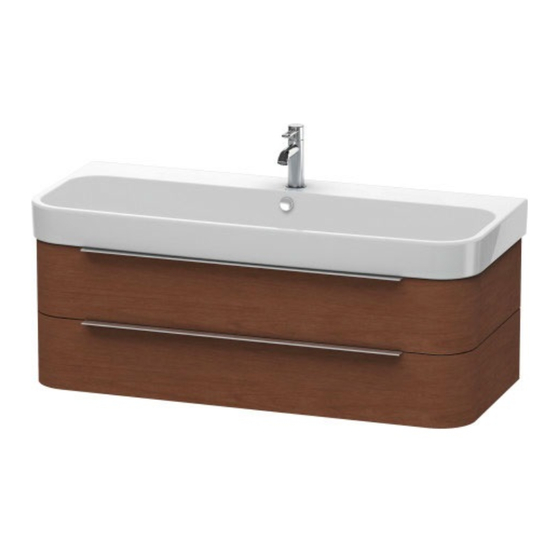

Installation instructions
A
A
mm
inch
1175
46 1/4"
Please leave clearance between wall and furniture.
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Though designed for the wet environment, direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvments and design modifications to the products illustrated.
MAL_Happy D.2_H26367/15.04.1
B
B
mm
inch
937
37"
1085
2x S8
2x D20x28
# F45992
2x 5x70
C
C
mm
inch
42 3/4"
225
8 7/8"
150
5 7/8"
120
4 3/4"
# 231812
2x 100
4x S8
# F25576
4x 5x50
# H2 6367
225
280
8 7/8"
11"
420
150
16 1/2"
5 7/8"
120
450
17 3/4"
4 3/4"
# 0050730092
# 231812
