BEFORE YOU BEGIN ...............................................................................................................................
BASE SPLICE ............................................................................................................................................

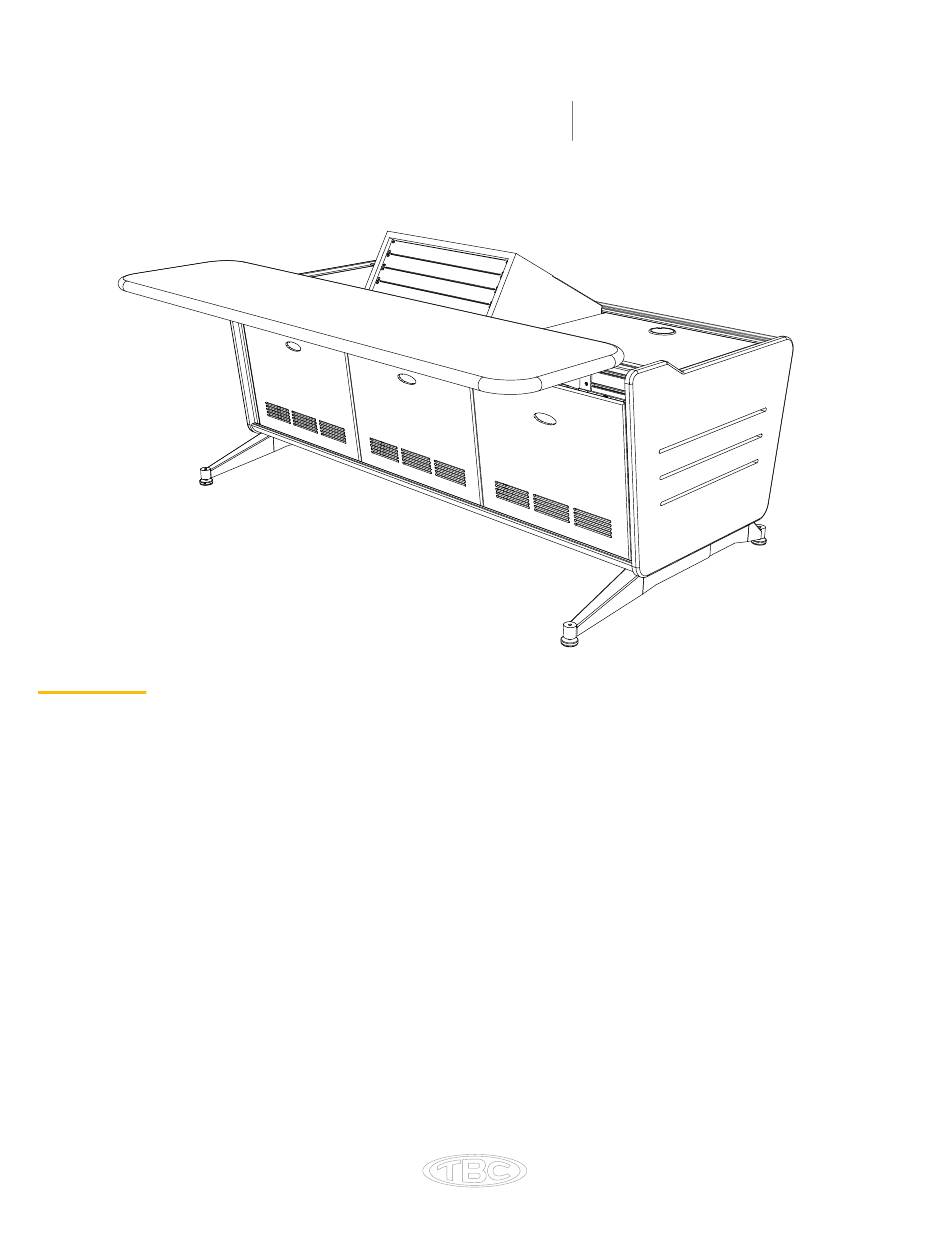

V3 ASSEMBLY INSTRUCTIONS Contents: BEFORE YOU BEGIN ..........................PAGE 2 BASE SPLICE ............................PAGE 3 TRANSITION INSTALLATION ........................ PAGE 5 PANEL LEG / SKIRT PANEL ........................PAGE 6 END PANEL / BASE DOORS / FLOOR ANCHORING ................. PAGE 7 COUNTERTOP ARM / FIELD JOINT ......................
TBC’s products are warranted to be free of manufacturing defects in design, material, and workmanship. Our standard warranty is available at: http://www.tbcconsoles.com/downloads • Save time and ensure that you have not voided your warranty by engaging with a TBC’s expert installation team. •...
(4 per Splice) LEVELER Thread (6) 5/16-18 set screws 2 turns into protruding splice nuts. Insert (4) alignment pins in upper extrusions as shown above. (Repeat this step for each base assembly to be spliced) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 3...
Page 4
Align splice nuts & alignment pins to next base assembly. Carefully slide base assemblies together, and tighten the (6) 5/16- 18 set screws with 4mm hex wrench. During this process be sure to maintain a tight seam between the extrusion pieces. (Repeat this step for each base assembly to be spliced) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE...
12 of the 5/16-18 x 5/8” Button Head Screws. After this the transition top panel may be placed back in position. Step 4 Place the transition top panel back into position through the same method. This will complete the assembly. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE...
Skirt Panel Bracket Skirt Panel 1/4-20 x 1/2” Button Head Cap Screw Attach skirt panel to brackets on base frame with 1/4-20 x 1/2” button head cap screws using 4mm hex wrench. Repeat for rear skirt. PAGE 6 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE...
Wood Floor: Use #10 x 1-1/2”L screw & washer. Concrete/Metal Floor: Drill a 5/16” hole, insert toggle anchor, then use #10 x 1”L screw and washer. PAGE 7 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE...
1/4-20 x 1/2” Bolt 1/4-20 x 1/2” Bolt (2 Per Arm) (4 Per Assembly) NOTE: If the console has transitions, return to Step 3 of the Transition Assembly instructions after countertop is attached. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 9...
Insert the angled rear bottom shelf into the Rest the front of the bottom shelf While holding the open lid, remove latch hinge pin and angle lid away. rear bottom extrusion. on the front bottom extrusion. PAGE 10 TBC Consoles support@tbcconsoles.com 1-888-CONSOLE...
DROP WELL Step 1 Locate the preinstalled T-Nuts in the front extrusion. Step 2 Using the 1/4” allen key tighten both extrusion anchors into the front extrusion. Repeat this step for both support arms. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 11...
Page 12
From the rear of the console, locate the 3 holes in the bottom of the flange on the rear extrusion. Using #8 x 3/4” pan head screws secure the drop well to the rear extrusion. #8 x 3/4” Pan Head screws (3 total) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 12...
Page 13
(2) 1/4 - 20 X 2” low profile bolts per side. 1/4 -20 x 2” Low Profile Bolt (2 per arm) Step 6 Line up the (2) spacers with the holes going through the drop well and the underside of the worksurface. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 13...
Page 14
Rev. 1.4 Step 7 Secure the drop well to the worksurface using (2) 1/4 - 20 x 3.5” low profile bolts. 1/4 -20 x 3.5” Low Profile Bolt (1 per spacer) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 14...
With a helper, place the switcher wedge on the front and rear extrusions. Step 2 Secure the switcher wedge to both sides of the countertop using (6) 3” screws. 3” Screw (3 per side) TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 15...
Page 16
Step 3 Attach (2) L-Brackets to the rear of the switcher wedge using (2) 1/4 - 20 x 1/2” Low Profile bolts (per bracket) 1/4 -20 x 1/2” (2 per Bracket) Shown from under worksurface. TBC Consoles support@tbcconsoles.com 1-888-CONSOLE PAGE 16...
All specifications and other information contained in this installation guide are based on the latest product information available at the time of printing. TBC Consoles is dedicated to product improvement and therefore reserves the right to make changes to the specifications of this and other products.
