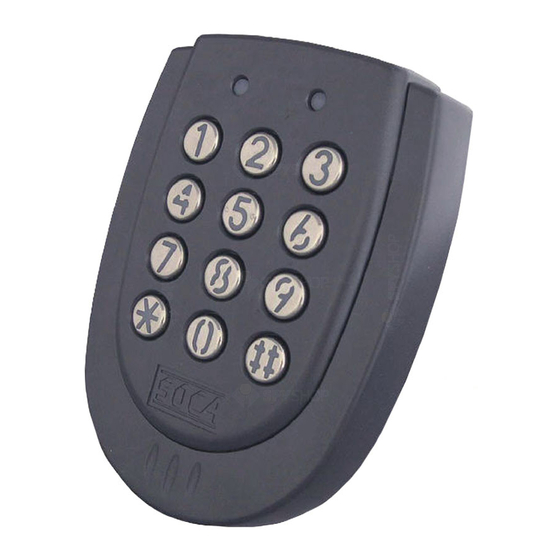

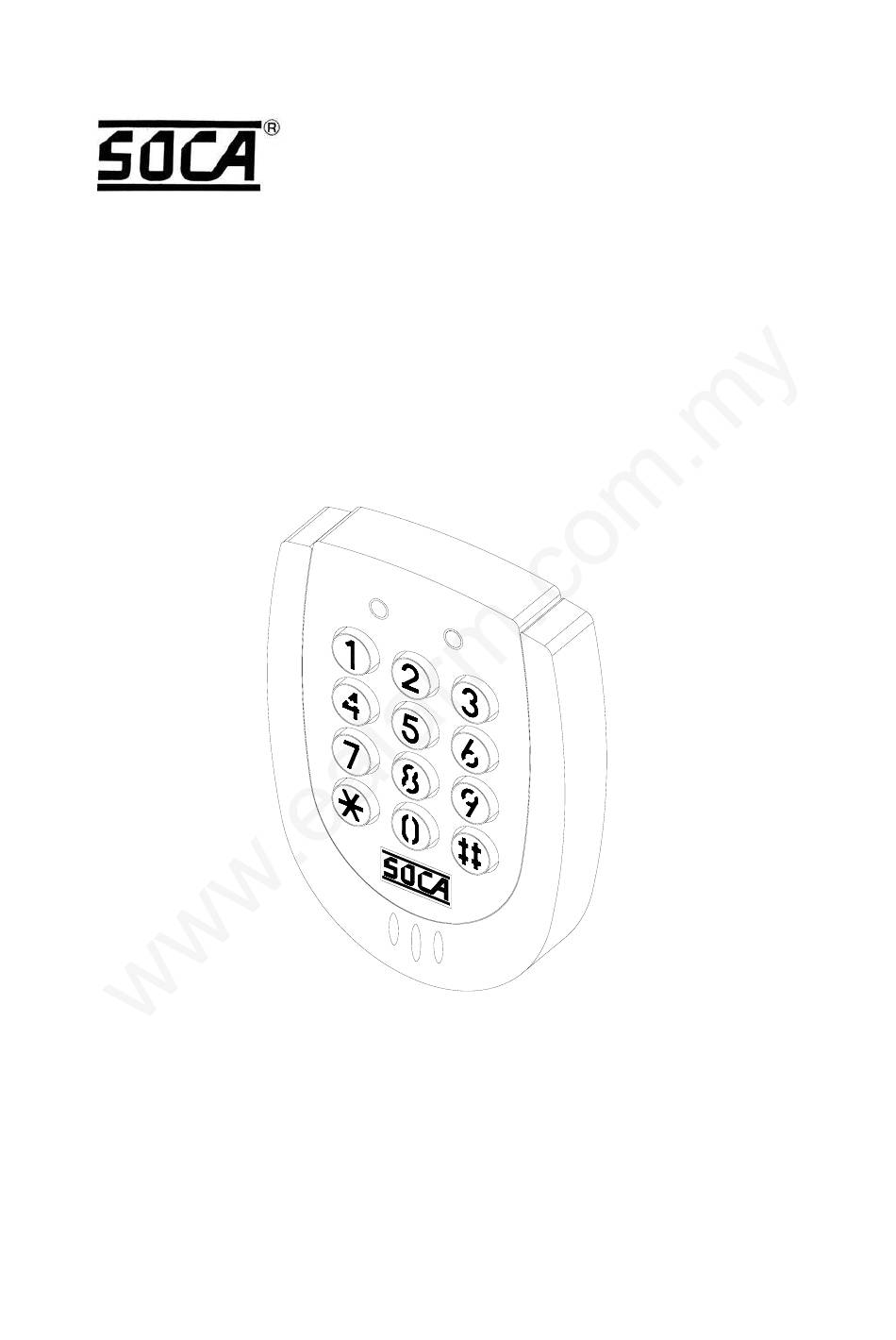

- Page 1 ST-120 WATER-PROOF PROXIMITY ACCESS CONTROL SYSTEM OPERATION AND INSTALLATION MANUAL SOCA TECHNOLOGY CO., LTD. 2004 November...
-
Page 2: Table Of Contents
CONTENTS I. SPECIAL FEATURES…………………………………………………… II. FRONT PANEL AND TYPES OF CARDS…………………………… III. INSTALLATION PROCEDURES……………………………………… IV. SETTING MODE AND FUNCTIONS…………………………………. 1. Registration of card (Add one card)………………………….…. 2. Deletion and loss of card (Delete one card)…………………… 3. Change of 8 sets of user’s passwords………………...………. 4. -
Page 3: Special Features
ST-120 Mode Setting SPECIAL FEATURES: 1. One set stand alone design. 2. After installation of proximity reader and is connected to power source, red power indicator on the front panel will light up. 3. 4 types of door opening modes: (1) Enter 4-digit door opening password, identification code is 1. -
Page 4: Installation Procedures
3. Ten enter keys, two functional keys: “#”, “ ＊ ”. # key: Confirmation key. ＊ key: Clear or escape key. External indicator light Power light (Red) OK light(Green) (optional alarm setting) Clear or escape Confirmation key . INSTALLATION PROCEDURES... -
Page 5: Setting Mode And Functions
Refer to appendix Refer to appendix (Mounting of reader unit.) (Mounting of reader unit.) Users could install either 6-pin or Users could install either 6-pin or 8-pin connector to see fit. Please refer 8-pin connector to see fit. Please refer to item 5 in installation guide on page. - Page 6 system password and press # subsequently to enter into system setting mode. When entered into system setting mode, the STATUS light (green ) on the panel will be on with a beep sound. Users should enter any functional selections within 20 seconds. The reader will automatically terminate the system setting mode function after 20 seconds.
-
Page 7: Change Of 8 Sets Of User's Passwords
On the above operation if “ ＊ ” is being pressed, the setting modes will be terminated, provided that there isn’t any key being entered. Any key-in being done prior to this operation will be deleted. 3. Change of 8 sets of user’s password: ENTER STATUS LIGHT ON “... -
Page 8: Setting Identification Modes
Setting identification modes: There are 4 sets of door-opening modes. Users could only set one of the identification modes for access control. Its identification mode has been preset to proximity card door-opening. (1) Door opening based on 4-digit password (There are a total of 8 sets of user’s password), mode number is 1. -
Page 9: Anti-Tamper Output Setting
7. Anti-tamper output setting : This reader has an anti-tamper output connecting point. There are two detection sources: (1) Damage to the proximity reader(tamper switch). (2) Damage to the door (must add detection wiring such as reed switch). This function can be set whether door detection point is applied to activate the anti-tamper output: (1) O : ON (2) I : OFF... -
Page 10: Deletion Of 8 Sets Of User's Passwords
System password has been preset at 4567. Users should enter new 4-digit system password twice to complete change of system password. 9. Deletion of 8 sets of user’s password : Please note that this function will delete all the 8 set of user’s passwords and cannot be retrieved . -
Page 11: Door Opening (Using System Password)
