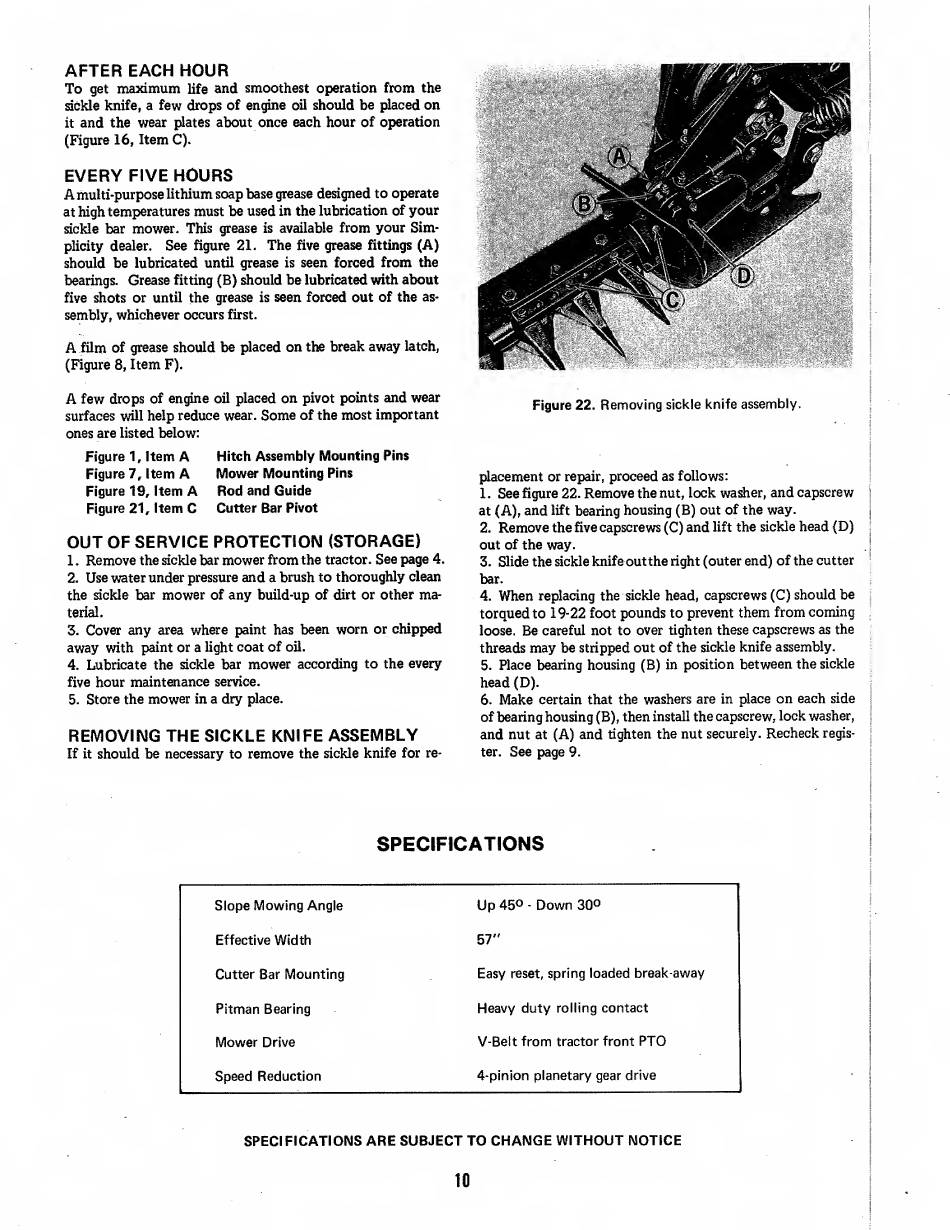

AFTER EACH HOUR
To get maximum life and smoothest operation from the
sickle knife, a few drops of engine oil should be placed on
it and the wear plates about once each hour of operation
(Figure 16, Item C),
EVERY FIVE HOURS
A multi-purpose lithium soap base grease designed to operate
at high temperatures must be used in the lubrication of your
sickle bar mower. This grease is available from your Sim¬
plicity dealer. See figure 21. The five grease fittings (A)
should be lubricated until grease is seen forced from the
bearings. Grease fitting (B) should be lubricated with about
five shots or until the grease is seen forced out of the as¬
sembly, whichever occurs first.
A film of grease should be placed on the break away latch,
(Figure 8, Item F).
A few drops of engine oil placed on pivot points and wear
surfaces will help reduce wear. Some of the most important
ones are listed below:
Figure 1, Item A Hitch Assembly Mounting Pins
Figure 7, Item A Mower Mounting Pins
Figure 19, Item A Rod and Guide
Figure 21, Item C Cutter Bar Pivot
OUT OF SERVICE PROTECTION (STORAGE)
1. Remove the sickle bar mower from the tractor. See page 4.
2. Use water under pressure and a brush to thoroughly clean
the sickle bar mower of any build-up of dirt or other ma¬
terial.
3. Cover any area where paint has been worn or chipped
away with paint or a light coat of oil.
4. Lubricate the sickle bar mower according to the every
five hour maintenance service.
5. Store the mower in a dry place.
REMOVING THE SICKLE KNIFE ASSEMBLY
If it should be necessary to remove the sickle knife for re-
Figure 22. Removing sickle knife assembly.
placement or repair, proceed as follows:
1. See figure 22. Remove the nut, lock washer, and capscrew
at (A), and lift bearing housing (B) out of the way.
2. Remove the five capscrews (C) and lift the sickle head (D)
out of the way.
3. Slide the sickle knife outthe right (outer end) of the cutter
bar.
4. When replacing the sickle head, capscrews (C) should be
torquedto 19-22 foot pounds to prevent them from coming
loose. Be careful not to over tighten these capscrews as the
threads may be stripped out of the sickle knife assembly.
5. Place bearing housing (B) in position between the sickle
head (D).
6. Make certain that the washers are in place on each side
of bearing housing (B), then install the capscrew, lock washer,
and nut at (A) and tighten the nut securely. Recheck regis¬
ter, See page 9.
SPECIFICATIONS
Slope Mowing Angle Up 45° - Down 30°
Effective Width
57"
Cutter Bar Mounting Easy reset, spring loaded break away
Pitman Bearing
Heavy duty rolling contact
Mower Drive V-Belt from tractor front PTO
Speed Reduction
4-pinion planetary gear drive
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
10
