Summary of Contents for FS KVM-IPC

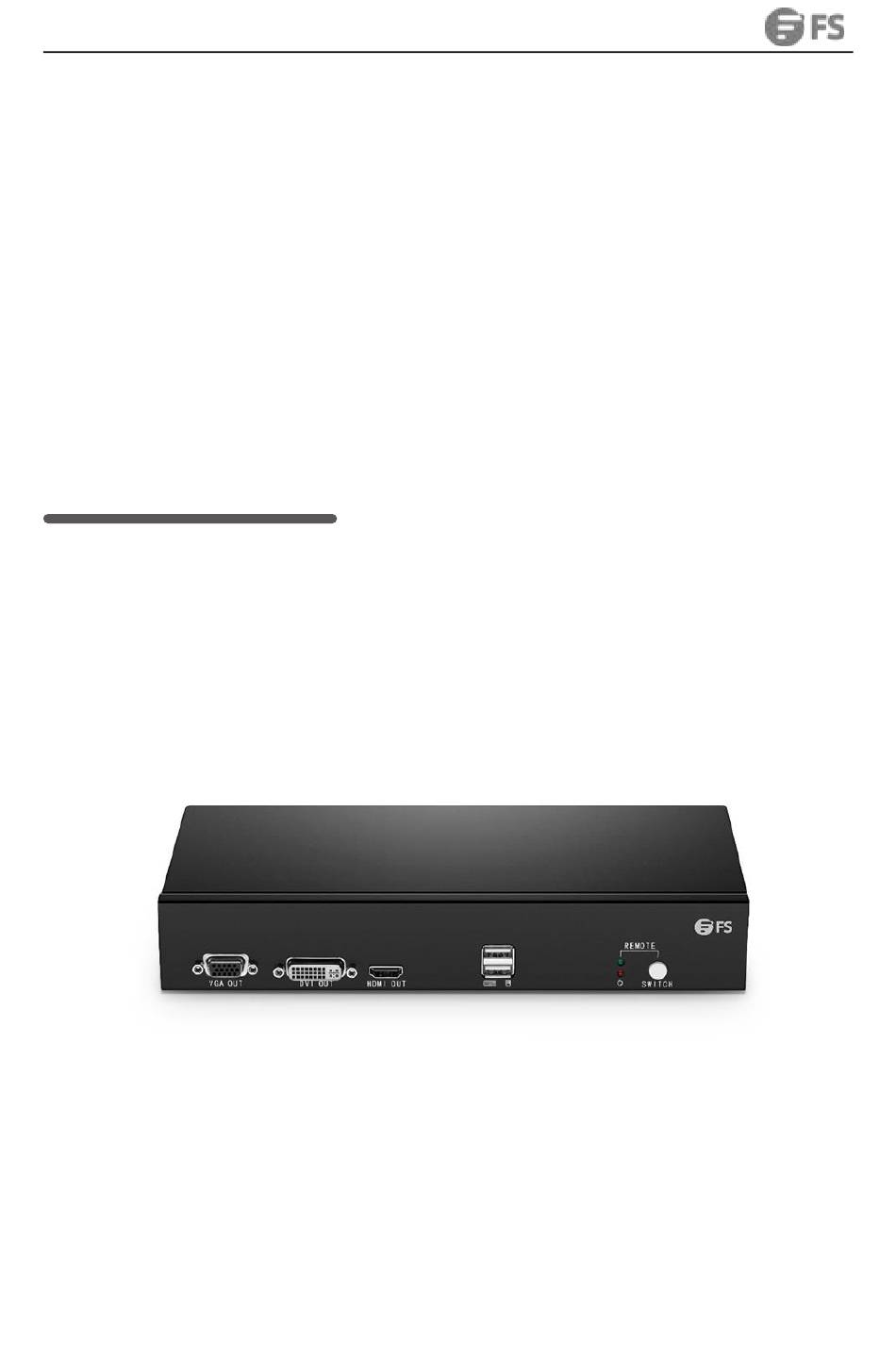

  • Page 1 KVM-IPC User Manual KVM-IPC User Manual...

  • Page 2: Table Of Contents

    KVM-IPC User Manual Content 1.User Notification..........................2 2.Introduction............................2 2.1. Introduction..............................2 2.2. Product Features............................2 2.3. Structure................................3 2.3.1 Appearance Dimensions......................... 3 2.3.2 Front View ..............................4 2.3.3 Rear View ................................4 3. Installation............................5 4. Operation............................. 5 4.1. Mode Selection.............................. 5 4.2. Network Settings............................6 4.3.

  • Page 3: User Notification

    KVM-IPC User Manual 1.User Notification All information, documents and specifications contained in this manual are subject to change without prior notice. The manufacturer makes no express or implied representations or warranties about the contents of this document, especially the merchantability or suitability for any specific purpose.

  • Page 4: Structure

    KVM-IPC User Manual still guarantee the mouse, keyboard and monitor of the server are in active state. Provide a variety of fast and accurate mouse synchronization modes, which are responsive and  can automatically synchronize the local and remote mouse movement positions, thus improving the accuracy of the administrator's management operations.

  • Page 5: Front View

    KVM-IPC User Manual 2.3.2 Front View Number Explanation Display output USB keyboard and mouse interface Power indicator and switching indicator Switching button 2.3.3 Rear View Number Explanation Series port LAN interface USB input (connected to host) DVI input (connected to the host)

  • Page 6: Installation

    KVM-IPC User Manual 3.Installation Installation Diagram Before installation, please make sure that all the devices to be connected are powered off. 1)Connect the monitor (Figure ①), USB keyboard and mouse (Figure ②) to the CONSOLE port of local device. 2)Connect the server to the terminal control box through VGA or DVI signal cable (Figure ③) 3)Connect the server to the terminal control box through USB signal cable (Figure ④).

  • Page 7: Network Settings

    KVM-IPC User Manual divided into client mode and server mode. Client mode allows you to manage IPK301 terminal control box in LAN, while server mode allows you to manage IP KVM in LAN. You are allowed to choose the appropriate mode according to your actual situation.

  • Page 8: Login

    KVM-IPC User Manual 4.3 Login 4.3.1 Client Mode Login IP address of KCMS server in LAN ( if KCMS is not installed, enter 0.0.0.0) User: admin Password: admin Local switch: switch to the server connected to IPK301. 4.3.2 Server Mode Login...

  • Page 9: Remote Access To Ip Kvm

    KVM-IPC User Manual 4.4 Remote access to IP KVM Click Search Device to search IP KVM devices in LAN, after entering the main interface of management. Select one IP KVM, then click the right mouse button, the Add option will be appeared. Then click...
  • Page 10 KVM-IPC User Manual Click on one of the IP KVM you want to access, and the port list of that IP KVM will pop up. Then click on the connected port for remote access. Note: The gray port indicates that the port is not connected. Right-clicking the port to edit port name.
  • Page 11 KVM-IPC User Manual Mouse Mode Selection Relative mode: Relative mouse has the highest compatibility, basically supporting all operating systems, and this mode is the factory default setting . Absolute mode: The absolute mouse mode is available only on some servers. Servers with WINDOWS series systems basically support absolute mouse, while LINUX system does not support it.

  • Page 12: Basic Functions

    KVM-IPC User Manual 5. Basic functions 5.1 User Management User management interface: list all registered users. Find users: Enter the user name in the search box to list the corresponding user names. This function is pretty practical when there are a large number of users.

  • Page 13: Network Settings

    KVM-IPC User Manual 5.2 Network Settings IP Address: Preset IP address. Subnet mask: Generally, it should be consistent with other devices in the network. Gateway: It should be consistent with other devices in the network. MAC address: Physical address 5.3 Factory Resetting.

  • Page 14: Log

    KVM-IPC User Manual 5.4 Log You are allowed to view the corresponding log after setting the date and type. 5.5 Restart the Equipment Click check box for restarting equipment, and click "Yes" to restart the device.

  • Page 15: Time Setting

    KVM-IPC User Manual 5.6 Time Setting Set the system time User-specified time: The user set the time manually. Synchronization with NTP server: the system automatically updates the time according to the time server. 5.7 Equipment Upgrade Click equipment upgrade to pop up the file selection interface, select the corresponding upgrade file...

  • Page 16: Technical Specifications

    KVM-IPC User Manual 6. Technical specifications Model IPK301 Server connections Keyboard USB Type A Console Mouse USB Type A Monitor VGA、DVI、HDMI Connector Network 1x 1000Mbps Keyboard, 1x USB Type B mouse show 1x VGA and 1x DVI Local: 2048 x1536 @60Hz...
