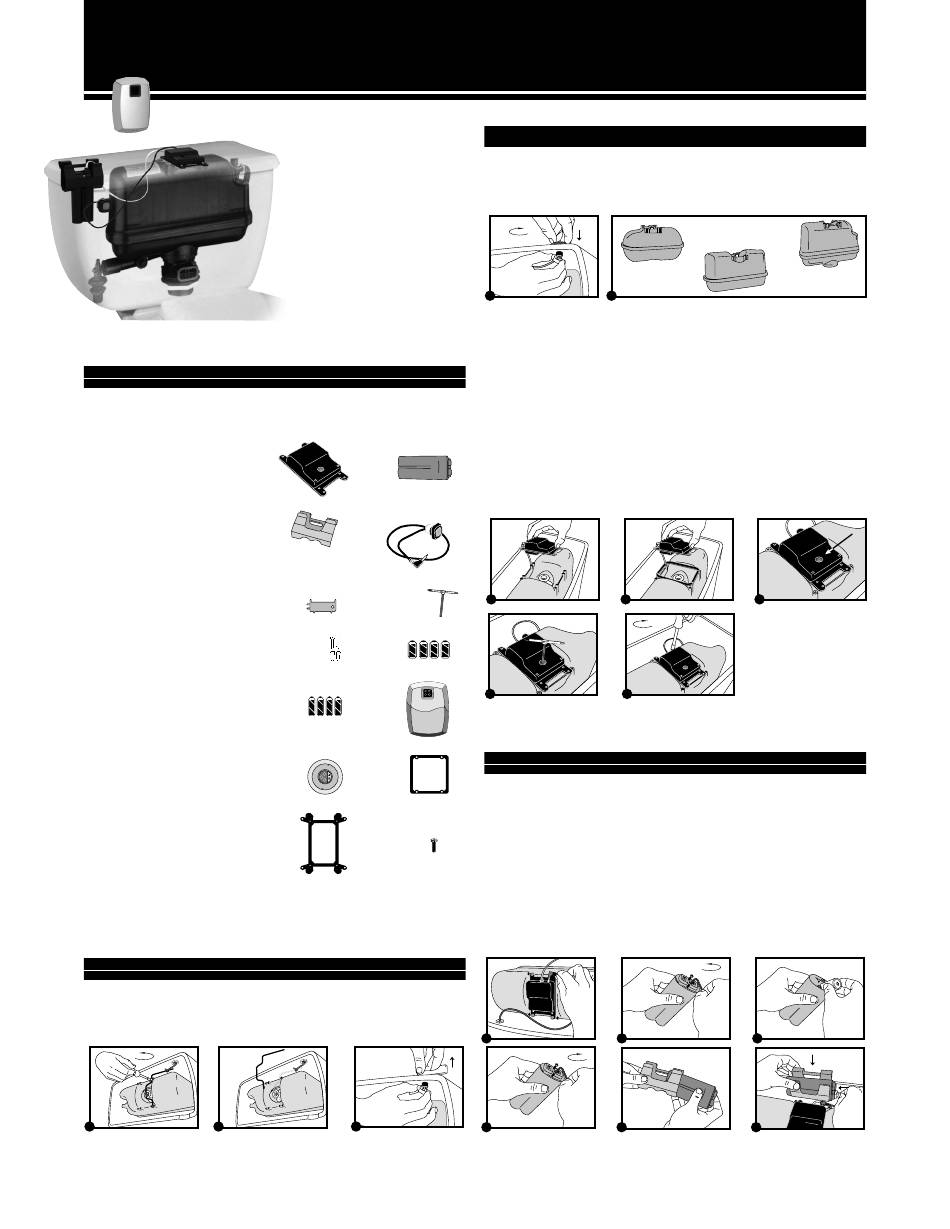

COMPONENTS
Tools Required: Philips and slotted screwdriver, pliers, ruler and
1-3/4" hole saw for In-Wall
A) Flush Module
B) Battery Pack
C) Battery Holder
D) Over-Ride Button
E) Cover Key
F) T-Wrench/Depth Gauge/
Sensor Tool
G) Screws & Anchors (2)
H) C-cell Alkaline Batteries (4)
I) AA-cell Alkaline Batteries (4)
J) On-Wall Sensor
K) In-Wall Sensor
L) Adapter 504
M) Adapter 501-B
N) Mounting Screws (8)
The Sensor and Flush Module contained within this kit have been programmed to work together and should not be
switched with similar components from other kits.
STEP #1
1) Remove retainer clips, (image 1), flush rod, (image 2), and handle,
(image 3). (Note: reverse threads on handle.)
1
2
FLUSHMATE
®
INTELLI-Flush
™
AUTOMATIC FLUSHING SYSTEM
Installation Instructions
MODEL# K-100
Sloan FLUSHMATE • 30075 Research Drive. • New Hudson, MI 48165
Phone: (248) 446-5300, 800-533-3450, www.flushmate.com
A
B
C
D
E
F
G
H
I
J
K
L
M
N
x8
3
STEP #2
1) Install Over-Ride Button (D), (image 4). Identify appropriate Adapter
(L or M) if needed, (image 5).
501B
Adapter Needed
4
5
2) Place Flush Module (A) in position over Actuator (image 6). (Actuator is the
centered white disk with Philip screw in center.) If using Adapter, (image 7)
note the positioning of the Flush Module (A) wire, (image 6 & 7).
3) Insert T-wrench/Depth Gauge/Sensor tool (F) in hole of Flush Module (A),
(image 8). Adjust Actuator by loosening set screw and turning Actuator to
proper height according to depth gauge, so that yellow ring on depth
gauge aligns with top of Flush Module (A), (image 9). Tighten set screw
on Actuator.
4) Attach the Flush Module (A) with (4) screws, (image 10). For the 501-B
Adapter (M), (8) screws are required.
6
7
9
10
STEP #3
1) Plug Over-Ride Button (D) wire into Flush Module (A), (image 11)
2) Remove cover on Battery Pack (B), (image 12). Install batteries, (image
13), noting the battery polarity (+/-) printed on pack. Reinstall cover on
Battery Pack (B), (image 14). Place Battery Pack (B) in Battery Holder (C),
(image 15). Hang Battery Holder (C) on top edge of china tank and
connect the Flush Module (A) wire into the Battery Pack (B). Slide rubber
boot over connection, (image 16). (Using the Battery Holder (C) is
optional. If there is ample space, you can place it anywhere in the tank as
long as the wire is not being stretched.)
11
12
14
15
503
No Adapter
504
Adapter Needed
8
13
16
Advertisement
Related Manuals for Sloan FLUSHMATE INTELLI-Flush K-100
Summary of Contents for Sloan FLUSHMATE INTELLI-Flush K-100
- Page 1 501B Adapter Needed Adapter Needed Sloan FLUSHMATE • 30075 Research Drive. • New Hudson, MI 48165 Phone: (248) 446-5300, 800-533-3450, www.flushmate.com 2) Place Flush Module (A) in position over Actuator (image 6). (Actuator is the centered white disk with Philip screw in center.) If using Adapter, (image 7) note the positioning of the Flush Module (A) wire, (image 6 &...
- Page 2 Consumer Services toll free (USA, CANADA, and MEXICO) 800-533-3460 or write to us at: FLUSHMATE ® A Division of Sloan Valve Company, ISO 9001 Quality System Certified, 30075 Research Drive, New Hudson, MI 48165 U.S.A., 800-533-3460, 248-446-5300, www.flushmate.com ©FLUSHMATE Division • PATENT PENDING • MADE IN TAIWAN FLU6148...
Need help?
Do you have a question about the FLUSHMATE INTELLI-Flush K-100 and is the answer not in the manual?
Questions and answers
intelli flush not working. Changed batteries on battery pack and wall sensor but does nothing.
If the Sloan K-100 Intelli-Flush is not working after changing the batteries, possible issues could include:
1. Incorrect battery polarity: Batteries may not be installed following the (+/-) markings on the battery pack. Recheck polarity.
2. Loose connections: Ensure the Over-Ride Button wire is plugged into the Flush Module and the Flush Module wire is connected to the Battery Pack.
3. Sensor obstruction or misalignment: Remove any object covering the sensor and adjust the sensor range if it's registering unwanted objects.
4. Sensor cover not reinstalled properly: Ensure the rubber cover is reinstalled on the On-Wall Sensor.
5. Use of non-alkaline batteries: Only alkaline batteries are supported. Replace if incorrect types were used.
Check all these conditions to restore proper function.
This answer is automatically generated
