Summary of Contents for CD Automation KPRC

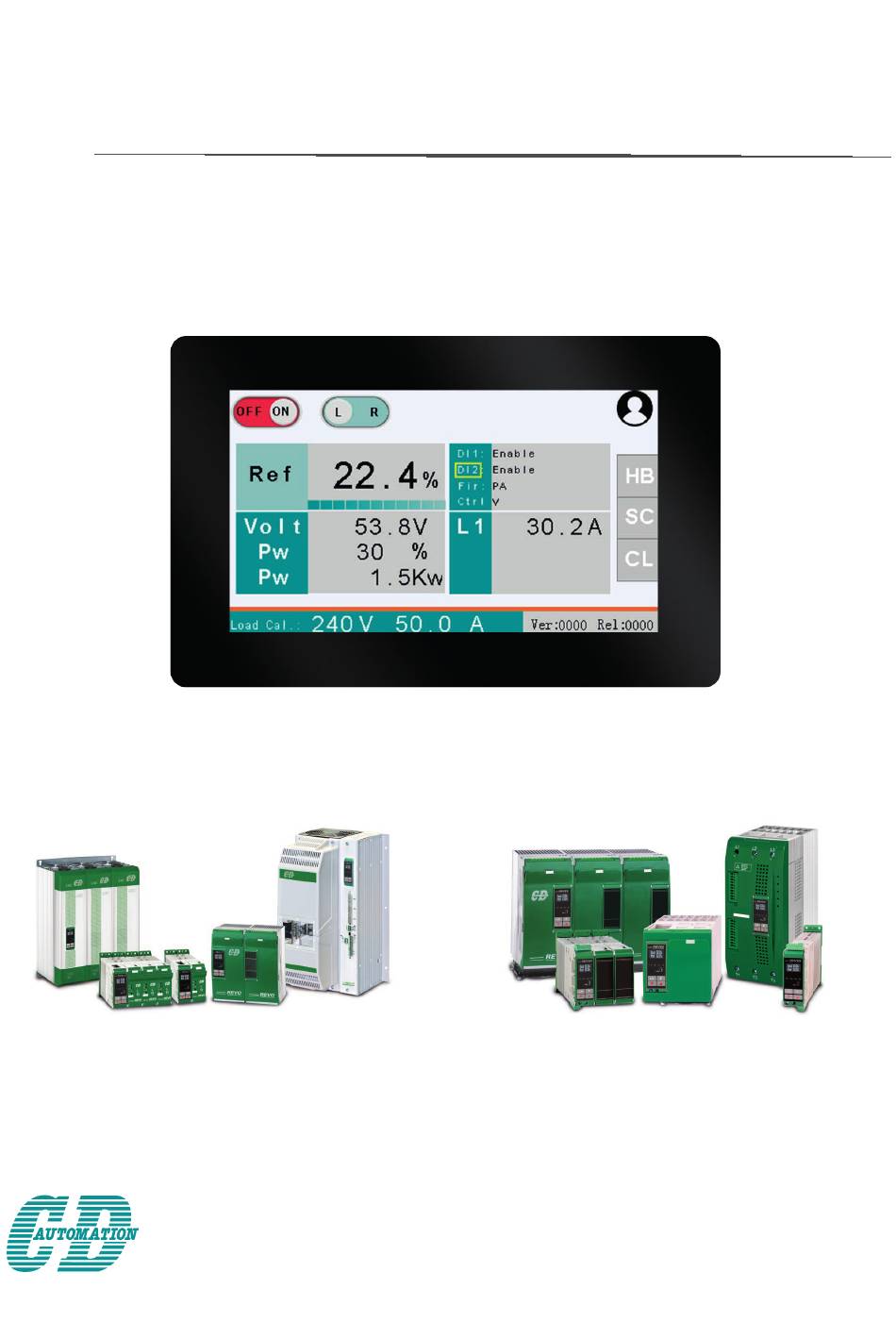

- Page 1 USER’S MANUAL Rev. 11/2023 KP operator panel M-KPRC Operative Display for REVO C and REVEX Series CD Automation S.r.l. Via Picasso, 34/36 - 20025 Legnano (MI)- Italy Tel. +39 0331 577479 - Fax +39 0331 579479 E-mail: info@cdautomation.com - Web: www.cdautomation.com...
-
Page 2: Important Warnings For Safety
User’s manual KPRC Panel Important warnings for safety The unit are integral part of industrial equipments. When it is supply, the unit is subject to dangerous tensions. Don’t remove the plastic cover. Don’t use this unit in aerospace and nuclear application. -
Page 3: Return Material Authorization (Rma)
User’s manual KPRC Panel Warranty condition Producer gives a 12 months warranty to its products. The warranty is limited to repairing and parts substitution in our factory and does exclude products not properly used and fuses. Warranty does not include products with serial numbers deleted. The faulty product should be shipped to Producer at customer’s cost and our Service will... -
Page 4: Table Of Contents
User’s manual KPRC Panel Summary Important warnings for safety ......2 Introduction........5 Features . -
Page 5: Introduction
User’s manual KPRC Panel Introduction The Revo C or Revex have several values available on the serial port that are useful for understanding whether a process is behaving correctly. The KP Panel is used to display these values graphically and easily readable. -
Page 6: Connections
User’s manual KPRC Panel Connections G. GND (0V) B. RS485 - (B) A. RS485 + (A) T. Not used R. Not used V. Power Supply 24Vdc Terminal G-V: Power Supply 24Vdc (6.0-26.0V), 80mA Terminal B-A: RS485 MODBUS RTU Master connection with REVO C... -
Page 7: Dimensions
User’s manual KPRC Panel Dimensions Dimensions: front: width 138 mm, height 97 mm, frame thickness 5 mm perforation: width 127 mm, height 85 mm - depth rear 15 mm 5 mm 138 mm 97 mm 85 mm 127 mm 15 mm Installation Before installation, ensure that the product has not been damaged during transport. -
Page 8: Main Page
User’s manual KPRC Panel Main page As soon as it is switched on, the main screen appears, where the operating functions can be viewed and managed. Enable/Disable Local/Remote Login button General informations Reference Local from AI Heater Break Remote from RS... -
Page 9: Reference "Ref
User’s manual KPRC Panel 7.3. Reference “Ref” Input control percentage to unit NOTE: this parameter can only be changed by tapping the number if the L/R button is set to “R”. 7.4. “General Informations” area This area shows the status of some basic functions of the unit... -
Page 10: Login Page
User’s manual KPRC Panel Login Page By logging in, it is possible to access the EXPERT level and thus set password-protected data. To access the EXPERT level, tap the icon in the top right-hand corner to bring up the keyboard. -
Page 11: Trend Page
User’s manual KPRC Panel Trend Page Tap on the measures to enter the trend pages. The first page represents the values of Reference, Voltage at Load and Current at Load Tapping ‘Next’ takes you to the page with Reference, Voltage and Power %. - Page 12 CD Automation S.r.l. Via Picasso, 34/36 - 20025 Legnano (MI)- Italy Tel. +39 0331 577479 - Fax +39 0331 579479 E-mail: info@cdautomation.com - Web: www.cdautomation.com...
