- Page 1 S24-074 Coffee Grinder Board Instruction Manual...
-
Page 2: Hazard Intensity Levels
Thank you for purchasing our CCG, Control board for the Coffee grinder. This manual contains instructions for the mounting, functions, operations, and notes when operating the CCG. To ensure safe and correct use, thoroughly read and understand this manual before using this instrument. - Page 3 ▪ This board is intended to only be used for the espresso coffee machine control board. Do not use it for any other purpose. PRECAUTIONS ❖ Installation precautions Read thoroughly the following conditions before installing the CCG board on the coffee machine. The mounting location must be: ▪ No flammable, explosive gases ▪...
- Page 4 S24-074 ▪ Ensure the board surface is completely dry before powering. ▪ Periodic cleaning will reduce the risk of damaging the board.
-
Page 5: Table Of Contents
S24-074 *** CONTENTS *** GENERAL ......................1 Introduction ......................1 II. TECHNICAL SPECIFICATIONS ..............1 Dimensions (mm) ....................1 Specifications ...................... 1 III. WIRING ......................... 2 IV. PROGRAMMING AND USE ................3 Automatic grinding ....................3 Manual grinding ....................4 Programming the grinding time ................ -
Page 6: General

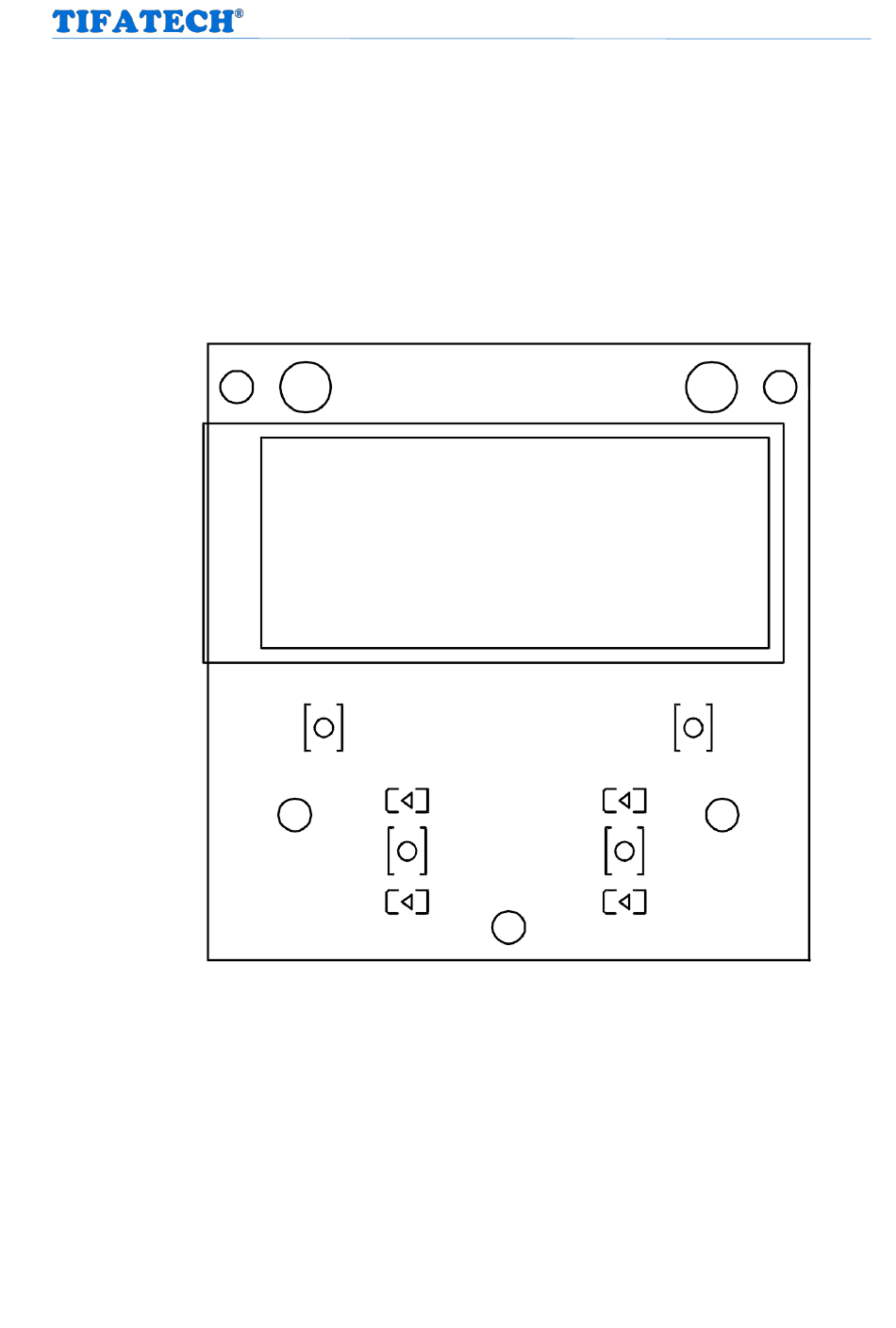

GENERAL 1. Introduction ▪ This manual contains important instructions regarding the safe intended use of the machine. ▪ If any damage or loss to this manual, request a copy from the TIFATECH manufacturer. II. TECHNICAL SPECIFICATIONS 1. Dimensions (mm) 2. Specifications ❖... -
Page 7: Wiring
S24-074 III. WIRING Important: Any mistake in connecting actuators will affect the normal operation of the coffee machine, and even cause damage. Terminal Description MOTOR Motor input AC(L), AC(N) Power supply... -
Page 8: Programming And Use
S24-074 IV. PROGRAMMING AND USE 1. Automatic grinding Press the single dose key or double dose key to start grinding coffee. The display will show the icon of the selected dose and its grinding time accordingly. When the grinding time of the concerned key counts down to zero, the grinding process will automatically stop. -
Page 9: Manual Grinding
S24-074 2. Manual grinding Press and hold the single dose key or the double dose key start grinding coffee and release when the desired amount of coffee has been reached. 3. Programming the grinding time ❖ Single dose key: Step 1: Press and hold the key until the display shows as below: Step 2: Pressing the key to increase or the key... -
Page 10: Granulometry Adjustment
The preset grinding time for dose keys will also be automatically updated based on the current granulometry level. TIFATECH Co., Ltd Address: 14 Tran Tu Binh Street, Hoa Chau Ward, Hoa Vang District, Da Nang City, Vietnam Email: tifatech@tifatech.vn...
