Summary of Contents for Volumio Streamplay

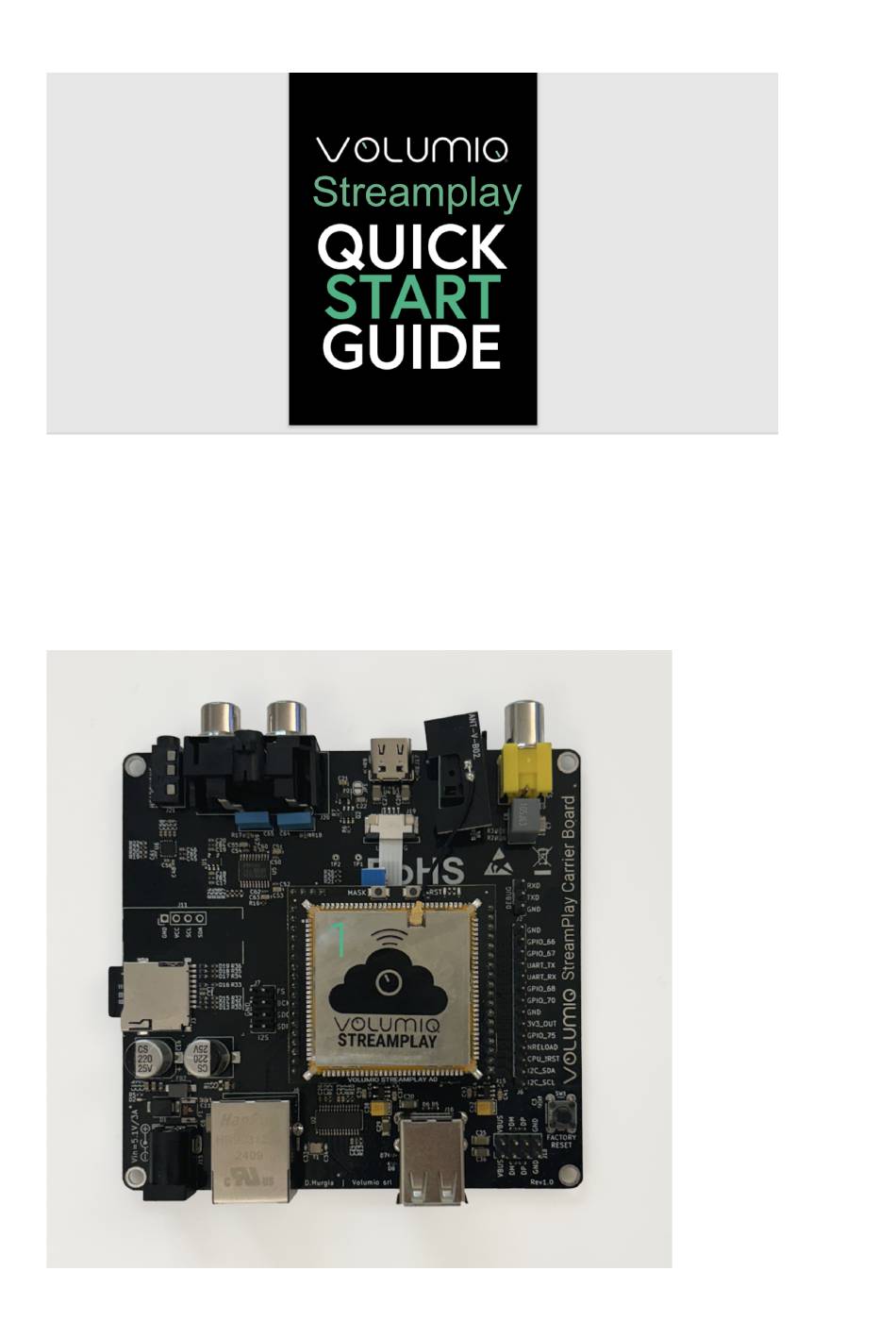

- Page 1 Volumio Streamplay Quick Start Guide Hardware Overview TOP VIEW...
-
Page 2: Back View
N. 1 ● StreamPlay Module Sockets: Pay attention when inserting or removing the StreamPlay Module from its socket to avoid bending pins. BACK VIEW N. 2 Barrel Jack DC Input (5V/3A, 5.5mm outer diameter, 2.1mm inner diameter): Main power input for the board; ensure the power supply matches these specifications. -
Page 3: Front View
FRONT VIEW N. 6 ● SD-card Interface: Provides additional storage space. Note: Label the SD card as “ISSD” to be recognized by the system. N. 7 ● S/PDIF Coaxial Output: Digital audio output option for connecting to external audio equipment. N. - Page 4 N. 9 ● USB OTG Type C Connector (Power Input 5V + Data): Secondary power input option with data transfer capabilities. N. 10 ● Stereo Line-out Analog Output (RCA, 2.1V RMS): Connect to an amplifier or powered speakers N. 11 Stereo Headphone Amplifier Output (3.5mm Jack): Connect headphones...
- Page 5 N. 12 ● GPIO Interface (2.54mm pitch connector): For general-purpose input/output connections, expandability, and custom applications. N. 13 ● Factory-Reset Push-Button: Restores the device to its factory settings. OS must be fully booted N. 14 ● I2S Interface (2.54mm pitch connector): Direct audio signal path for connecting digital audio components.
- Page 6 Ethernet Option: Plug your Ethernet Cable (not mandatory, but suggested), connect Streamplay to the router, otherwise you can use WI-Fi connection as alternative (it’s automatically enabled) 1. Apply Power: Plug into either the barrel jack or the USB Type C port for power.
- Page 7 3. Download the Volumio App on Your Smartphone/Tablet: Available on both iOS and Android platforms. If you are connected via Ethernet you will see this screen: 4. Click on Streamplay and perform the Initial Wizard Setup: Follow on-screen instructions to complete the initial setup.
- Page 8 If you are connected via WiFi : Click on the Button “Configure a New Device”: Open the Volumio app and select this option to start configuring your Streamplay device. 5. Click on the Button “Wireless”: Follow the on-screen instructions to connect your device to your wireless network.
- Page 9 - Grant access permission to the Volumio hotspot Select your preferred Network:...
- Page 10 Starts your the Configuration Wizard:...
- Page 11 Follow all the steps of the configuration Wizard until you’re done and let’s get started! 6. Play Some Music! Start exploring and enjoying your audio experience with Volumio Streamplay. ● Sales Inquiries: Contact our sales representatives for additional information or to request more documentation, get in touch at support@volumio.org...
