Product:
Sentinel Plus Press Brake Guarding System
Description:
Sentinel Plus XL – Option for long press brakes
The Sentinel Plus XL option is now available for long press brakes with the optical range extended from 8
meters to 15 meters (net distance between the transmitter and receiver). The Sentinel Plus XL option
substitutes the LZS-005-XL transmitter and receiver in place of the LZS-005-R.
Installation:
The M12 cables and wiring of the LZS-005-XL to the PGS-3 controller is the same as the LZS-005-R. During
installation, the PGS-3 requires dedicated FPGA software for the Sentinel Plus XL option. If you order a
complete Sentinel Plus XL system, then the PGS-3 will be pre-loaded with the required software. Otherwise,
the FPGA software will need to be loaded during installation. Refer to the Sentinel Plus installation manual or
contact customerservice@lazersafe.com
Specifications:
Transmitter / Receiver set
Object detection resolution
Minimum speed change point
External dimensions of TX / RX
+61 8 9249 4388
+61 8 9249 6011
ENGINEERING CHANGE PUBLICATION

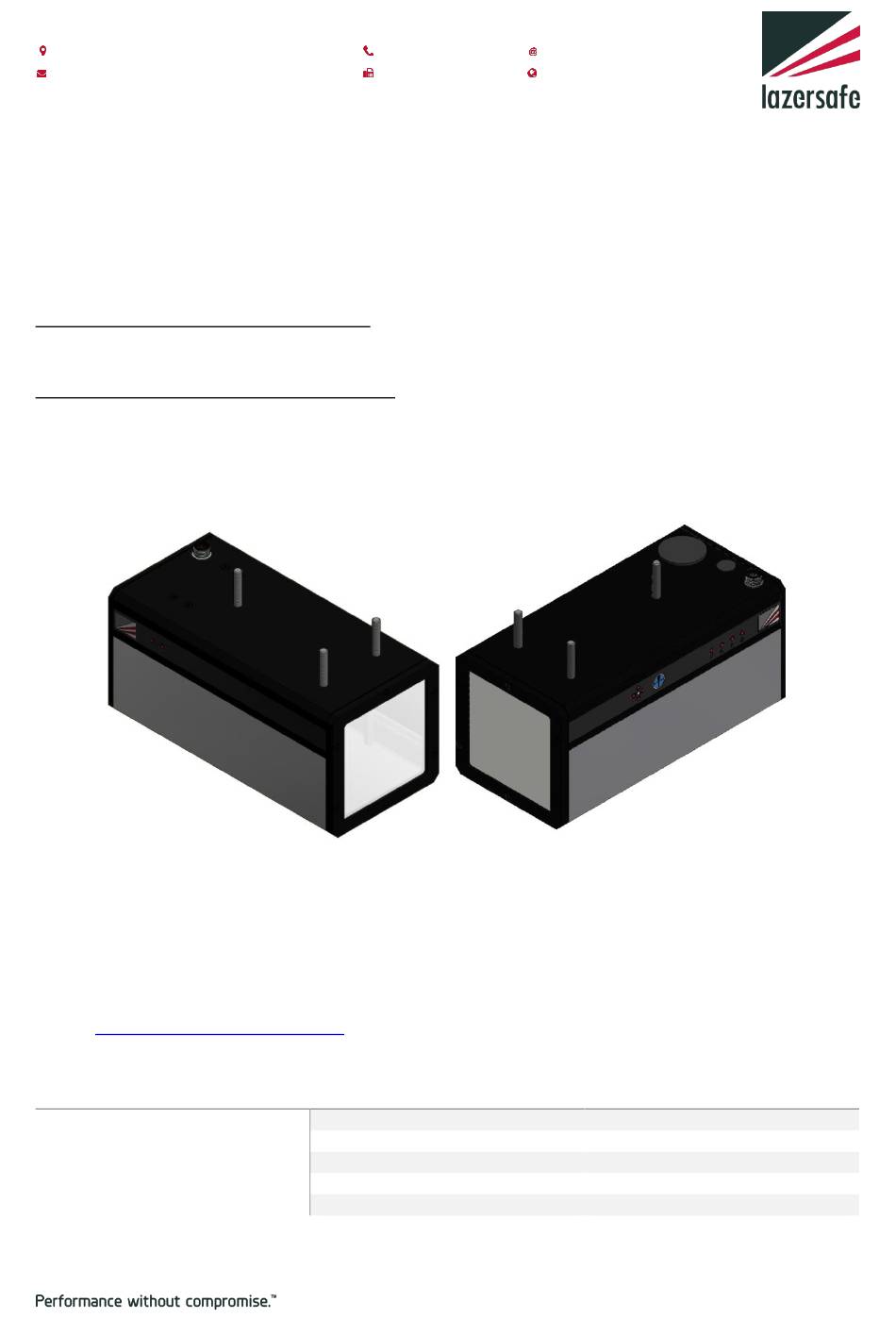

LZS-005-XL Transmitter & Receiver
for further details.
Optical range
218mm (L) 100mm (W) 76mm (H)
info@lazersafe.com
www.lazersafe.com
Sentinel Plus
LZS-005-R
8 meters
2.0mm
2.0mm
Sentinel Plus XL
LZS-005-XL
15 meters
3.0mm
14.0mm
218mm (L) 102mm (W) 104mm (H)
