Instruction Manual

Floor Edger

207-FE

DXAS07127A

Operator's Manual

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-334-2248

Table of Contents

Need help?

Do you have a question about the 207-FE and is the answer not in the manual?

Questions and answers

Summary of Contents for DeWalt 207-FE

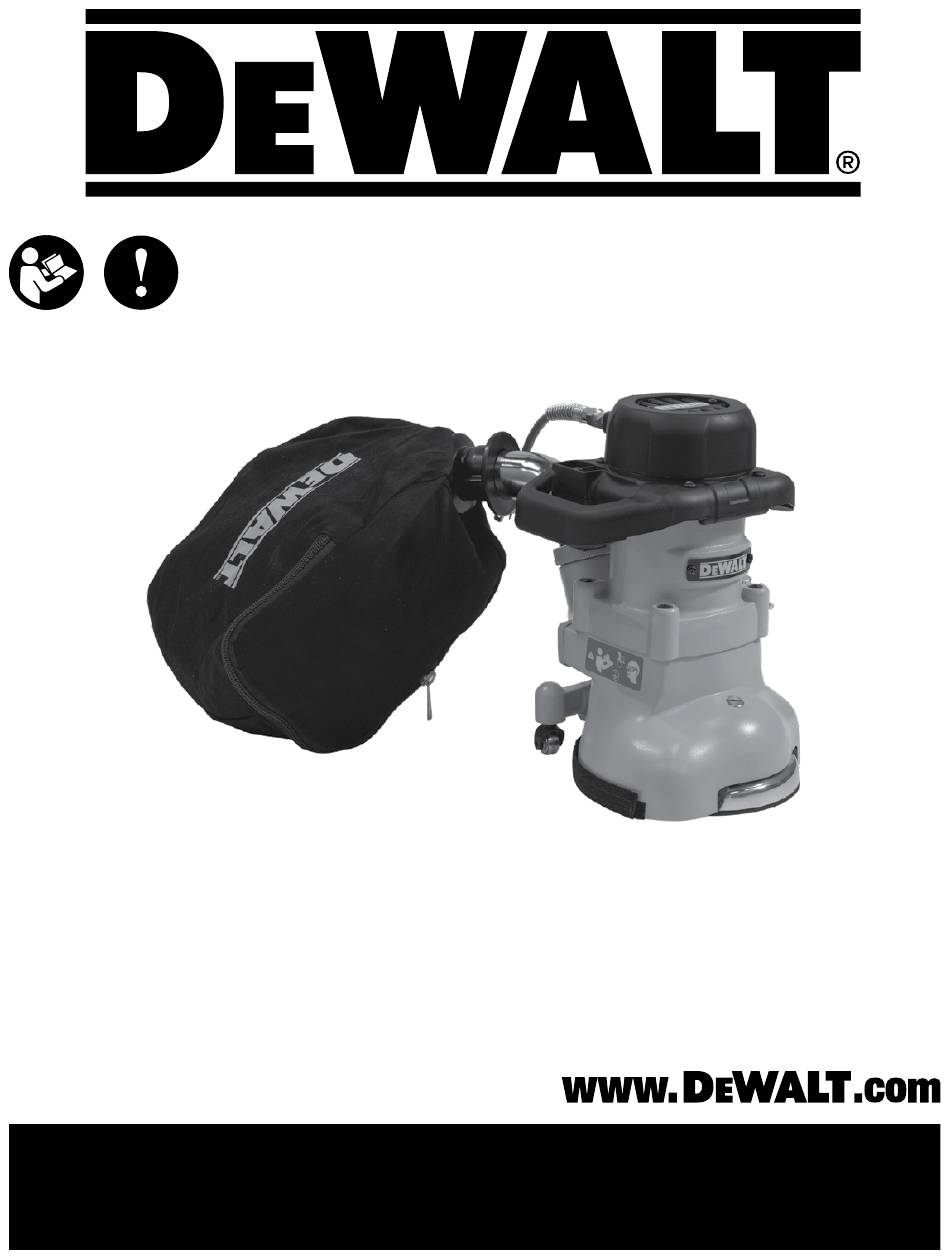

Page 1 Instruction Manual Floor Edger 207-FE DXAS07127A Operator’s Manual If you have questions or comments, contact us. Pour toute question ou tout commentaire, nous contacter. Si tiene dudas o comentarios, contáctenos. 1-800-334-2248...
Page 2: Table Of Contents
ENGLISH WARNING: READ AND UNDERSTAND THE MANUAL PRIOR TO USING PRODUCT KEEP THIS MANUAL FOR FUTURE REFERENCE. This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to this machine could result in injury to you or to other personnel;...
Page 3 DANGER: Failure to read the Owner’s Manual prior to operating or servicing your DEWALT machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it.
Page 4: General Power Tool Safety Warnings
ENGLISH GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings and instructions. Failure to follow warnings and instructions may result in electric shock, fire and or serious injury. Save all warnings and instructions for future use. The term "power tool" in the warnings refers to your main-operated (corded) power tool or battery operated (cordless) power tool. 1) Work area safety Keep work area clean and well lit.
Page 5 ENGLISH Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping flying debris generated by various operations. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtering particles generated by your operations.
Page 6: Introduction
The DeWalt 207-FE is specifically designed for finishing floor edges, stairs, and other hard-to-reach surfaces. The handle location and low center of gravity make the DeWalt 207-FE easy to operate. The excellent cutting power comes from a powerful universal type motor. A motor that delivers maximum performance without slowing down or overheating.
Page 7: Extension Cords (120V)
ENGLISH EXTENSION CORDS (120V) Use only an approved extension cord with three conductors, a plug with three terminals, and a connector body with three holes. WARNING: If you use an extension cord, use an extension cord with minimum wire size 12 AWG. Do not use an extension cord longer than 50 feet. Do not join two extension cords.
Page 8: Machine Setup
ENGLISH MACHINE SETUP This sanding machine is designed to be operated with a remote 2˝ (5 cm) vacuum dust collection system or with the included dust bag. Hose from 1.5˝ (3.8 cm) vacuum system Hose from vacuum (not included) system (not included) Preparing Remote Vacuum Dust Collection Systems To prepare the machine for remote vacuum dust collection systems that have a 2˝...
Page 9 ENGLISH MACHINE SETUP How to Install the Sandpaper NOTE: Use a sandpaper disc that has a 7" diameter and a 7/8" hole in the center. 1 Put the machine upside down. 2 A special wrench is in the bracket on the side of the machine. Use the special wrench to remove the screw and washer from the center of the sanding pad.
Page 10: Operating Instructions
ENGLISH OPERATING INSTRUCTIONS WARNING: Failure to remove the electrical plug from the electrical outlet before attempting any service or maintenance could result in electrocution or severe injury. Always unplug the machine before attempting any service. Never leave machine unattended while plugged in. To operate the machine follow this procedure: Move the machine to the location of your work.
Page 11: Maintenance
Maintenance and repairs performed by unauthorized personnel will void your warranty. Servicing of these units must always be referred to an authorized DeWalt distributor. The Dust Control System Remove the dust from the bag when the bag is 1/3" full or when the efficiency of the dust control system decreases.
Page 12 5. Remove the cover from the gear housing. 6. Remove the old lubricant from the gearbox. 7. Add ten ounces of DeWalt lubricant to the gearbox. CAUTION! To prevent damage to the motor, do not add more than ten ounces of lubricant to the gearbox.
Page 13 ENGLISH MAINTENANCE How To Check The Carbon Brushes (continued) Inspect the carbon brushes. Replace both brushes if either brush has worn to 3/8" in length, or is worn to the wear indicator. See Figure 12. To replace the brushes, disconnect the field wire (A) from the brush holder (B).
Page 15: Wiring Diagram
WIRING DIAGRAM RF094200 092623...
Page 16 GENERAL, 207FE RF093900 022624...
Page 17 21078B ADAPTOR EXHAUST DEWALT 34233A GASKET-DISCHARGE PIPE 42234A CORD SET SUPER 7E 61858A CLIP TOOL HOLDER AS128900 CAP, SCREEN, 207-FE 70175A TAG WARNING ENG-FRN AS124900 DECAL, WARNING, POWER TOOL AS124500 PLATE, ALUM., DEWALT LOGO 962957 SCEREW, HI-LO, 10-16 X 1/2...
Page 18 MOTOR, HOUSING, 207FE RF094000 022624...
Page 19 MOTOR, HOUSING, 207FE Item Ref. No. Description Qty. 902550 BEARING BALL-6203 AS124200 HOUSING, GEAR, 207-FE AS124300 HOUSING, MOTOR, 207-FE 38103A SEAL-DUST 52853A SKIRT 58113A SEALOIL-0.984 X 1.575 X 0.276 10111B ARMATURE AS126000 FIELD, 115V, 207-FE 40583A BRUSHC 40717A HOLDERBRUSH B-2 EDGER...
Page 20 GEAR HOUSING, 207FE RF094100 022624...
Page 21 GEAR HOUSING, 207FE Item Ref. No. Description Qty. 10212A WHEEL & YOKE ASM 21106B BRACKET CASTER DEWALT 34232A GASKET-GEAR CASE COVER 12906A COVER ASM-GEAR CASE 15000A GUARD ASM-ROLLER 21067A DISC SANDING 56382755 DISC 7 SANDING 25 PER CS SOLD 66130A PLUG-GEAR HSG.
Page 22 HANDLE ASSEMBLY, 207-FE RF095000 022624...
Page 23 Description MP488700 BREAKER, CIRCUIT, THERMAL, 250 AS114400 COVER, LENS, 207-FE AS114500 LENS, LED AS124600 LED, 207-FE AS123700 PLATE, COVER, WIRING, 207-FE AS123900 HARNESS, WIRING, 207-FE AS124000 WIRE, JUMPER, BLACK, 207-FE AS124700 HANDLE , 207-FE AS114600 COVER, WIRING, 207-FE AS123800 CORD POWER 14-3 115V PIGTAIL...
Page 24: Warranty
Credit will be issued upon completion of the above steps, at the above rates. TWO (2) YEAR WARRANTY - For the DEWALT 207-FE Floor Edger. Warranted to be free from defects in material and workmanship for a period of two (2) years from the date of Transportation of hazardous waste or contaminated equipment is subject to various laws purchase by the original owners.
