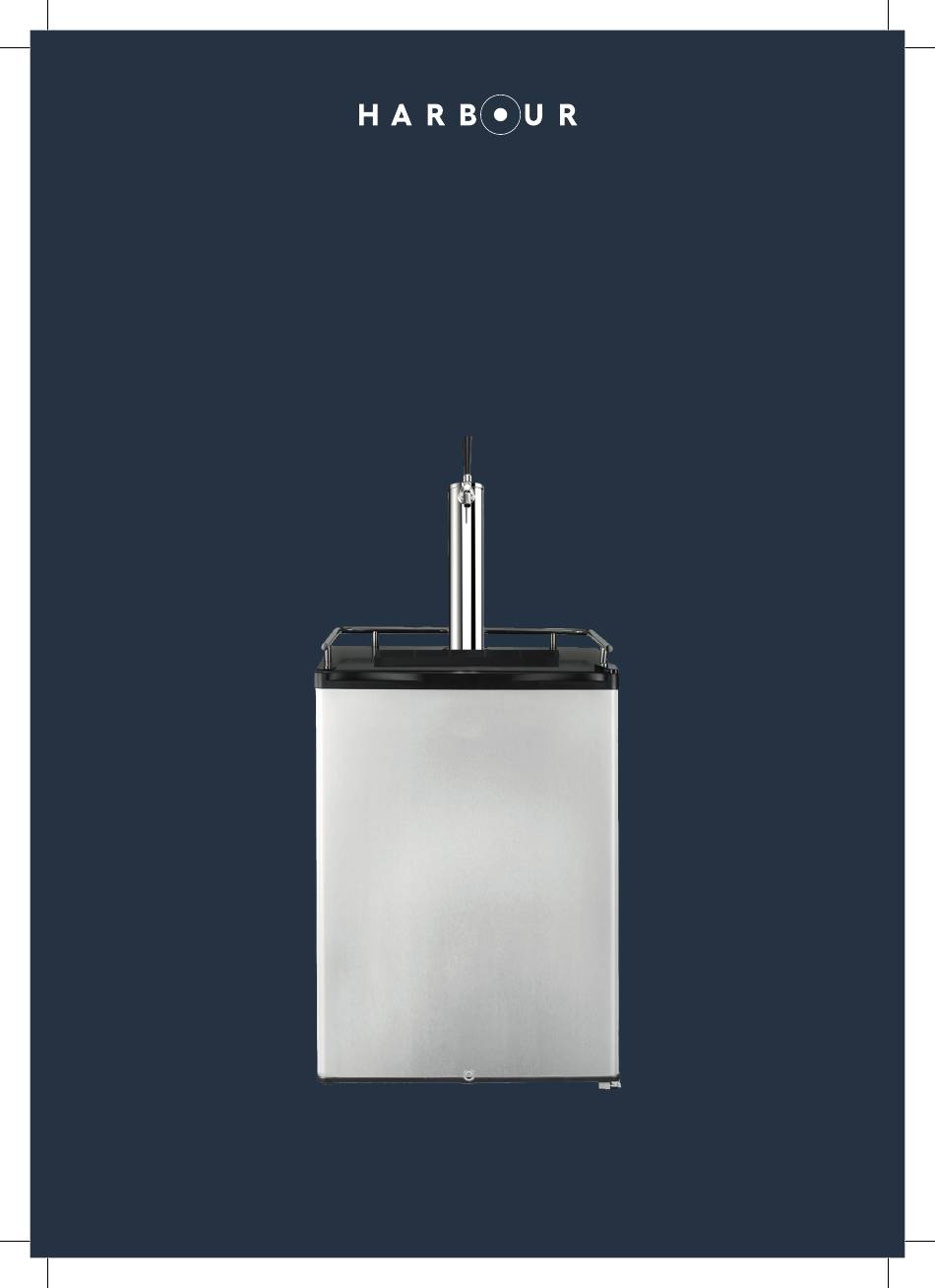

- Page 1 185L Kegerator I N S T R U C T I O N M A N U A L IM VERSION: V1.5 | MODEL: HBRKBC185X | PRODUCT CODE: 717084 | ISSUE DATE: 07/2024 SUPPORT: 1300 11 4357 | WWW.HARBOUR-APPLIANCES.COM.AU...
-
Page 2: Welcome
Welcome Congratulations on purchasing your new Kegerator. All products brought to you by Harbour are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. -
Page 3: Table Of Contents
Contents 02 Welcome 04 Warranty Details 05 General Safety Instructions 10 Product Overview 16 Getting Started & Set-up 20 Operating Instructions 22 Frequently Asked Questions 24 Troubleshooting Guide 27 Cleaning and Maintenance 30 Other Useful Information 34 Repair and Refurbished Goods or Parts Notice... - Page 4 185L Kegerator REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Congratulations! You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, ALDI will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase.
-
Page 5: General Safety Instructions
General Safety Instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. -
Page 6: Electrical Safety
GENERAL SAFETY INSTRUCTIONS CONT. To reduce the risk of fire, electric shock or injury, always follow basic safety precautions and accident prevention measures when using this appliance, including the following: ELECTRICAL SAFETY • Voltage: Plug the appliance in a 220-240 V, 50 Hz, properly earthed power outlet, which must be in good working order. -
Page 7: Cleaning The Beer Lines
GENERAL SAFETY INSTRUCTIONS CONT. CLEANING AND MAINTENANCE • Disconnect: Switch off and unplug the appliance from the mains socket before cleaning, maintenance or servicing. Failure to do so can result in electric shock, injury or death. Do not connect or disconnect the plug when your hands are wet. -
Page 8: Installation
GENERAL SAFETY INSTRUCTIONS CONT. INSTALLATION Refer to page 16 for the detailed installation instructions within the Getting Started section of this user manual Location: The kegerator fridge should be installed and used on a strong, solid and level surface. This is important for its correct operation, avoiding vibration and noise. -
Page 9: Carbon Dioxide (Co2)
GENERAL SAFETY INSTRUCTIONS CONT. CARBON DIOXIDE (CO2) For most draft beer dispensing systems, CO2 is the primary gas to get the beer out of the keg and into the glass. The pressurised gas from the CO2 cylinder/tank propels the beer through the keg coupler via the beer line. -
Page 10: Product Overview
Product Overview NOTE: Due to continued product improvement, images and illustrations in this manual may vary slightly from the product purchased. All images in this manual are for reference purposes only. Parts are not necessarily pictured to scale. Figure 1- Kegerator exploded view diagram (above) 1. - Page 11 PRODUCT OVERVIEW CONT. Figure 2- Kegerator internal parts exploded view (above) Included components/parts not 1A. Beer tap handle Key: pictured: 1B. Beer faucet/tap 2. Draft beer tower including Faucet spanner wrench × Hose clamp beer line × 3. Keg coupler (included with the Drip tray base ×...
- Page 12 PRODUCT OVERVIEW CONT. GET TO KNOW THE KEGERATOR A kegerator (or draft beer system) is made up of a series of components that work together to provide you with a perfectly poured pint of beer. Knowing these components of equipment and having a basic understanding of how they work will help with keeping the system running smoothly and get the best results from the set up.
- Page 13 PRODUCT OVERVIEW CONT. AIR LINE The air line (or hose) is a food-grade vinyl tube that will be used to transport the Carbon Dioxide (CO2) from the CO2 tank/cylinder (purchased separately), via the CO2 regulator, to the keg coupler. There is a hose clamp fitted onto one end of the air line hose.
- Page 14 PRODUCT OVERVIEW CONT. DRAFT BEER FAUCET/TAP The draft beer faucet is the tap that the beer is dispensed from. The kegerator includes a quality 304 grade stainless steel tap. Like the beer lines, this tap should be regularly disassembled and cleaned for optimal performance and health/hygiene reasons.
- Page 15 PRODUCT OVERVIEW CONT. KEGERATOR TECHNICAL SPECIFICATIONS Model HBRKBC185X Temperature Range 0-10°C Climate Class Storage Volume 185 L Protection Class Voltage 220-240V/50Hz Input Current 0.6 A Lamps Power Refrigerant R600 a/25 g Dimensions (W×D×H) 605×630×857 mm Foaming Agent Cyclopentane COMPLIANCE This product has been fully tested and meets all requirements as set out by standards AS/NZS 60335.1 and AS/NZS 60335.2.24.
-
Page 16: Getting Started & Set-Up
Setting up the Kegerator You can find a helpful video guide on the installation process on our website located at: https://www.harbour-appliances.com.au/kegerator/ Alternatively, please follow these steps to set up the Kegerator. NOTE! The default configuration of the Kegerator includes Adjustable Feet as standard. - Page 17 GETTING STARTED & SET-UP CONT. Tip! Use a soft towel, cardboard or blanket to protect your floor (and the kegerator) from damage or scratches. 1. Caster Installation Procedure a. Preparation: Clear the cabinet of all contents and place the unit on a clean, dry, and padded surface.
- Page 18 GETTING STARTED & SET-UP CONT. 2. Install the guardrail: a. Screw the guardrail lugs into the top of the kegerator. b. Install the guardrail posts onto the guardrail lugs. Using the screws provided, fasten the guardrail posts onto the guardrail lugs. Figure 8- Guardrail installation.
- Page 19 GETTING STARTED & SET-UP CONT. Use a wrench to tighten into place. d. Soak the end of the air line (red hose) in warm water, as this will make it easier to push onto the barb fitting on the CO2 regulator. Push one end of the air line (red hose) on to the barb fitting of the CO2 regulator and lock into place by using one of the hose clamps (tighten with a Philips screw driver).
-
Page 20: Operating Instructions
Before operating the kegerator • Proper Installation: Ensure the Harbour Kegerator is correctly installed in an appropriate environment to maintain the ideal dispensing temperature for beer. Mount the draft tower as close to the kegerator's top as possible and seal any openings to prevent heat transfer. - Page 21 OPERATING INSTRUCTIONS CONT. Temperature settings guide The kegerator includes a thermostat dial near the internal light and light switch where you can change the temperature settings. • Temperature Adjustment: The settings ranging from 0 (OFF) to 7 (MAX) control the internal temperature of the kegerator.
-
Page 22: Frequently Asked Questions
Frequently asked questions CAN I BUILD-IN THIS KEGERATOR UNDERCOUNTER? No, this unit is not intended for built-in use and is designed as a freestanding fridge. The fridge should be installed with a clearance of 70 mm at the sides and 70 mm at the rear. DO I NEED ANYTHING ELSE? This set up comes with essentially everything you need to get started, except for the CO2 cylinder (which you can source from your local keg supply stores or gas suppliers) and your beverage keg of choice. - Page 23 FREQUENTLY ASKED QUESTIONS CONT. WHAT TYPE OF KEG COUPLER DOES THE KEG REQUIRE? The majority of Australian kegs require either a D-Type coupler for the CUB portfolio or an A-Type coupler for the Lion portfolio. The majority of kegs from independent breweries also tend to use an A-Type coupler. Included in the Other Useful Information section of this user manual is a guide for common keg types in Australia, with their associated coupler type.
-
Page 24: Troubleshooting Guide
Troubleshooting Guide Issue/Fault Possible Causes Corrective Action Fridge thermostat set too Set the fridge thermostat to a lower setting. high. Ensure that the fridge has sufficient Insufficient ventilation and ventilation at the sides and rear airflow. (minimum 70 mm). Allow adequate time for the beer keg to cool Warm beer placed into down. - Page 25 TROUBLESHOOTING GUIDE CONT. 1. Fuse blown or circuit Check the fuse board to ensure there are breaker tripped. no blown fuses or circuit breakers tripped. Check that the appliance is plugged in 2. Power cord unplugged. correctly. Try an alternative power point (in case of faulty power outlet or circuit).
- Page 26 TROUBLESHOOTING GUIDE CONT. Allow adequate time Excessive amount of warm product inside for the product to cool cabinet (i.e. new keg). down to temperature. Ensure that the door is fully closed when Door not sealed correctly, door opening too not in use. Ensure frequently or door ajar.
-
Page 27: Cleaning And Maintenance
Cleaning and Maintenance WARNING! To reduce the risk of electric shock or injury, always switch off the appliance and disconnect it from the power supply before cleaning or maintenance. WARNING! Never clean the appliance with a steam clear. Moisture could accumulate within the electrical components, danger of electric shock! Hot vapours can lead to the damage of plastic parts. - Page 28 CLEANING AND MAINTENANCE CONT. Step 1: Disconnect the draft components Start by turning off the CO2 tank and then disconnect the coupler from the keg. Place a check ball lifter in the coupler, engage the coupler, and place it in the bucket to collect spent water and cleaning solution. Disconnect the draft faucet using the spanner wrench.
- Page 29 CLEANING AND MAINTENANCE CONT. Step 4: Reassemble the coupler Start putting the coupler back together by sliding the probe into the body, and then slide the handle over the probe and align the hinge pin holes. Insert the hinge pin and tighten the nut, making sure to not overtighten.
-
Page 30: Other Useful Information
Other Useful Information RESPONSIBLE DISPOSAL - PLEASE RECYCLE Packaging materials are recyclable. Please dispose of them responsibly for recycling. At the end of its working life, do not throw this appliance out with your household waste. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. - Page 31 OTHER USEFUL INFORMATION CONT. CO₂ CARBONATION CHART (PSI) To use the chart to the right, start by: 1. Measure the temperature of the beer at the serving temperature (or use the fridge temperature as the reference) 2. Find this reading on the left-hand side of the chart 3.
- Page 32 OTHER USEFUL INFORMATION CONT. CARBONATION GUIDELINES (CO2 LEVELS) FOR COMMON BEER STYLES IN VOLUMES: Beer Style Volume of CO2 British style ales 1.5 – 2.0 Porter/Stout 1.7 – 2.3 Belgian Ales 1.9 – 2.4 American Ales and Lagers 2.2 – 2.7 European Lagers/English IPA 2.2 –...
- Page 33 OTHER USEFUL INFORMATION CONT. CLEANING LOG Date Initials Caustic or Acid, and Brand...
-
Page 34: Repair And Refurbished Goods Or Parts Notice
60cm/90cm Canopy Rangehood 185L Kegerator 7kg Clothes Dryer Repair and Refurbished Repair and Refurbished Goods or Parts Notice Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files Unfortunately, from time to time, faulty products are manufactured which need to stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs... - Page 35 For an electronic copy of this manual, go to www.harbour-appliances.com.au and download a copy.
