Summary of Contents for UIg GOLD HUNTER SMART

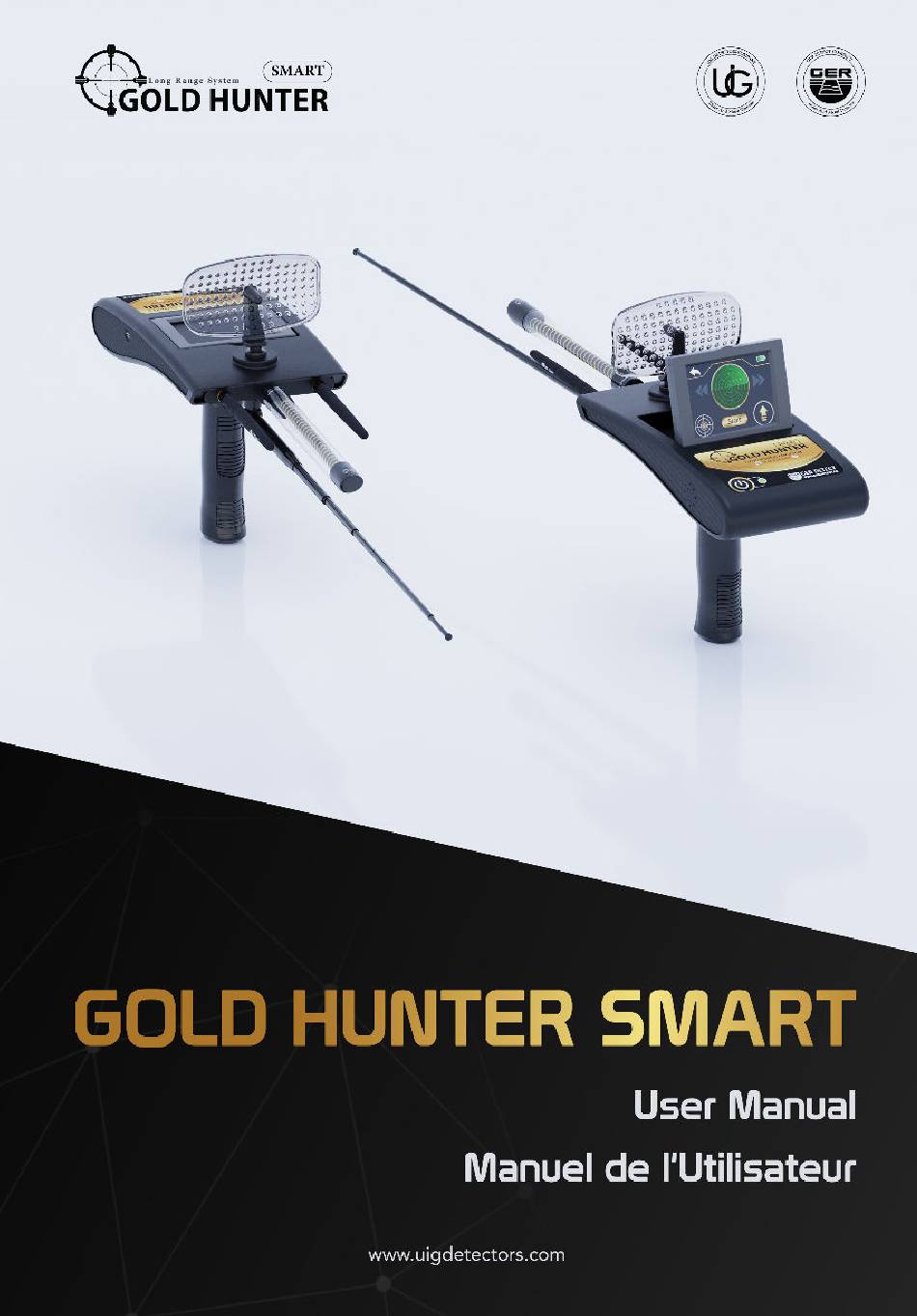

- Page 3 USER MANUAL ENGLISH...
- Page 4 Contents Critical Warning............. 6 Features and Speci cations........7 Assembly................ 10 Components Overview .......... 12...
- Page 5 13 ...............User Interface 15 ........Device Operations Steps 22 ..........Parts and Accessories 23 ......... Technical Speci cations...
-
Page 6: Critical Warning
Critical Warning Please be sure that all precautions are taken against risks. Do not use your device while it is raining or when the wind is too strong. Turn on the device after you make sure that all parts are in place and connected. Make sure that the device battery is fully charged before you start searching. -
Page 7: Features And Speci Cations
Features And Speci cations Gold Hunter Smart is a long-range device with three di erent search systems, supported by 2D imaging technology. Gold Hunter Smart device has multiple features to search for gold, buried treasures, precious metals, and diamonds such as:... - Page 8 The search depth of the Gold Hunter Smart device reaches 50 meters underground and the front-range is 3000 meters square. This device is designed to be compatible in all countries and regions. System to select the continent, This unique feature was added due to the di erent frequencies of underground minerals from one continent to another.
- Page 9 A radar search dish to receive and improve the signal. This device is designed to be compatible with its functioning in all countries and regions. The Gold Hunter Smart device is one of the best German manufacturers. It holds the European CE certi cate, in addition to the international ISO 9001 certi cate according to international speci cations and standards.
-
Page 10: Assembly
Assembly Install the Receiver Dish Install the Transmitter Antennas Install the Super Antenna VHS Install Reciever Antenna... - Page 11 Increase the length of the Install the Device Handle Reciever Antenna Open the Screen...
-
Page 12: Components Overview
Components Overview Reciever Dish Touch Screen Power Indicator It lights up intermittently Super Antenna VHS when the battery is Transmitter Antennas about to run out. Power Button Reciever Antenna Charge Input Charge LED it lights up red when charging and green Device Handle when fully charged. -
Page 13: User Interface
User Interface After turning on the device, the following data will appear on the main screen Tempreture Indicator Battery Level Clock Indicator Mute Button Indicator Home Screen Settings Screen Includes the languages button, con guration button and Location button. Settnings Screen Languages Screen Settings Screen It contains the device’s languages, which... - Page 14 Con g Screen: Device settings: Includes Sound volume and brightness control option. Brightness Device settings Screen Time setting screen Time setting Screen Info screen: that includes the device’s serial number. Info Screen Location Screen: Includes the continents screen, Where you can Locate and choose the continent you want to search in.
- Page 15 Device Operations Steps Turn on the device by pressing the power button for two seconds Power Button 1. Press Option button 2. Choose the type of target you want to search for underground, you can choose the target you want (example: Gold Nuggets), then set the front range of the device.
- Page 16 3. choose the front range you want to reach (from 100 meters to 500 meters - 1000 meters - 1500 meters - 2000 meters - 2500 meters - 3000 meters) (for exam- ple, 3000 meters) Example: If the front range of the target to be searched for is expected to be within an area of 500 square meters, it is su cient to specify the front range within 500 meters.
- Page 17 4. When you press the search icon, the device will start searching directly. You can also go to the search screen by pressing the search button from the home screen...
- Page 18 The balance of the device must be maintained during the search by xing the yellow dot in the middle of the circle icon. 90 ° Yellow dot The device will start sending and receiving signals directing you towards the target with a continuous sound. When getting any signal, the device will directly turn towards the target with the target direction indicator appearing on the screen and the sound accelerating.
- Page 19 After you have con rmed the location of the target, click on the Depth button determine the depth and then move away from the center of the target a distance of at least two meters. Depth Button...
- Page 20 Point the device towards the target while maintaining the balance of the device, press the start button, wait until you hear a beep from the device, then walk towards the target until the device rotates backwards with the appearance of an icon indicating the rotation of the device towards the back.
- Page 21 Important Note: If the result analyzer shows the noise more than 30% It is recommended to repeat the search to get a more accurate depth result. If the target con rmation rate is less than 90% it is recommended to repeat the search.
- Page 22 How to nd the precise center of the target: 1. After reaching the target, the device 2. Move about two meters away from will turn 360° continuously. the target 3. Turn and Walk towards the target 4. After putting the mark turn around until the device turns, put a mark to walk in the opposite direction.
- Page 23 5. Keep walking in a straight line until 6. Measure the distance between the the device turns. two points, put another mark (Blue X) in put the seconed mark on the second the middle of the line. point (Flag B) 7.
- Page 24 9. After putting the mark turn around to 10. Walk in the opposite direction in a walk in the opposite direction. straight line towards your target and keep walking until the device turns again, put a mark (Flag D) 11. Measure the distance between the the points C and D, and put a mark (Red X) in the middle, the target is found in this point.
-
Page 25: Parts And Accessories
Parts and Accessories Main Unit Reciever Signal Reciever Super Antenna Dish Antenna Handle Carrying Bag Transmitter Antennas Warranty Card Car Charger Charger... -
Page 26: Technical Speci Cations
Technical Speci cations Dynamic speaker frequency 350~5500 Hz sound output: 84 ± 3dB AUDIO OUTPUT Liquid Crystal Display (LCD) touch screen full color 320 x 240 px Device: 220 mm Length The device with antenna of 425 mm (not extended) Device with antenna 695 mm (extended) 3.2 _ 16 KHz Frequency... - Page 27 Thank you for choosing GOLD HUNTER SMART UIG DETECTORS Gold & Metal Detectors +90 539 544 02 23 +90 531 852 40 31 info@uigdetectors.com www.uigdetectors.com...
Need help?
Do you have a question about the GOLD HUNTER SMART and is the answer not in the manual?
Questions and answers
Bonjour j'aimerai avoir de l'aide s'il vous plaît J'ai un gold hunter smart et quand je l'ai tester il semble ne pas marcher, en fait il pointe une cible avec une taux de confiance de 95% et bruit de 5%, mais quand je creuse pour la trouver, il n'y a rien , et cela s'est répété plusieurs fois, Du coup j'aimerais vraiment savoir quelle est le problème pour que je puisse le réparé J'ai vu une vidéo sur Youtube sur Matt Kelava qui explique qu'il ne marche pas mais il faut le réparer et j'aimerais vraiment savoir quel est son problème
If the UIg Gold Hunter Smart indicates a target with 95% confidence but nothing is found when dug, possible issues could include:
1. Noise Interference: Nearby energy sources (e.g., phone networks, electronic devices) may have caused interference, leading to inaccurate results. Check the noise percentage; if it exceeds 30%, repeat the search.
2. Buried Target Age: The target must have been buried for many years to form an ionic field detectable by the device. Testing on recently placed metals or objects may result in false readings.
3. Incorrect Depth Estimation: The depth estimation might be inaccurate due to high noise or improper use of the device. It is recommended to repeat the search for a more accurate result.
4. Misinterpretation of Results: Ensure proper analysis of the 2D imaging and confirmation percentages. If the confirmation rate is below 90%, the device might not accurately confirm the target.
This answer is automatically generated
