Summary of Contents for Meiji Techno HD-LX105TS

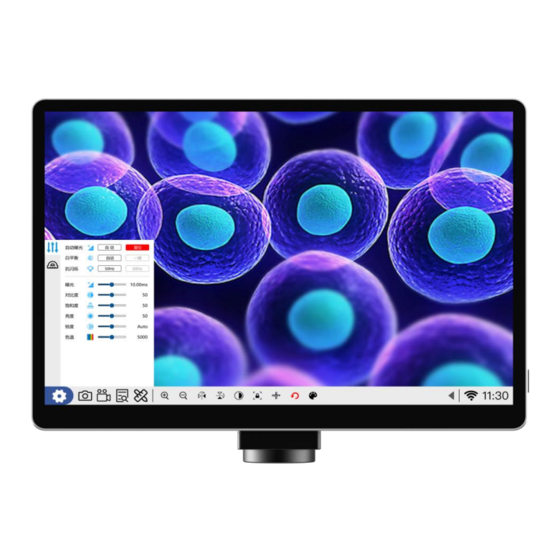

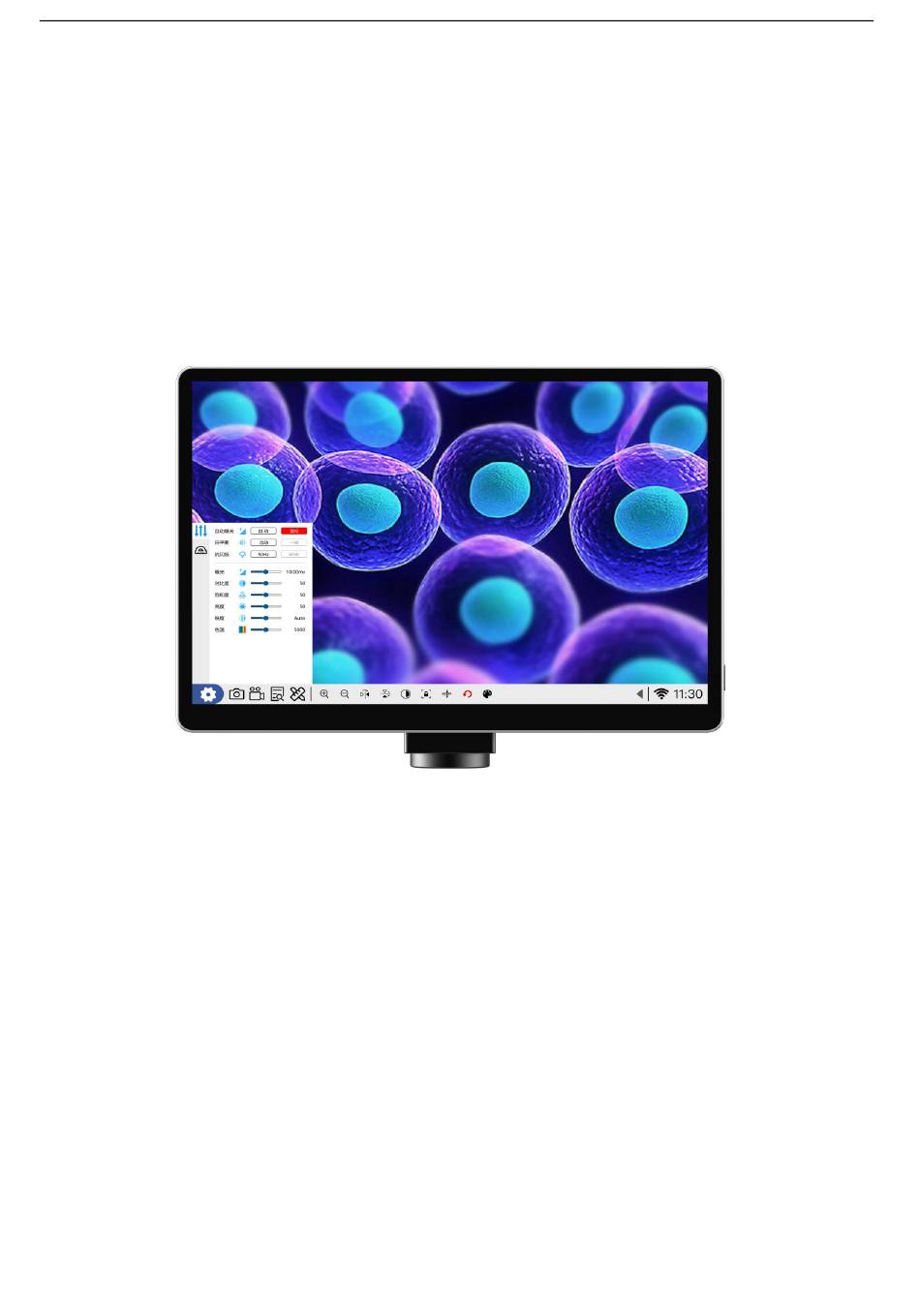

- Page 1 MEIJI TECHNO AMERICA HD-LX105TS HD-LX105TS Operation Manual...
-
Page 2: Specification
MEIJI TECHNO AMERICA HD-LX105TS Specification Model HD-LX105TS Category HD all-in-one Android 11 system tablet camera 1/2” sensor Sensor Effective pixel 10.5” high-definition touch screen Screen Operation system Android 11 Spec. Wifi 2.4GHz/5GHz dual-band WIFI , support WIFI6 Bluetooth Bluetooth 5.0 Output USB3.0*2, USB2.0*1, HDMI, Gigabit LAN port... -
Page 3: Product Introduction
MEIJI TECHNO AMERICA HD-LX105TS Product Introduction Core features 1, Android 11 system intelligent tablet camera 2, 10.5“ 3:2 HD screen, better field of view 3, Built-in 1/2 target surface 4K camera, details are clearly visible 4, Multiple external interfaces, easy to use... - Page 4 MEIJI TECHNO AMERICA HD-LX105TS S-EYE2.0 introduction Main interface mode The camera enters this interface directly after powering on, and you can make shortcut settings for the camera in the status bar as needed The icons are in order for image 1）...
-
Page 5: Setting Mode
MEIJI TECHNO AMERICA HD-LX105TS 4） The icons will set the time, WIFI, and other parameters buttons are in order to set screen sound, screen brightness, IE browser mode, Explorer settings, wired settings etc. Setting mode 1, After the camera is turned on directly into the screen as shown... - Page 6 MEIJI TECHNO AMERICA HD-LX105TS (1) Auto exposure: provide two modes of manual setting and auto setting, and the system defaults auto mode. (2) White balance: provide two modes of automatic and one-touch, the system defaults automatic mode. (Under the standard color temperature, One-touch mode...
-
Page 7: Calibration Setting
MEIJI TECHNO AMERICA HD-LX105TS Calibration setting Click to choose the button to enter measurement 1）mode: providing calibration mode, line calibration and circle calibration are available to be selected. After clicking the line calibration icon, the preview interface will directly display the line segment, according to the location and length of the calibration scale, the mouse will move the line segment to the top of the calibration scale to overlap with the corresponding scale. -
Page 8: Measurement Mode
MEIJI TECHNO AMERICA HD-LX105TS Measurement mode Click to enter following interface, and then you can measure the objects and take the corresponding screenshot or report export. 1） Icons are in order for point coordinates, straight line, dashes (end of right mouse button), drawing circle etc. -
Page 9: Product Dimension
MEIJI TECHNO AMERICA HD-LX105TS 4） This icon is mainly for editing the measurement graph 5） The icons are in order for setting the graph color and thickness, deleting the last graph operation, deleting all graph operations, saving the current operation (screenshot function), and exporting the measurement results. - Page 10 MEIJI TECHNO AMERICA HD-LX105TS E-Manual User Guide You can also access this information above through an electronic manual. Locate and click the Click the and access the USER MANUAL...
