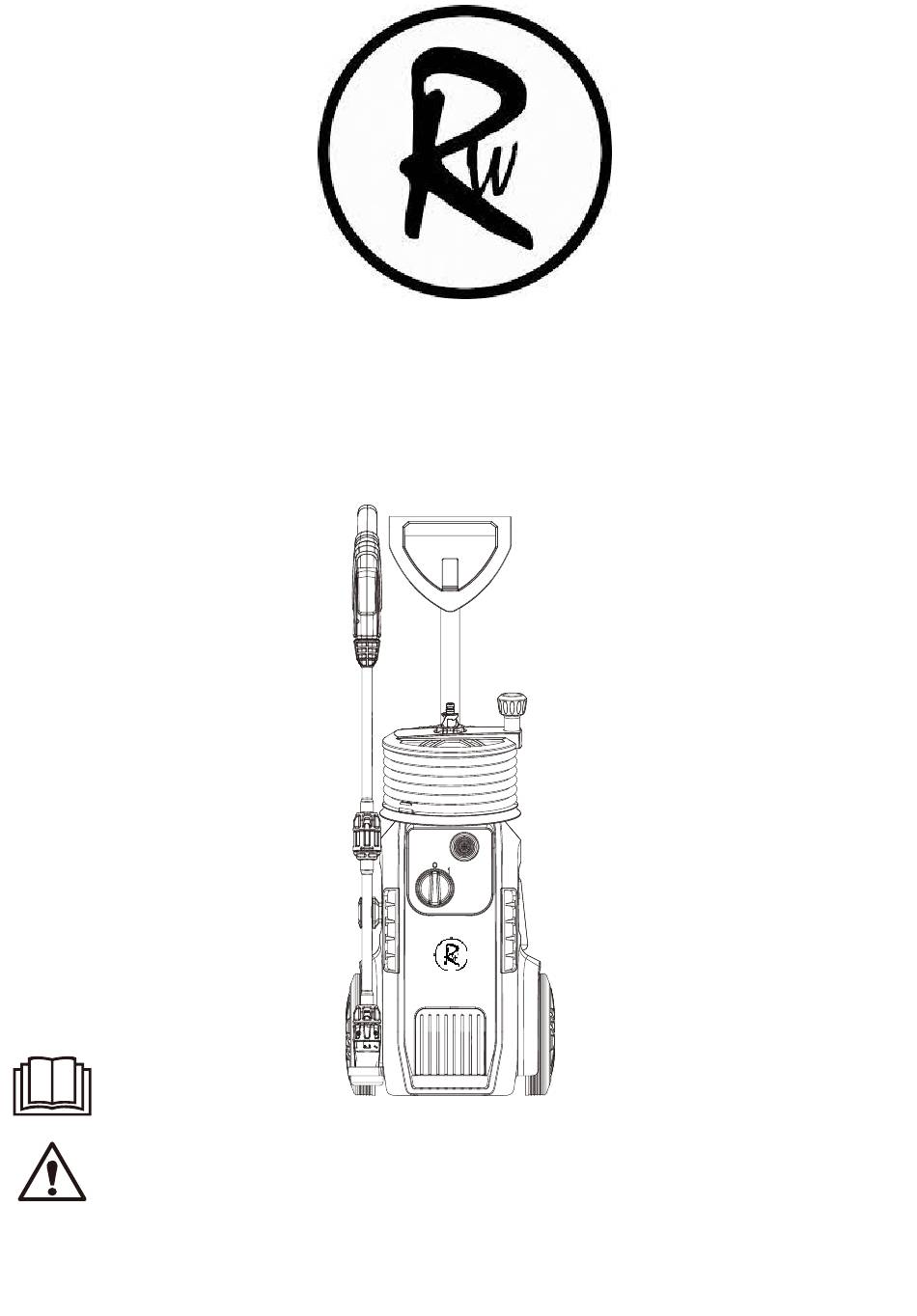

RS300 & RS400 OPERATION
MANUAL
The picture is for reference only.
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP
THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specificaions, descripion,
and packaging.
Advertisement
Table of Contents
Summary of Contents for Rockwood RS300
- Page 1 RS300 & RS400 OPERATION MANUAL The picture is for reference only. READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specificaions, descripion,...
-
Page 2: Table Of Contents
Contents Contents ........Parts Guide ........Quick Start Guide ......Operation and Maintenance..Safety and Warning Information..Troubleshooting......Technical Data ......Disposal Regulations ....RS300 & RS400 RocwooD... -
Page 3: Parts Guide
Parts Guide 01. Unit 06. Nozzle 02. Knob 07. High Pressure Hose 03. Handle 08. Nozzle Cleaning Wire 04. Extension Lance 09. Detergent Bottle 05. Spray Gun RS300 & RS400 RocwooD... -
Page 4: Quick Start Guide
To lock the trigger of the spray gun, firstly make sure the unit is powered off. Aim the gun away from you and push the lock button up (fig 4). After do this, squeeze the trigger to make sure it is locked and will not move. RS300 & RS400 RocwooD... - Page 5 (fig 6). When using the high-pressure detergent bottle (not included with RS300), make sure to fill it using a properly formulated detergent or cleaner with a water ratio according to the instructions on the container (fig 7).
- Page 6 Relieve any pressure trapped in the high-pressure hose by • squeezing the trigger 2-3 times and then lock the spray gun. g 14 RS300 & RS400 RocwooD...
-
Page 7: Safety And Warning Information
18. Protect eyes, lungs, and skin from exposure to detergent. 19. Warning - If connection is made to a portable water system, the system should be protected against back-flow. Store the power washer indoors to prevent the water in the unit from expanding under. RS300 & RS400 RocwooD... -
Page 8: Troubleshooting
Simply turn it off and wait again for 10 minutes to let it cool down. Technical Data Model RS300 & RS400 Maximum pressure 150 BAR / 2175psi Rated power 1.7 kW Maximum flow rate... - Page 9 RocwooD Warranty All machines supplied by RocwooD are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 12 months. This warranty covers 12 months domestic use, business or continuous use will invalidate this warranty.
