INSTALLATION MANUAL

Aveo RedBird Conforma

Aveo RedBird Conforma 177 Left

Aveo RedBird Conforma 177 Right

AVE-ARBCC177-IM

Aveo Engineering Group, s.r.o.

must not be disclosed, copied or reproduced in whole or in part without prior written permission from

Aveo Engineering Group, s.r.o.

Table of Contents

Need help?

Do you have a question about the RedBird Conforma and is the answer not in the manual?

Questions and answers

Summary of Contents for Aveo RedBird Conforma

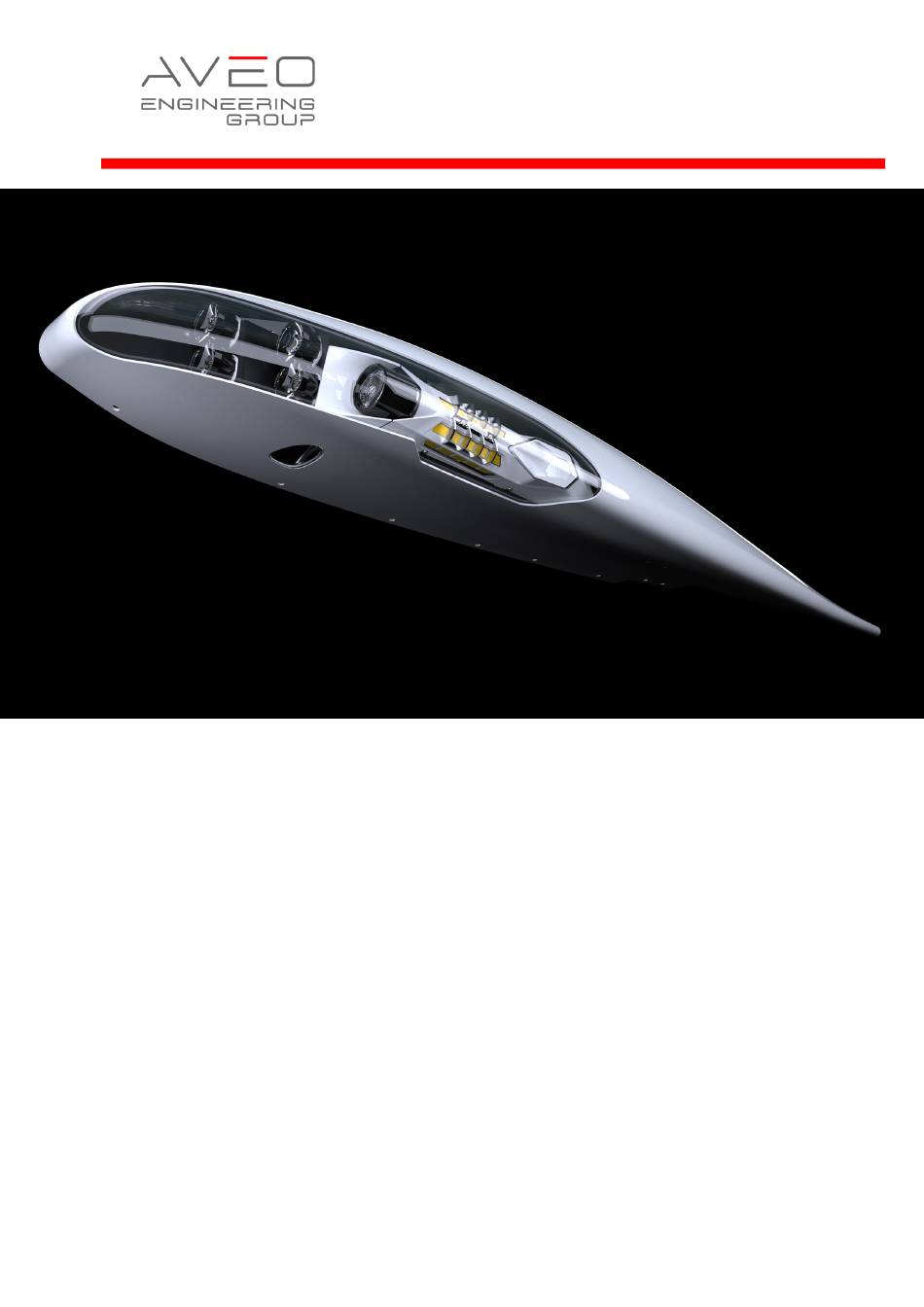

Page 1 INSTALLATION MANUAL Aveo RedBird Conforma Aveo RedBird Conforma 177 Left Aveo RedBird Conforma 177 Right AVE-ARBCC177-IM Aveo Engineering Group, s.r.o. © All rights reserved. The information contained within this document must not be disclosed, copied or reproduced in whole or in part without prior written permission from...
Page 2: Table Of Contents
Installation Manual AVE-ARBCC177-IM Issue 01 TABLE OF CONTENTS PART 0 DOCUMENT ADMINISTRATION ..........3 ....................... 3 OCUMENT PPROVAL .................... 4 MENDMENT ECORD ROCEDURE ....................4 FFECTED AGES ROCEDURE PART 1 INSTALLATION DATA ..............5 ..........................5 RODUCT ......................5 PERATING NSTRUCTIONS ................
Page 3: Part 0 Document Administration
Aveo RedBird Conforma 177 Left AVE-ARBCC177L-T01 • Aveo RedBird Conforma 177 Right AVE-ARBCC177R-T01 Compiled by: 16 October 2024 Petr Jaroš Engineer, Aveo Engineering Group, s.r.o. Approved by: 16 October 2024 Georg Hartl Head of DO, Aveo Engineering Group, s.r.o. Page 3 of 38...
Page 4: Amendment Record Procedure
Amendment Record Procedure The master copy of this document shall be kept electronically as a read only document under the control of Aveo Engineering Group, s.r.o. as Master Copy. ALL amendments to this manual will initiate a raise of issue.
Page 5: Part 1 Installation Data
AVE-ARBCC177-IM Issue 01 Part 1 Installation data Product Info Aveo RedBird Conforma 177™ is the ultimate ALL-IN-ONE wingtip module for aircraft. This light provides Position and Strobe Light per ETSO standards. Aveo RedBird Conforma 177 Left AVE-ARBCC177L-T01 Aveo RedBird Conforma 177 Right...
Page 6: Installation Schematic / Wiring Diagram
Installation Manual AVE-ARBCC177-IM Issue 01 Installation Schematic / Wiring Diagram Page 6 of 38...
Page 7: Control & Power Inputs
Bonding AWG 22 Technical Specification Dimensions: See Technical Drawing in Section 1.6 Weight: 2.5 kg / 5.51 lb Operating Voltage Range: 9 to 36 VDC Performance: RedBird Conforma C177 Left PN: AVE-ARBCC177L-T01 Landing Navigation Taxi Strobe Logo Recognition Maintenance WarpSpeed...
Page 8: Technical Drawing
60 V, both polarities b. Under-voltage lockout: 9 V, not more c. Over-voltage lockout: 36 V, not less Technical Drawing Aveo RedBird Conforma 177 Left AVE-ARBCC177L-T01 Aveo RedBird Conforma 177 Right AVE-ARBCC177R-T01 *Dimensions in mm / [inches] Page 8 of 38...
Page 9: Wiring Chart
Installation Manual AVE-ARBCC177-IM Issue 01 Wiring Chart Use diagram below defining the wiring size depending on the current and the wire length. Make sure you add up the current for all connected lights. If current is not given, then divide the power by the voltage. Page 9 of 38...
Page 10: Optic Simulation
Installation Manual AVE-ARBCC177-IM Issue 01 Optic Simulation Long Range Landing – RIGHT and LEFT Output Lumens: 4428 lm Peak Intensity: 275838 cd 5.8° (at 50% of max light intensity) 10.5° (at 10% of max light intensity) Page 10 of 38...
Page 11 Installation Manual AVE-ARBCC177-IM Issue 01 Taxi Mode - RIGHT and LEFT Output Lumens: 824 lm Peak Intensity: 5038 cd 22.2° (at 50% of max light intensity) 36.4° (at 10% of max light intensity) Page 11 of 38...
Page 12 Installation Manual AVE-ARBCC177-IM Issue 01 Recognition (WarpSpeed) Light – RIGHT and LEFT Output Lumens: 1090 lm Peak Intensity: 87600 cd 6.7° (at 50% of max light intensity) 10° (at 10% of max light intensity) Page 12 of 38...
Page 13 Installation Manual AVE-ARBCC177-IM Issue 01 Navigation Light (Green) – RIGHT Page 13 of 38...
Page 14 Installation Manual AVE-ARBCC177-IM Issue 01 Page 14 of 38...
Page 15 Installation Manual AVE-ARBCC177-IM Issue 01 Page 15 of 38...
Page 16 Installation Manual AVE-ARBCC177-IM Issue 01 Page 16 of 38...
Page 17 Installation Manual AVE-ARBCC177-IM Issue 01 Page 17 of 38...
Page 18 Installation Manual AVE-ARBCC177-IM Issue 01 Navigation Light (Red) – LEFT Page 18 of 38...
Page 19 Installation Manual AVE-ARBCC177-IM Issue 01 Page 19 of 38...
Page 20 Installation Manual AVE-ARBCC177-IM Issue 01 Page 20 of 38...
Page 21 Installation Manual AVE-ARBCC177-IM Issue 01 Page 21 of 38...
Page 22 Installation Manual AVE-ARBCC177-IM Issue 01 Page 22 of 38...
Page 23 Installation Manual AVE-ARBCC177-IM Issue 01 Rear Position Light (White) – RIGHT Page 23 of 38...
Page 24 Installation Manual AVE-ARBCC177-IM Issue 01 Page 24 of 38...
Page 25 Installation Manual AVE-ARBCC177-IM Issue 01 Rear Position Light (White) – LEFT Page 25 of 38...
Page 26 Installation Manual AVE-ARBCC177-IM Issue 01 Page 26 of 38...
Page 27 Installation Manual AVE-ARBCC177-IM Issue 01 Strobe Light (White) - RIGHT Page 27 of 38...
Page 28 Installation Manual AVE-ARBCC177-IM Issue 01 Page 28 of 38...
Page 29 Installation Manual AVE-ARBCC177-IM Issue 01 Strobe Light (White) - LEFT Page 29 of 38...
Page 30 Installation Manual AVE-ARBCC177-IM Issue 01 Page 30 of 38...
Page 31 Installation Manual AVE-ARBCC177-IM Issue 01 Rear Strobe Light (White) - RIGHT Page 31 of 38...
Page 32 Installation Manual AVE-ARBCC177-IM Issue 01 Page 32 of 38...
Page 33 Installation Manual AVE-ARBCC177-IM Issue 01 Rear Strobe Light (White) - LEFT Page 33 of 38...
Page 34 Installation Manual AVE-ARBCC177-IM Issue 01 Page 34 of 38...
Page 35: Equipment Limitation
No light is released for sale without undergoing this extensive operational testing. When you receive the Aveo RedBird Conforma 177, and wish to test the function of the light prior to installation on your aircraft, please observe the following procedure: 1.
Page 36: Notes On Installation
OEM before continuing with this installation. In order to meet all requirements, the Aveo RedBird Conforma 177 module should be installed into an Aveo manufactured wingtip only. In case you intend to mount any other than AVEO wingtip, contact kindly the manufacturer on the website http://www.aveoengineering.com/contact-us/.
Page 37: Continued Airworthiness Information
1.12 Continued Airworthiness Information From the webpage http://www.aveoengineering.com/ the customer can download the form F-AVE-001A which shall be used by operator for reporting any occurrences to the Aveo Engineering as the design holder. The form contains the Aveo Engineering telephone number occurrence...
Page 38: Eu Reach Regulation (Ec) No. 1907/2006
1.14 EU REACH Regulation (EC) No. 1907/2006 Aveo Engineering declares that no chemicals are produced and that none of the chemicals used during the production process or needed for the product maintenance or service, is listed on the current European Chemicals Agency’s Candidate list of Substances of Very High Concern for Authorization.

This manual is also suitable for:

Ave-arbcc177l-t01 Ave-arbcc177r-t01 Redbird conforma 177 left Redbird conforma 177 right
