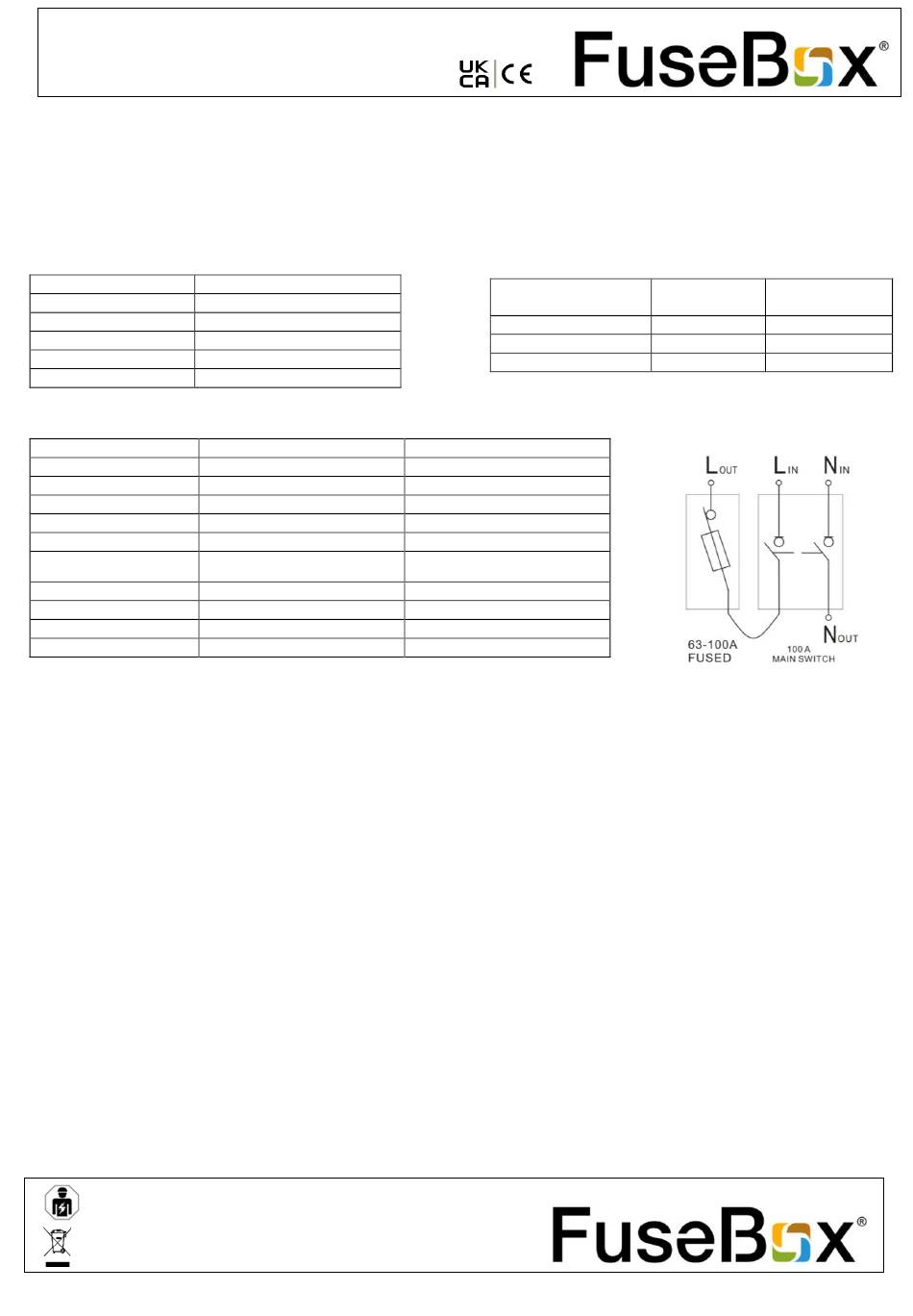

FuseBox SF0100T2 Instruction Leaflet

SF0100/T2
100A T2(AC21) Fused Switch
Instruction Leaflet
1 Technical information
1a METAL consumer unit must be installed by a qualified electrician in accordance with the current IET Wiring Regulations
BS 7671.
1b Total load must not exceed the rating of the incoming isolator or any additional limitation.
1c The Consumer Unit and associated components have been manufactured to the following specifications:
Standards (TABLE 1)
Device
Consumer Unit
Main Switch
Fuse Holder
Fuses
IP RATING
Technical (TABLE 3)
SPD T2
Maximum load
Number of Poles
Fuse Size
Fuse Ratings
Fuse Type
Enclosure
Dimensions (mm)
Knockouts (mm)
Padlock facility
2 Enclosure Mounting
2a Remove 2 screws which attach front cover to base and lift off front cover.
2b Ensure main switch is in the OFF position and that NO fuse is fitted in the fuse holder.
2c Remove minimum appropriate knockouts with a punch. In order to maintain the IP rating and fire containment of the
enclosure we recommend glands are used.
2d Fix base to wall using 3 (SF0100) or 4 screws (SF0100T2) and rawl plugs as appropriate and remove any debris from inside
the enclosure.
3 Connection of Tails
3a Route SUPPLY(IN) and LOAD(OUT) cables to the desired positions (see connection diagram above).
3b Cut and dress the SUPPLY cables and earth conductor and route L and N through the tail clamp, fixed to
the base of the enclosure with 2 screws, above the incomer.
3c Connect into the appropriate terminals L & N on main switch and earth into the terminal bar and torque all connections.
3d Connect L load cable to top terminal of fuse holder (LOUT), and N load (NOUT).
3e Tighten tail clamp once the connections have been made into the main switch.
3f An earth cable is supplied in the accessory pack which must be fitted between the front cover and the earth terminal bar.
3g Refit front cover and select and fit correct fuse into the fuse holder for the installation –63A, 80A or 100A gG fuses supplied.
Before fitting the front cover, check all connections including factory made connections are TORQUED.
Loose connections can cause fires!!!!
4 Testing
4a After completion of the installation, it must be tested in accordance with the latest edition of the IET Wiring
Regulations for Electrical Installations (BS 7671).
Environment
WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF IN HOUSEHOLD WASTE. CONTACT YOUR RETAILER OR LOCAL
AUTHORITY FOR RECYCLING INFORMATION.
FuseBox
www.fusebox.co.uk
After installation and testing of this product it is essential that the INSTRUCTION LEAFLET is available for reference
DOC:SF0100T0420124
Standard
BS EN 61439-3
IEC EN 60947-3
IEC 60947-3
IEC 60269-2
IP20
SF0100
NO
100A /AC21
1P + N
22x58mm (cylinder)
63, 80, 100A
gG
(General purpose for conductor protection)
Steel
H 260x W 163 x D 88
1x20 + 1x32 top and bottom
YES
Torque Settings (TABLE 2)
Device
Main Switch
Fuse Holder
Earth Terminals
Connection diagram
SF0100T2
YES
100A /AC21
1P + N
22x58mm (cylinder)
63, 80, 100A
gG
(General purpose for conductor protection)
Steel
H 314 x W 236 x D 88
1x20 + 1x32 top and bottom
YES
Max Cable Recommended
Capacity Torque
35mm² 2.5Nm
35mm² 4.0Nm
16mm² 2.5Nm
LOAD SUPPLY
