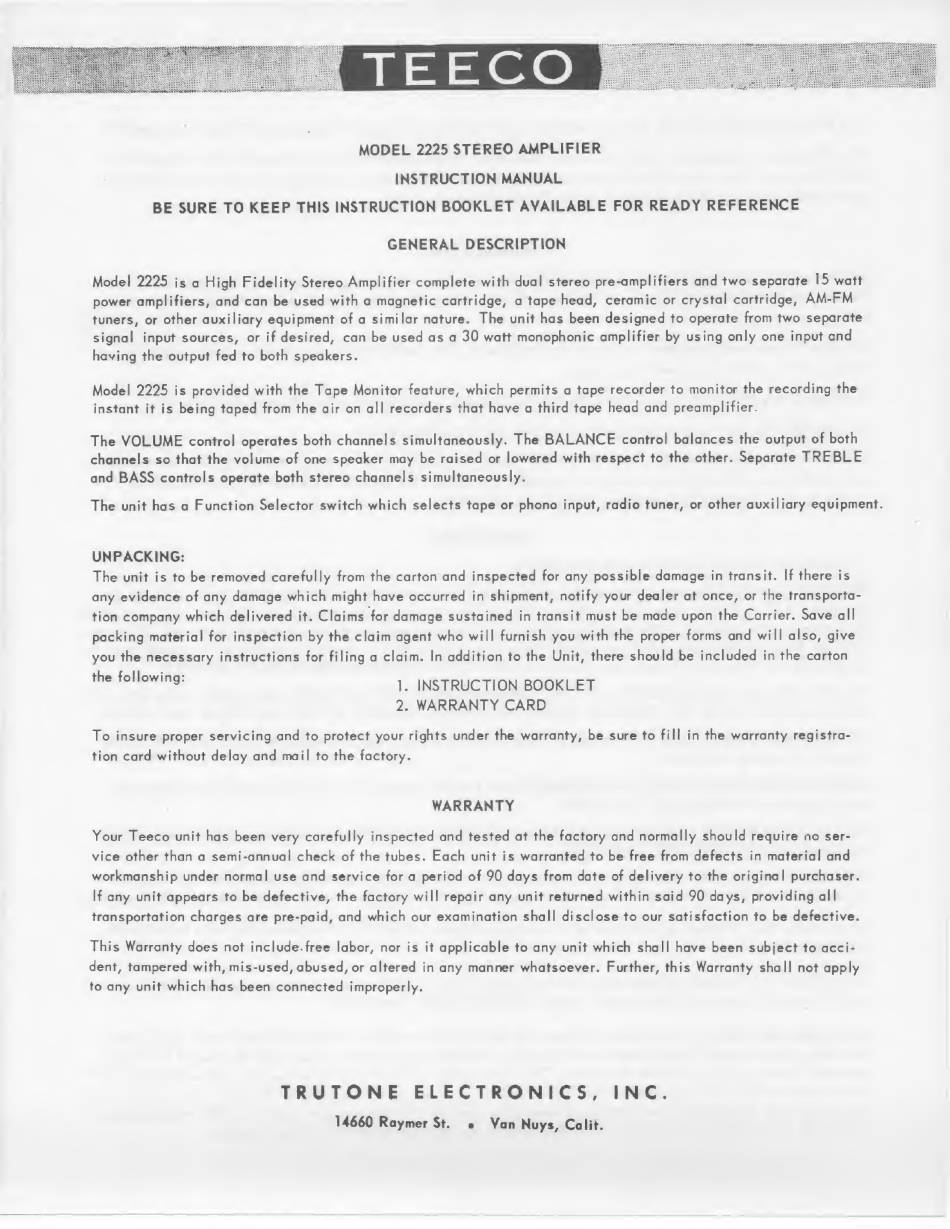

TEECO 2225 Instruction Manual

MODEL 2225 STEREO AMPLIFIER
INSTRUCTION MANUAL
BE SURE TO KEEP THIS INSTRUCTION BOOKLET AVAILABLE FOR READY REFERENCE
GENERAL DESCRIPTION
Model 2225 is a High Fidelity Stereo Amplifier complete with dual stereo pre-amplifiers and two separate 15 watt
power amplifiers, and can be used with a magnetic cartridge, a tape head, ceramic or crystal cartridge, AM-FM
tuners, or other auxiliary equipment of a similar nature. The unit has been designed to operate from two separate
signal input sources, or if desired, can be used as a 30 watt monophonic amplifier by using only one input and
having the output fed to both speakers.
Model 2225 is provided with the Tape Monitor feature, which permits a tape recorder to monitor the recording the
instant it is being taped from the air on all recorders that have a third tape head and preamplifier.
The VOLUME control operates both channels simultaneously. The BALANCE control balances the output of both
channels so that the volume of one speaker may be raised or lowered with respect to the other. Separate TREBLE
and BASS controls operate both stereo channels simultaneously.
The unit has a Function Selector switch which selects tape or phono input, radio tuner, or other auxiliary equipment.
UNPACKING:
The unit is to be removed carefully from the carton and inspected for any possible damage in transit. If there is
any evidence of any damage which might have occurred in shipment, notify your dealer at once, or the transporta¬
tion company which delivered it. Claims for damage sustained in transit must be made upon the Carrier. Save all
packing material for inspection by the claim agent who will furnish you with the proper forms and will also, give
you the necessary instructions for filing a claim. In addition to the Unit, there should be included in the carton
the following: j INSTRUCTION BOOKLET
2. WARRANTY CARD
To insure proper servicing and to protect your rights under the warranty, be sure to fill in the warranty registra¬
tion card without delay and mail to the factory.
WARRANTY
Your Teeco unit has been very carefully inspected and tested at the factory and normally should require no ser¬
vice other than a semi-annual check of the tubes. Each unit is warranted to be free from defects in material and
workmanship under normal use and service for a period of 90 days from date of delivery to the original purchaser.
If any unit appears to be defective, the factory will repair any unit returned within said 90 days, providing all
transportation charges are pre-paid, and which our examination shall disclose to our satisfaction to be defective.
This Warranty does not include.free labor, nor is it applicable to any unit which shall have been subject to acci¬
dent, tampered with, mis-used, abused, or altered in any manner whatsoever. Further, this Warranty shall not apply
to any unit which has been connected improperly.
TRUTONE ELECTRONICS, INC.
14660 Raymer St. •
Van Nuys, Calit.
