Summary of Contents for Comelit 45TRA100

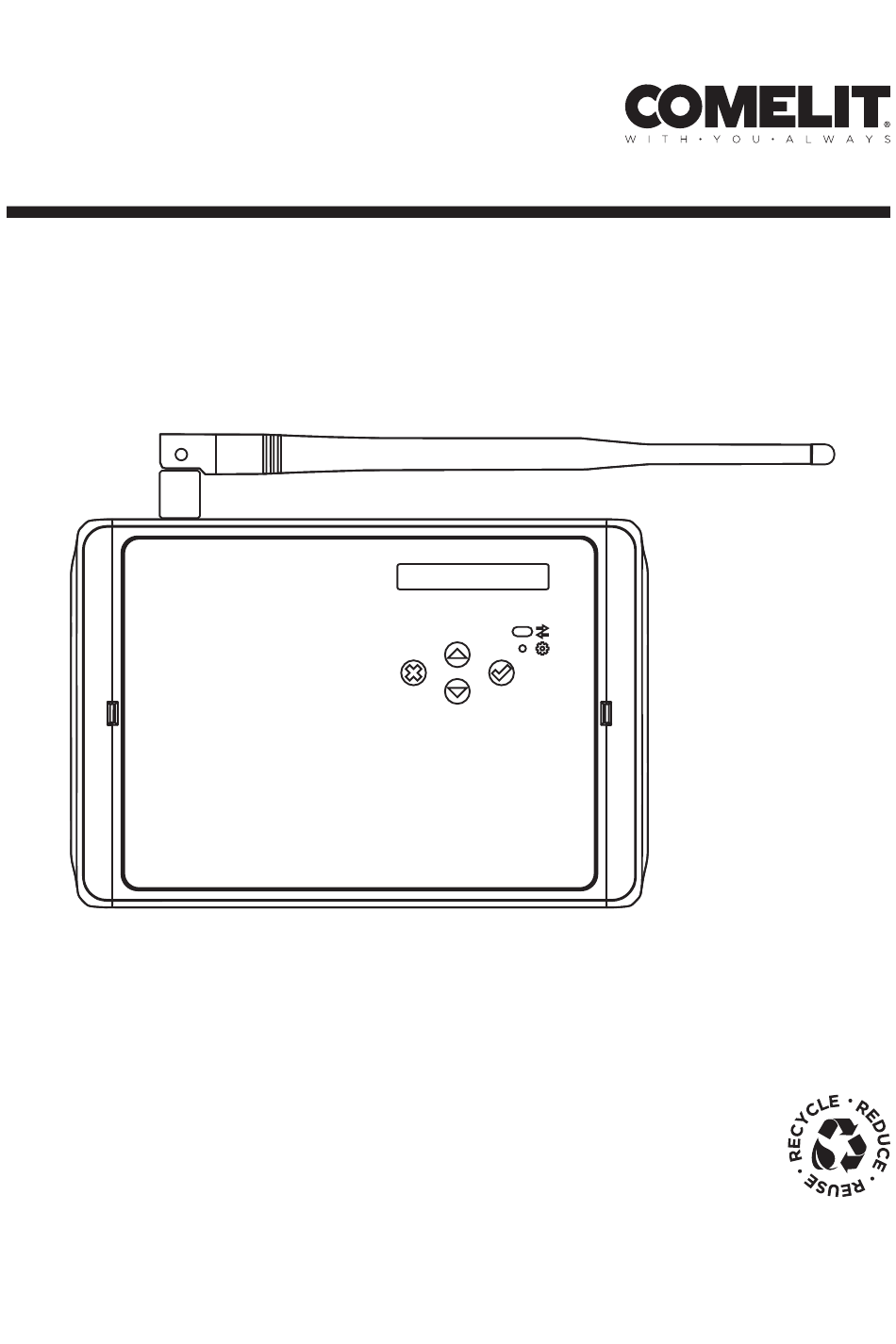

- Page 1 Art. 45TRA100 C O M P L E T E T E C H N I C A L M A N U A L Join us in taking care of our planet...
- Page 2 Up to 32 devices can be enrolled on a specific module to form a linear network. Up to 5 45TRA100 expansion modules can be connected to a single Logifire 41CPE118 panel. Information on the status of enrolled wireless devices is shown on its LCD display and also reported in the addressable panel menu.
-
Page 3: Table Of Contents
5. System Topology 6. PCB Elements 7. Connection to Loop Line 8. Front Panel 9. Addressing of 45TRA100 to LogiFire 41CPE118 Fire Alarm Panel 13 10. Initial Power-up of 45TRA100 11. Access and Organization of Programming Menus 12. Enrolling of Wireless Devices 13. -
Page 4: Wall Mounting
DoP No: 065 EN 54-18:2005, EN 54-18:2005/AC:2007, EN 54-17:2005, EN 54-17:2005/AC:2007, EN 54-25:2008 2918 Wall mounting 1. 6 x M16 knockout openings for running cables (for built-in wiring installation systems). To remove the plastic caps, use a suitable drilling or breaking tool. Remove the knockouts just for the openings you are going to use. -
Page 5: Opening The Enclosure Box
Opening the enclosure box 1. Press the handle of the right side hinge and open it. 2. Press lightly downwards to dismantle the hinge from the box bottom. 3. Use a flat screwdriver to open the left side hinge - put it in the openings and rotate. 4. -
Page 6: Closing The Enclosure Box
Closing the enclosure box L- L+ Iz+ L- L+ 1. Take the front cover and turn it to face the back side as shown. 2. Check the rubber sealant - it must be placed along the whole channel on the back side without any damages or cutting. -
Page 7: Security Screws
Rubber sealant • Round cross section Ø2.2mm; • Length ~550mm; • Factory mounted on the back side of the front cover. Security screws Use the supplied with the module screws for fixing the front cover to the box bottom. - Page 8 Mounting the hinges 1. Match the ribs on the back side of the left hinge with the cavities formed between the front cover and the bottom. Press the left hinge towards until a click is heard. 2. Attach the spherical ribs of the right hinge to the box bottom as shown. 3.
-
Page 9: General Description
1. General Description 45TRA100 is an addressable wireless expander module designed for operation with 41CPE118 addressable fire alarm panel. 45TRA100 is powered directly by the loop line and can be controlled via the communication protocol. 45TRA100 has a built-in isolator module. -
Page 10: Installation Place And Mounting
4. Installation Place and Mounting It is strongly recommended to design the Comelit wireless system in advance on paper, before starting the installation. The 45TRA100 expander module should be installed at 2-2.5m above the floor level. -
Page 11: System Topology
41RFU100 5. System Topology The 45TRA100 wireless expander module is powered on directly from the loop line and is addressed like all other addressable devices in the system architecture of 41CPE118 fire alarm panel. The enrolled to expander module Comelit series devices, operate in linear network. -
Page 12: Pcb Elements
7. Connection to Loop Line 45TRA100 is connected and powered directly from LogiFire 41CPE118 loop line. The module is equipped with a built-in isolator module, which can be used or not, according the requirements of the fire alarm installation. -
Page 13: Front Panel
9. Addressing of 45TRA100 to LogiFire 41CPE118 Fire Alarm Panel Every 45TRA100 module has a factory ID number for addressing in 41CPE118 fire alarm control panel. After the connection to the loop line and power-up of the module, the 41CPE118 panel will recognize it automatically with system name “45TRA100”. -
Page 14: Initial Power-Up Of 45Tra100
The access to programming mode and setup menus of 45TRA100 wireless expander module is limited for support engineers and maintenance technicians only. At normal operation mode, with no fault conditions, the screen of 45TRA100 is switched off and only the red LED for communication with wireless devices is blinking in 10 seconds intervals. -
Page 15: Enrolling Of Wireless Devices
12. Enrolling of Wireless Devices 45TRA100 wireless expander module supports operation with Comelit series wireless devices. The enrolment algorithm is common for all devices. 1. Prepare the device for enrolment. Remove the mounting base to access the PCB with the batteries compartment. -
Page 16: Deleting Of Wireless Devices
This is a procedure that helps the engineer to find the exact location of every wireless device in the fire installation and test the connection with module. The Comelit series wireless fire alarm detectors are equipped with built-in buzzed for additional audio signalization in addition to the visual LED indication. The procedure of finding is common for all devices. -
Page 17: Checking The Signal Quality (Rssi)
Device Type Signalization Action 45RCS100 Heat detector LEDs are flashing in orange LEDs 45RFU100 Optical-smoke detector accompanied with short sound signals. 45RML100 Combined detector Sound LEDs are flashing accompanied with 45SCI100 Sounder with strobe short sound signals. 45PAM100 Manual call point The status LED is flashing in red. -
Page 18: Channel Setup
CANCEL button. 18. Events Reviewing Mode 45TRA100 wireless expander module informs the users about different type of events concerning the current state of wireless devices enrolled to its configuration. In case of alarm, fault or warning event, the communication LED lights on in yellow. To review the active messages for events, the user has to press a random button on the front panel. -
Page 19: Settings Menu Of 45Tra100 In Logifire 41Cpe118 Fire Alarm Panel
The exit from the events’ reviewing mode is automatic after 2 minutes, if there is no button pressed or other operation. If currently there are no events, after pressing a random button, only Comelit text is displayed on the screen. -
Page 20: Memory Pcb For System Configuration
PCB from the holder (item page 8, position 5). Undo the screws fixing the old PCB to the front cover and remove it. Take the new 45TRA100 PCB and mount it to the front cover (take out the memory PCB on it). -
Page 21: Installation
Warning Intended use This Comelit product has been designed and manufactured for use in the creation of security systems in residential, commercial, industrial and public buildings. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. - Page 22 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m 2ª...
