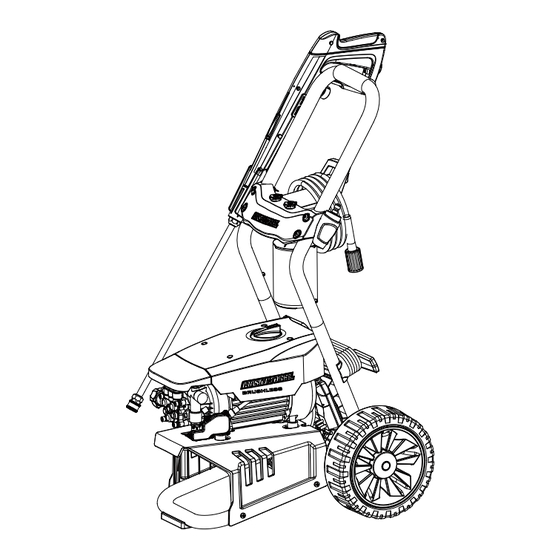

- Page 1 Electric Pressure Washer MFXI2500 261-1686 OPERATOR’S MANUAL CAUTION: To Reduce The Risk Of Injury, User Must Read And Understand Operator's Manual. Save These Instructions For Future Reference.
-
Page 2: Table Of Contents
......................Limited Warranty ......................... PRODUCT SPECIFICATIONS SPECIFICATIONS Max PSI Rated PSI Max GPM Rated GPM Cold Frequen - Weight Model (lbs/sq. in.) (lbs/sq. in.) (Gal/per min) (Gal/per min) Water Volts cy (Hz) Amps (lbs.) MFXI2500 3200 2500 43.2 Page 1... -
Page 3: Package Contents
PACKAGE CONTENTS PW95824 15° – Yellow 25° – Green PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Hose Hook Spray Gun Handle Spray Gun Trigger Lock Rotary Nozzle Spray Gun Holster O-Ring Replacement Kit High Pressure Hose Quick Connect Nozzles High Pressure Foam Cannon Pressure Washer Unit Shims... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Please read and understand this entire to quickly bleed o the pressure from all manual before attempting to assemble and parts of your pressure washer and how to operate the product. turn o the pressure washer. 8 This pressure washer conforms to CSA This manual contains information that relates and other safety and consumer standards. - Page 5 When the water freezes and expands, your Masterforce unit. pressure washer will be damaged and 36. Never use an extension power cord since become inoperable. Or, if storing outdoors, it...
- Page 6 SAFETY INSTRUCTIONS Ground Fault Circuit Interrupter Protection DANGER – Improper connection of the (For US unit only) equipment-grounding conductor can result in fi ed a risk of electrocution. Check with a quali This pressure washer is equipped with a electrician or service personnel if you are ground-fault circuit-interrupter (GFCI) built in doubt as to whether the outlet is properly into the plugs of the power-supply cord.
-
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Install rotary nozzle holder (G) and one side Frame Assembly of hose hook (A) to pressure washer unit (F). Secure with screw (DD). Install shims (AA) and wheels (J) to pressure washer unit (F). Secure with cotter pins (BB). Hardware Used: Hardware Used: Screws... - Page 8 ASSEMBLY INSTRUCTIONS Fix the bottom of hose hook (A) on the pressure Twist collar then pull back to release the the washer unit (F). Secure with screws (CC). high pressure hose (N) connection from the gun (K). Hardware Used: FIG .7 Screws Cotter Pins Screws...
- Page 9 ASSEMBLY INSTRUCTIONS To remove nozzle (E) or rotary nozzle (C), Extension Lance Installation pull back on collar of lance (I) and pull out nozzle. While spray gun (K) is in the locked position, insert lance (I) into the end of spray gun by inserting and turning clockwise until fully in FIG .11 place.
- Page 10 ASSEMBLY INSTRUCTIONS Attach Foam Cannon (O) into end of lance (I) Pull back on collar at the other end of high by pressing cannon into place. It will make a pressure hose (N). Push rmly to connect “click” sound when rmly in place. hose to pressure washer unit.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS • Make sure the power switch is o (light will pressure washing. be o ). • Begin pressure washer by squeezing the • Unwind the power cord completely and plug trigger on the spray gun all the way into the into a grounded 120 volt outlet. - Page 12 OPERATING INSTRUCTIONS • The pressure washer will pull a ratio of water How to Avoid Damaging Surfaces to detergent of 10:1 or 10 parts water to 1 part detergent. The detergent concentration • Damage to surfaces being cleaned occurs can be adjusted by turning the detergent because the impact force of the water knob on the top of the machine.
-
Page 13: Care And Maintenance
CARE AND MAINTENANCE Detergents Cleaning Nozzles • Use detergents designed for pressure • A clogged or par tially clogged nozzle washers. Hardware stores or home centers can cause signi cant reduction of water also have pressure washer detergents for pressure coming out of the nozzle and/or di erent cleaning projects. - Page 14 CARE AND MAINTENANCE Storage • When your pressure washer session has been completed, turn o the power switch. Unplug the power cord from the outlet. Turn o the water supply. Pull the trigger on the spray gun 2-3 seconds to drain out the excess water and to release any remaining water pressure.
-
Page 15: Pump Saver
PUMP SAVER Pump Saver is a product that protects and 3) Turn the power on. prolongs the life of the pump. This will keep the internal parts of the pump lubricated and 4) Squeeze bottle to help it into the pump. protected from freezing while being stored in ALL climates. -
Page 16: Troubleshooting
TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-866-235-5112 PROBLEM CORRECTIVE ACTION Unit will not turn 1. Make sure the pressure washer is OFF. Plug in the electrical cord to a grounded 120 volt outlet (no electrical extension cord should be used). If the electrical cord will not plug into your outlet, your electrical outlet is not properly grounded and should not be used. -
Page 17: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com PW95824 15° – Yellow 25° – Green PART DESCRIPTION PART # PART DESCRIPTION PART # Rotary Nozzle PW4223370... -
Page 18: Limited Warranty
The Warranty of this product is coverd by A.R.North America. This product has a 3 (three) years limited warranty. Please read the following carefully to understand what each warranty entails: This product is under warranty to the original retail consumer against defects in material and workmanship for a period of 1(one) year .This warranty includs the spray gun,the high pressure hose and all accessories from the date of purchase. - Page 20 © 2023 Menard, Inc., Eau Claire, WI 54703 08/2023...
