- Page 1 LYDIA™ VoiceWear Air User Manual Version: Date: May 2024...
- Page 2 LYDIA™ VoiceWear Air - User Manual Copyright ©2024 EPG – Ehrhardt Partner Group - topsystem GmbH Reprinting, reproduction or translation, even of excerpts, is not permitted without the written permission of topsystem GmbH. All rights, in particular under copyright, are strictly reserved by topsystem GmbH. topsystem GmbH cannot be held liable for any damages that occur as a result of unauthorized changes to this publication.
-
Page 3: Table Of Contents
LYDIA™ VoiceWear Air - User Manual Table of Contents 1 Overview ..........................5 2 About this Manual ........................ 8 2.1 General information and instructions ................ 8 2.2 Target group ......................9 2.3 Warranty provisions ....................9 2.4 Definitions safety instructions ................... 9 2.5 Sequences of activities ................... - Page 4 LYDIA™ VoiceWear Air - User Manual List of Figures 1.1 LYDIA™ VoiceWear Air front .................... 5 1.2 LYDIA™ VoiceWear Air back ................... 6 1.3 LYDIA™ VoiceWear Air battery ..................6 1.4 LYDIA™ VoiceWear Air battery backside ................ 7 5.1 LYDIA™ VoiceWear Air ....................17 6.1 LYDIA™...
-
Page 5: Overview

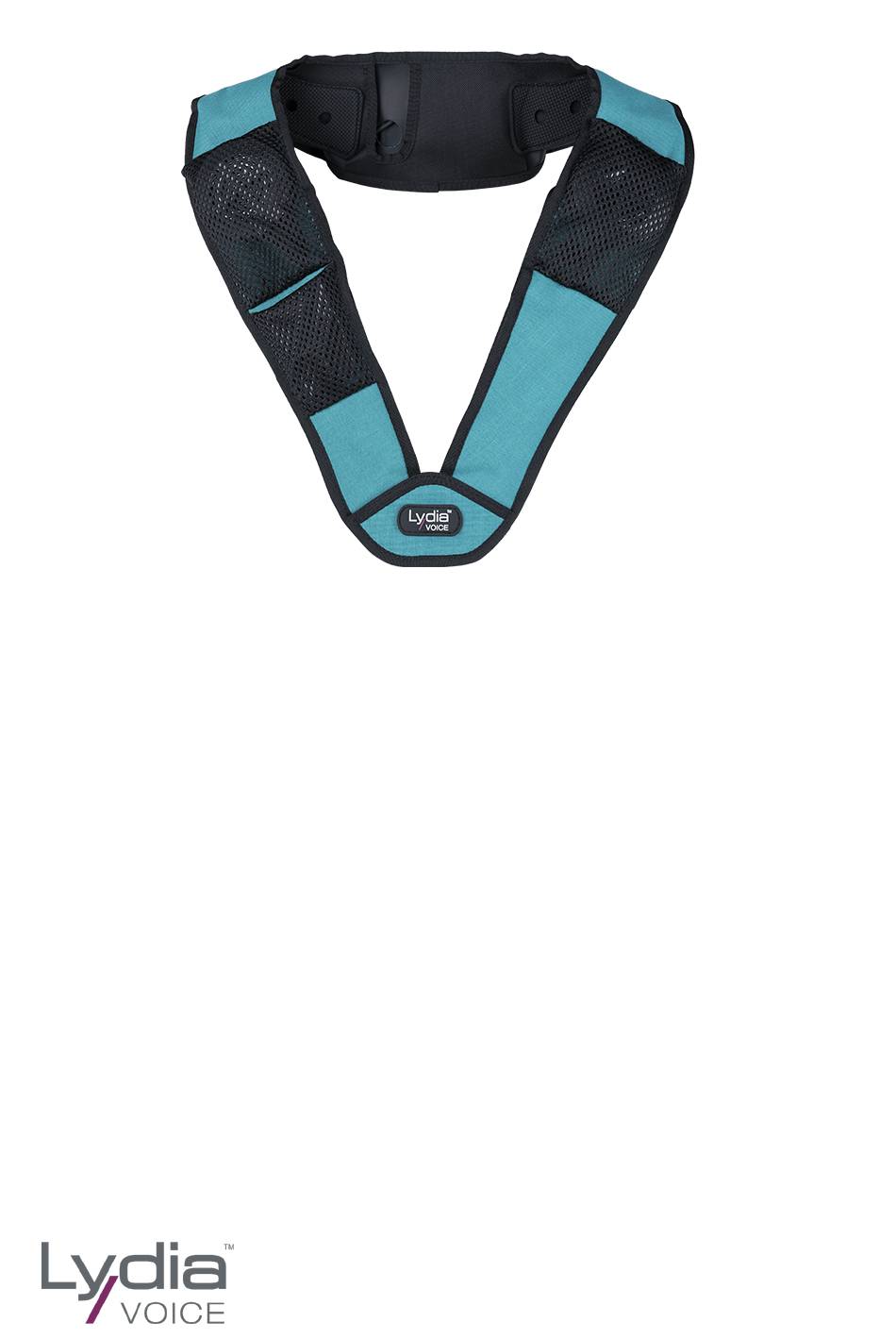

LYDIA™ VoiceWear Air - User Manual 1 Overview The LYDIA™ VoiceWear Air is a shoulder collar in which technical components are integrated for use in voice-controlled working. These components consist of the microphone, two loud- speakers and NFC and Bluetooth components. The battery is located on the back of the LY- DIA™... -
Page 6: Lydia™ Voicewear Air Back
LYDIA™ VoiceWear Air - User Manual Figure 1.2: LYDIA™ VoiceWear Air back [4] Cover over the battery Figure 1.3: LYDIA™ VoiceWear Air battery Chapter 1. Overview Page 6... -
Page 7: Lydia™ Voicewear Air Battery Backside
LYDIA™ VoiceWear Air - User Manual Figure 1.4: LYDIA™ VoiceWear Air battery backside Chapter 1. Overview Page 7... -
Page 8: About This Manual
LYDIA™ VoiceWear Air - User Manual 2 About this Manual 2.1 General information and instructions In this document, the product LYDIA™ VoiceWear Air is referred to as "shoulder collar" or simply as "product". The unit LYDIA™ Voice housing and VARTA battery is referred to as "battery" or "LY- DIA™... -
Page 9: Target Group
LYDIA™ VoiceWear Air - User Manual 2.2 Target group This manual is intended for users of the LYDIA™ VoiceWear Air in professional use who receive and respond to voice instructions. Maintenance of the product, provided there is no defect, may only be carried out by trained specialist personnel who have been authorized accordingly by the company. -
Page 10: Sequences Of Activities
LYDIA™ VoiceWear Air - User Manual WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Type and source of danger Therefore: Instructions to avoid the hazard Consequences of non-observance CAUTION indicates a hazardous situation which, if not avoided, could result in minor or mod- erate injury. -
Page 11: Illustrations
LYDIA™ VoiceWear Air - User Manual Title 1. Step 1 Steps 2. Step 2 3. … Result 2.6 Illustrations The illustrations in this user manual are intended for basic understanding and may differ from the actual product purchased. No claims can be derived from the illustrations in this user man- ual. -
Page 12: Safety
LYDIA™ VoiceWear Air - User Manual 3 Safety 3.1 Intended use The LYDIA™ VoiceWear Air is pulled over the head as a shoulder collar and rests on the shoulders during use. It can be adapted to the user’s body shape using built-in shaping wires. The built-in technical components enable the reception and output of voice instructions and sounds, as well as the establishment of a Bluetooth connection to a compatible device, such as the VOXTER™... - Page 13 LYDIA™ VoiceWear Air - User Manual DANGER Do not use a defective, damaged, deformed or inflated battery. When inserting the battery, ensure that it is fitted correctly. Only use the LYDIA™ VoiceWear Air Charger as a charger. If possible, charge the battery in a place with a smoke or fire detector and ensure that there are no flammable materials or objects in the immediate vicinity.
- Page 14 LYDIA™ VoiceWear Air - User Manual CAUTION Make sure that the volume of the LYDIA™ VoiceWear Air is not permanently set too high. Permanent use at too high a volume can cause hearing damage. CAUTION Danger of skin irritation Therefore: Only wear the LYDIA™...
- Page 15 LYDIA™ VoiceWear Air - User Manual NOTICE Mechanical and electrical damage to the LYDIA™ VoiceWear Air may occur. NOTICE Danger of damage Therefore: The LYDIA™ VoiceWear Air may only be repaired by authorized personnel. Improper repair may damage the LYDIA™ VoiceWear Air. NOTICE Danger of damage Therefore:...
-
Page 16: Description Of The Product
LYDIA™ VoiceWear Air - User Manual 4 Description of the product The LYDIA™ VoiceWear Air is used as a voice recording and output device for order picking or similar voice-controlled activities. Shortly after inserting a battery, the LYDIA™ VoiceWear Air is ready for operation. It is connected via Bluetooth to a VOXTER™ Vantage VT5 or other device running the LYDIA™... -
Page 17: Scope Of Delivery
LYDIA™ VoiceWear Air - User Manual 5 Scope of delivery Figure 5.1: LYDIA™ VoiceWear Air The delivery includes: 1 LYDIA™ VoiceWear Air 1 user manual. Necessary accessories for using the LYDIA™ VoiceWear Air: VOXTER™ VT5 or LYDIA™ Voice compatible device Rechargeable battery in LYDIA™ Voice housing LYDIA™... -
Page 18: Before Using The Lydia™ Voicewear Air
LYDIA™ VoiceWear Air - User Manual 6 Before using the LYDIA™ VoiceWear Air Before the LYDIA™ VoiceWear Air can be used, it must be adapted to the wearer and a battery inserted. 6.1 Unpacking Remove the packaging material from the LYDIA™ VoiceWear Air and battery and dispose of it in accordance with local regulations. -
Page 19: Lydia™ Voicewear Air Carrying Position
LYDIA™ VoiceWear Air - User Manual Figure 6.1: LYDIA™ VoiceWear Air carrying position Adapt the LYDIA™ VoiceWear Air to the wearer Precondition LYDIA™ VoiceWear Air is unpacked and shows no damage. 1. Pull the LYDIA™ VoiceWear Air over the head so that it rests on the shoulders and not the neck (see pictures). -
Page 20: Insert The Varta Battery Into The Lydia™ Voice Housing
LYDIA™ VoiceWear Air - User Manual 6.3 Insert the VARTA battery into the LYDIA™ Voice housing A rechargeable battery must be inserted in order to operate the LYDIA™ VoiceWear Air. The battery shall be placed in the LYDIA™ Voice housing to hold it in the LYDIA™ VoiceWear Air. Figure 6.2: Position of the battery in the LYDIA™... -
Page 21: Use The Lydia™ Voicewear Air
LYDIA™ VoiceWear Air - User Manual 7 Use the LYDIA™ VoiceWear Air Observe all safety and other instructions in the "Important safety instructions" section, Chapter 3 when operating the LYDIA™ VoiceWear Air. After inserting the battery and checking the LED status, the LYDIA™ VoiceWear Air can be put on. - Page 22 LYDIA™ VoiceWear Air - User Manual DANGER be harmful to the environment and to health (e.g. highly irritant). A short circuit can lead to fire or explosion. WARNING Danger of electric shock Therefore: Check the LYDIA™ VoiceWear Air and the battery (including the battery cover) for damage before each use.
- Page 23 LYDIA™ VoiceWear Air - User Manual Insert the battery into the LYDIA™ VoiceWear Air to put the LYDIA™ VoiceWear Air into operation Precondition The LYDIA™ VoiceWear Air has been adapted to the wearer. The LYDIA™ VoiceWear Air and battery are undamaged. The battery is charged.
-
Page 24: Connecting The Lydia™ Voicewear Air
LYDIA™ VoiceWear Air - User Manual 7.2 Connecting the LYDIA™ VoiceWear Air CAUTION Danger of hearing damage Therefore: Make sure that the volume of the LYDIA™ VoiceWear Air is not permanently set too high. Permanent use at too high a volume can cause hearing damage. There are different ways to connect the LYDIA™... -
Page 25: Replacing The Battery
LYDIA™ VoiceWear Air - User Manual Finish work with the LYDIA™ VoiceWear Air 3. Pull the lever next to the battery to the side to release the battery. 4. Remove the battery by first holding it at an angle and then remov- ing it from the anchorage. - Page 26 LYDIA™ VoiceWear Air - User Manual Figure 7.2: Removal of the VARTA battery from the LYDIA™ Voice housing Disconnect the battery from the LYDIA™ Voice housing Precondition The VARTA battery is properly installed in the LYDIA™ Voice housing. 1. Remove the battery from the LYDIA™ VoiceWear Air. 2.
-
Page 27: Maintenance And Cleaning
LYDIA™ VoiceWear Air - User Manual 8 Maintenance and cleaning If the LYDIA™ VoiceWear Air has been damaged or is not working properly, contact support. The LYDIA™ VoiceWear Air can be cleaned by wiping it with a slightly damp cloth. Make sure that no moisture can penetrate the electronics. -
Page 28: Disposal
LYDIA™ VoiceWear Air - User Manual 9 Disposal 9.1 Packaging Dispose of the packaging material in accordance with the local environmental regulations for waste disposal. 9.2 LYDIA™ VoiceWear Air and accessories The LYDIA™ VoiceWear Air and accessories purchased from topsystem GmbH can be re- turned to the manufacturer for recycling at the end of their useful life. -
Page 29: Conformity Statements
LYDIA™ VoiceWear Air - User Manual 10 Conformity statements Chapter 10. Conformity statements Page 29... -
Page 30: The Led Status Display Of The Lydia™ Voicewear Air
LYDIA™ VoiceWear Air - User Manual 11 The LED status display of the LYDIA™ VoiceWear Air The status of the LYDIA™ VoiceWear Air and the battery are indicated by colored LEDs. Bootloader White Battery and firmware ok. LYDIA™ VoiceWear Air starts. Battery status Green The battery is charged between 30% - 100%. -
Page 31: Technical Data
LYDIA™ VoiceWear Air - User Manual 12 Technical data Product Name LYDIA™ VoiceWear Air Model VWA10 Correct fit One size - Unisex Material Mesh and nylon fiber reinforced with PVC Colour Cyan Electrical parameters Volt 3.8 V Amperes 0.25 A Protection class 3, safety extra-low voltage Battery Type... -
Page 32: Lydia™ Voicewear Air
LYDIA™ VoiceWear Air - User Manual Communication Frequency response 100 to 10,000 Hz Speaker impedance 8 Ohm Speaker sound pressure level max. 101 dB Audio transmission range 300 to 20,000 Hz Compatibility/ Minimum requirements Software LYDIA™ Voice 8.4, LYDIA™ Voice 9.1 Hardware VOXTER™...
