Gate sequencers are a fun way
to generate triggers and make
new friends.

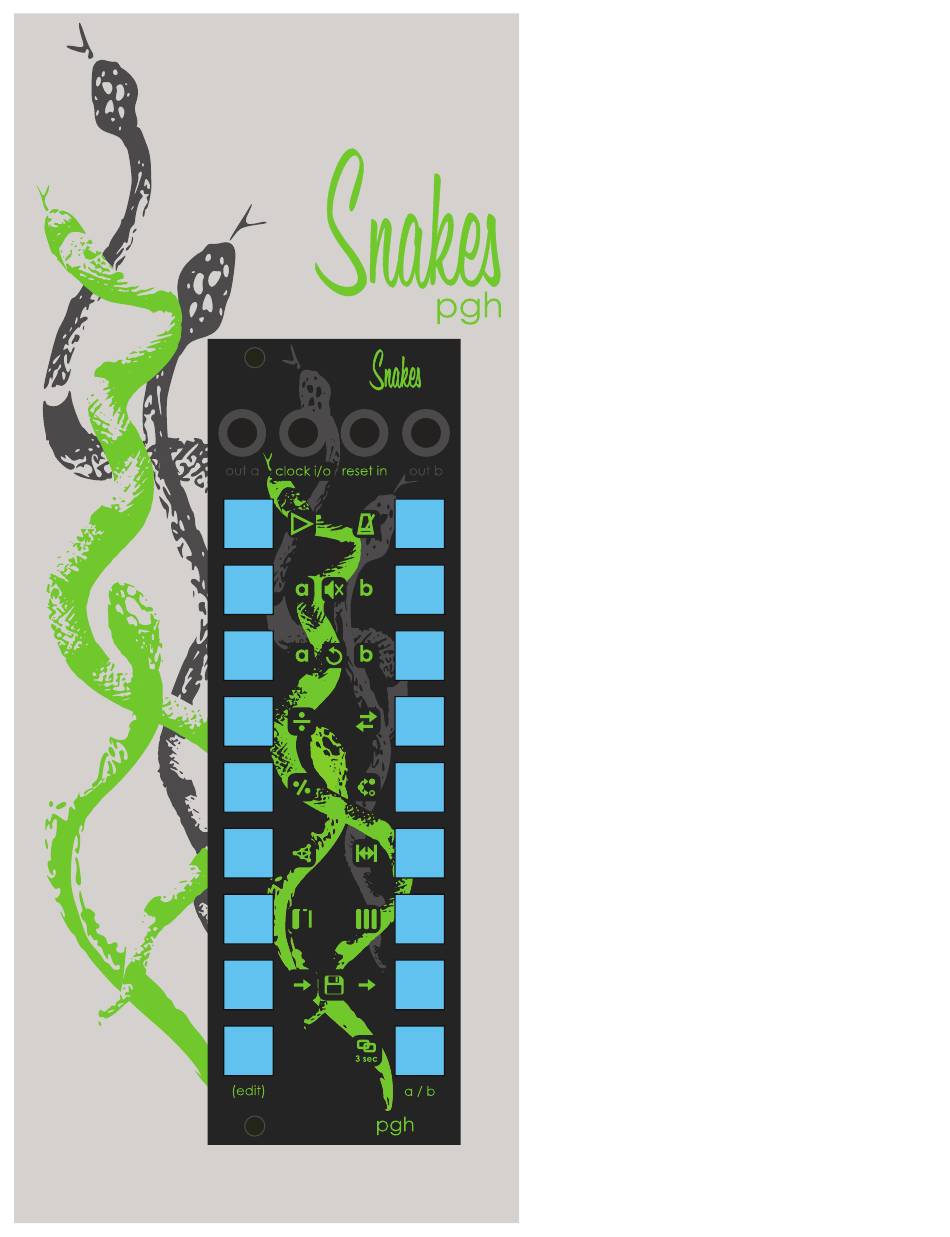

The Pittsburgh Modular Snakes is an 8hp dual 16
step gate sequencer created to work with our
drum modules or any other Eurorack modules
that enjoy gate signals. Snakes includes 2
independent 16 step sequencers. Each
sequencer offers mute, reset, clock division, per
step chance, euclidean pattern generators, per
step gate length accents, sequencer direction,
per step morphing, and per step ratcheting. The
sequences share a tap tempo clock or external
clock source, pattern memory, and can be
chained together to create a 32 step sequencer.
Size
8hp
Depth
24mm
Power
+12v 50mA / -12v 10mA
© 2024 Pittsburgh Modular Synthesizers
Advertisement
Related Manuals for Pittsburgh Modular Snakes pgh
Summary of Contents for Pittsburgh Modular Snakes pgh
- Page 1 Gate sequencers are a fun way to generate triggers and make new friends. The Pittsburgh Modular Snakes is an 8hp dual 16 step gate sequencer created to work with our drum modules or any other Eurorack modules that enjoy gate signals. Snakes includes 2 independent 16 step sequencers.
- Page 2 How to Use Snakes Step Buttons 1-16 - Press the step buttons to enable or disable the step. A/B Button - Switch between Sequence A and Sequence B. Edit Button = Secondary Function Press and hold the edit button to enable the secondary button functions.
- Page 3 Button 4 Secondary Function (Edit + Button 4) Select Clock Division for Sequence A and/or Sequence B Set Sequence A Clock Division using step buttons 1-8 (divide by 1 to divide by 8). Set Sequence B Clock Division using step buttons 9-16 (divide by 1 to divide by 8). Alternate Function (Edit + A/B Button + Button 4) Clear Clock Division Reset Sequence A and Sequence B Clock Division to divide by 1.
- Page 4 Button 9 Secondary Function (Edit + Button 9) Tap Tempo Set the tempo based on the last 2 or 3 taps. Alternate Function (Edit + A/B Button + Button 9) Select Clock Source External Clock (LED on) Internal Clock (LED off) Button 10 Secondary Function (Edit + Button 10) Mute / Unmute Sequence B...
- Page 5 Button 14 Secondary Function (Edit + Button 1) Sequence Length Select pattern length for selected sequence using step buttons 1-16. Alternate Function (Edit + A/B Button + Button 1) No function available. Button 15 Secondary Function (Edit + Button 1) Step Ratchet Set the number of sub triggers for each step of the selected sequence using step buttons 1-16.
- Page 6 Jacks Out A Jack - Sequence A gate output jack. Clock I/O Jack External clock input or internal clock output depending on the clock mode selected. Reset Input Jack External gate input used to reset Sequence A and Sequence B. If Random Gate Generator Mode is enabled, the External Gate input will morph the random gate settings.
