Summary of Contents for Palmgren 9682105

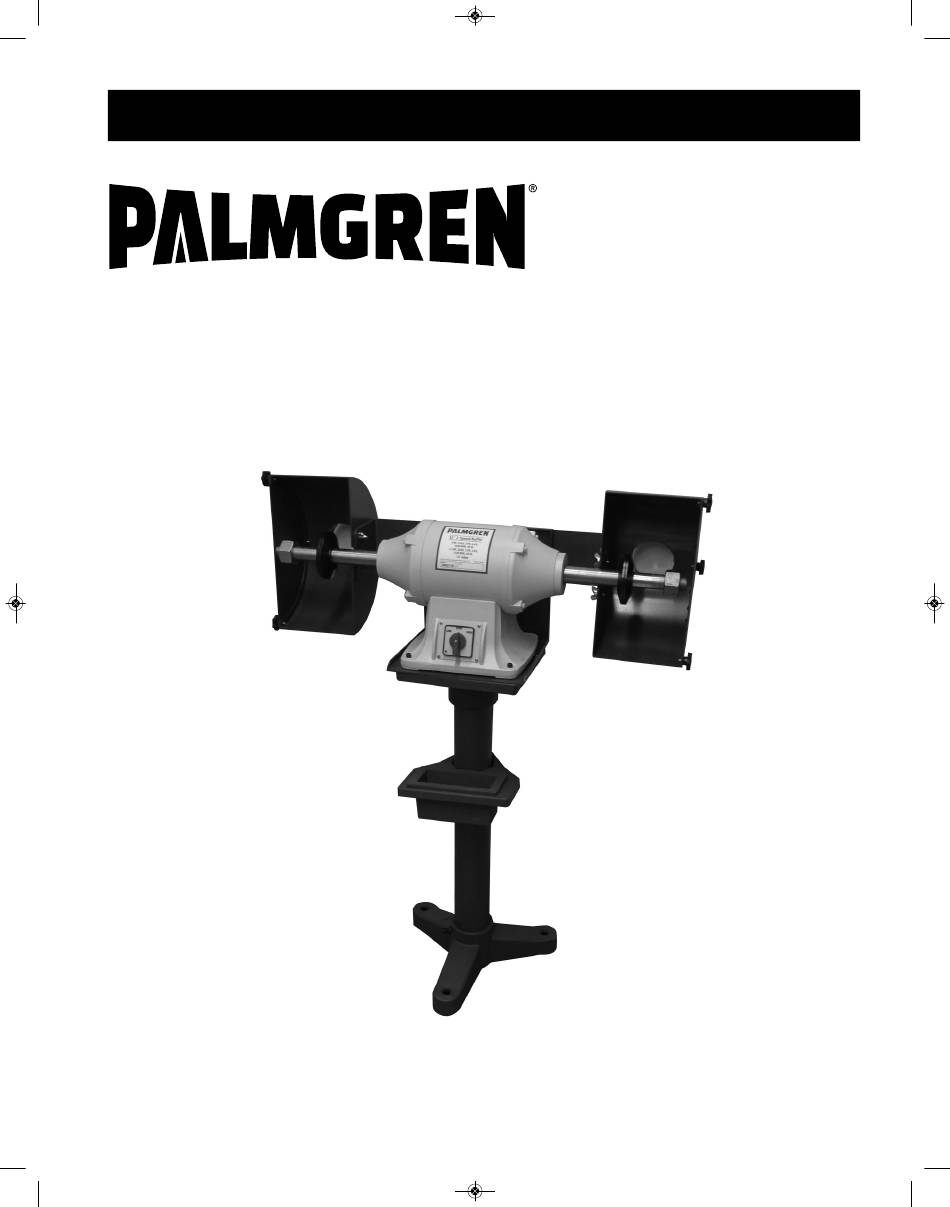

- Page 1 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Operating Manual & Parts List 9682105 12˝ dual speed Buffer with Guards Read carefully and follow all safety rules and operating instructions before first use of this product. 964852502-0722...
-
Page 2: Safety Rules
9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 safety glasses. UNPACKING • Wear face mask or dust mask if operation is dusty. • Be alert and think clearly. Never operate power tools when tired, Carton should be handled with care to avoid damage from dropping, intoxicated or when taking medications that cause drowsiness. -
Page 3: Specifications
9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 3. Attach Dust shroud to the smaller L-brackets using three M8x15 SPECIFICATIONS wing screw. Do this for both left and right guards. Model number 9682105 Description 12" Dual Speed Buffer with Guards Dimensions 38˝... -
Page 4: Operation
9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 OPERATION MAINTENANCE 1. Replacement wheels must have a minimum rated speed of WARNING: Always wear safety glasses complying with United States 3450 RPM. ANSI 287.1 before commencing power tool operation. -
Page 5: Troubleshooting
9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Buffer won’t start 1. Blown line fuse or tripped circuit breaker 1. If fuse is blown, replace with fuse of proper size. If breaker tripped, reset it 2. - Page 6 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 Figure 7 – Replacement parts illustration for Buffer Wheel Dust Shroud.
- Page 7 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 REPLACEMENT PARTS LIST FOR BUFFER WHEEL DUST SHROUD Ref. Description Part Number Qty. Main L-frame 964748301 Extension bracket (L-bracket) 964748401 Dust shroud, right 964748501 Dust shroud, left 964748601 Dust shroud cover...
- Page 8 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 Figure 8 – Replacement Parts Illustration for 12˝ Dual Speed Buffer.
- Page 9 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 REPLACEMENT PARTS LIST FOR 12˝ DUAL SPEED BUFFER Ref. Description Part Number Qty. Hex nut (LH thread) 964848701 wheel flange 964852101 Spacer 964848601 Hex nut Serrated washer Endshield Bearing Motor fan...
- Page 10 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 Figure 9 – Repair Parts Illustration for Stand 10 10...
- Page 11 9682105_oipm_En024_964852502-0722 __ 08-08-2022 Palmgren Operating Manual & Parts List 9682105 REPLACEMENT PARTS LIST FOR STAND Ref. Description Part Number Qty. 9604889.01 Column 9624899.00 Base 9624898.00 Water pot holder 9624954.00 Water pot 9624955.00 3/8-16 × 1¼” Socket head bolt 3/8-16 Hex nut Δ...
- Page 12 9682105 PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
