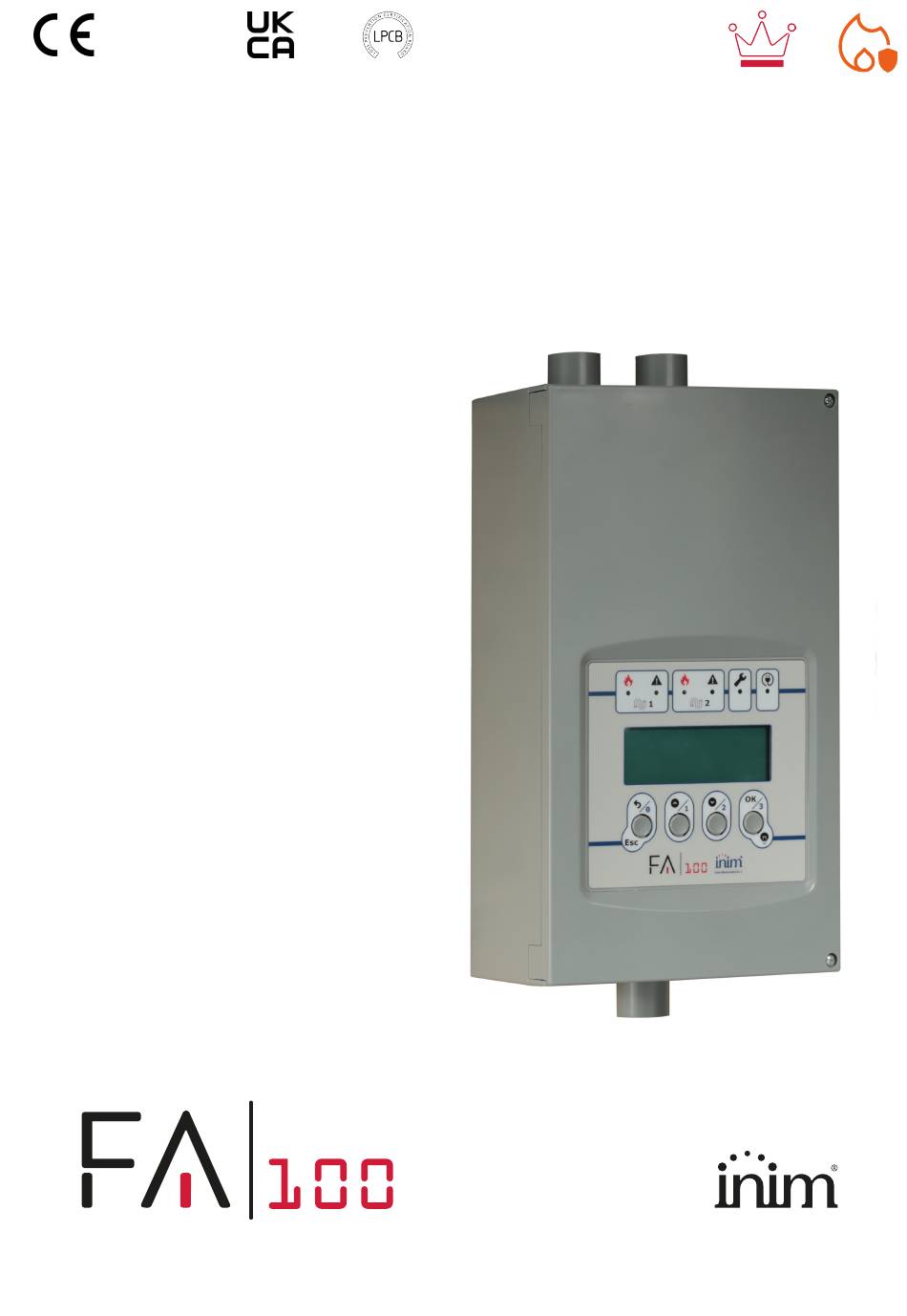

FA100
Aspirating smoke
detector
I
NSTALLATION AND
PROGRAMMING MANUAL
0832
991n/01
24
0832-UKCA-CPR-F1811

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA100 and is the answer not in the manual?

Questions and answers

Related Manuals for INIM FA100

Summary of Contents for INIM FA100

  • Page 1 EN 54-20 EN 54-17 2831 0832 991n/01 2831-CPR-F4883 0832-UKCA-CPR-F1811 FA100 Aspirating smoke detector NSTALLATION AND PROGRAMMING MANUAL  ...
  • Page 2 Inim  Electronics  S.r.l.  warrants  that  this  product  shall  be  free  of  defects  in  material  and   workmanship for a period of 24 months from the date of production. In consideration of the fact that Inim Electronics does not install directly the products here  indicated, and due to the possibility they may be used with other products not manufactured by  Inim   Electronics,   Inim   Electronics   cannot   guarantee   the   performance   of   the   security   installation. Seller obligation and liability under this warranty are expressly limited to repairing  or replacing, at seller's option, any product not meeting its stated specifications. In no case can  Inim Electronics be held responsible or liable by the buyer or any other person for any loss or ...

  • Page 3: Table Of Contents

    2.5  Service mode, disablement and bypass status Chapter 3  Feedback signals provided by FA100 3.1  LED signalling 3.2  Buzzer signalling Chapter 4  LCD display 4.1  Main screen 4.2  Warning screens Chapter 5  Access to user / installer menu 5.1  Settings 5.2  Service 5.3  View Chapter 6  Connections 6.1  Power supply 6.2  Programmable inputs 6.3  Programmable outputs 6.4  Connection to a fire-control panel Chapter 7  FA/STUDIO software Chapter 8  Plant engineering 8.1  Project 8.1.1  Use of a second FAD100 8.2  Installation 8.2.1  Installation of a second FAD100 8.2.2  Mounting the sampling pipes 8.2.3  Installation of the 504F075ABS filter 8.2.4  Sampling holes 8.2.5  Inspection and verification 8.3  Commissioning 8.3.1  Programming 8.3.2  Auto-calibration of flow 8.3.3  Functional verification 8.4  Scheduled service 8.4.1  Cleaning of the FAD100FILTER filter meshes Appendix A Accessories Appendix B Pre-calculated installations FA100 | © 2024 Inim Electronics S.r.l.

  • Page 4: Chapter 1  General Information

    To  be  used  in  environments  where  there  are  valuable  or  particularly  vulnerable  or  critical   assets such as, for example, electronic devices, server rooms, etc. Class C Detection  systems  with  normal  sensitivity  that  allow  smoke  detection  in  a  similar  way  to   traditional point detectors. To be used in environments that do not present any specific criticalities. Access levels FA100 provides the following access levels for the user: permissions Level Visualization of the LED signals, LED signals test, visualization of the information provided on  Public access the initial display screen. Access to the reading of diagnostic information, fault details, events log and programming ...

  • Page 5: Manuals

     and  to  ensure  they  have  complete  knowledge  of  the  software  in  order  to  proceed   swiftly and properly with the configuration and programming procedures. About this manual Manual code: DCMIINE0FA100 Revision: 110 Copyright The  information  contained  in  this  document  is  the  sole  property  of  Inim  Electronics  S.r.l..   Copying, reprinting or modification of this document, in part or as a whole, is not permitted  without prior authorization in writing from Inim Electronics S.r.l.. All rights reserved. Terminology Panel, control Refer to the main supervisory unit and any constituent parts of the security system device.

  • Page 6: Ce Mark

    EN54 Such indications indicate that the information and instructions refer to European standards. CE Mark These products comply with requirements stated by standards listed here below in compliance  with Regulation (EU) No. 305/2011. 2831 0832 INIM Electronics s.r.l. Via Dei Lavoratori 10 - Fraz. Centobuchi 63076 Monteprandone (AP) - Italy 2831-CPR-F4883 0832-UKCA-CPR-F1811 EN54-20:2006 EN54-17:2005 FA100 Single (expandable to two) pipe aspirating smoke detector for fire detection and fire alarm...

  • Page 7: Documents For The Users

    Electronics   S.r.l.   products   may   be   downloaded   free   of   charge   from   the   web   address   www.inim.it,   getting   access   to   Extended   Access   and   then   selecting   "Certifications"   or  ...

  • Page 8: Chapter 2  Description Of Fa100

    Chapter 2  Description of FA100 Chapter 2 Description of FA100 FA100   is   an   aspirating   smoke   detector   equipped   with   two   removable   and   independent   sampling chambers. The device is equipped with an aspirator, common to both detector modules, which draws the  air from the rooms monitored through two distinct piping networks. The  product  is  supplied  with  only  one  detection  module;  a  second  one  can  be  purchased  ...

  • Page 9: Description Of Parts

    2.1  Description of parts   Memory storage capacity for at least two months of detection data with 1-minute  sampling   Management of summer/winter time Description of parts FA100 | © 2024 Inim Electronics S.r.l.

  • Page 10: Inside The Package

    Chapter 2  Description of FA100 Cover Back Cover screws Cable entry Signalling LEDs LCD display Multifunction buttons Aspiration pipe 1 attachment fitting Aspiration pipe 2 attachment fitting Exhaust pipe attachment fitting Mounting screw location Pre-cut holes for cable entry FAD100, Detector 1 module (supplied) Compartment for detector module 2 (optional) Removable caps Mother board Aspirator   Inside the FA100 comes with: package   USB cable for programming purposes   2 100Ohm resistors   4 3k9Ohm resistors   4 1kOhm resistors   installation guide Installation and programming manual- 110...

  • Page 11: Description Of The Pcb

    100 m detector recommended 0.5m Exhaust pipe length maximum nominal 24 V range from 20 to 30 V Primary/Ancillary power-supply from external power-supply Maximum current draw 400mA @ 24V Aspiration fan speed 1500 to 4750 RPM (250 RPM resolution) I/O terminals 150mA @ 30V Maximum output current relay 2A @ 30V~, 30V Battery for date/time CR2032 FA100 | © 2024 Inim Electronics S.r.l.

  • Page 12: Connection Terminals

    Relative humidity ≤93%, without condensation Connection terminals Loop terminals FA100  has  terminals  for  two- way  connection  to  the  addressable  loop  with  Inim  Electronics   control panels(Description of the PCB, [K]): signalling of warning, alarm, faults, diagnostics  and  programming  of  detector  sensitivity,  nominal  flow  rate,  high/low  flow  fault  thresholds,  ...

  • Page 13: Ground Terminal

    “RELAY 3”, detector module 1 smoke warning level exceeded   “RELAY 4”, detector module 2 fault   “RELAY 5”, detector module 2 smoke alarm level exceeded   “RELAY 6”, detector module 2 smoke warning level exceeded Ground Functional earth terminal of the device (Description of the PCB, [V]). terminal Buttons FA100 has 4 buttons for consultation and programming. The functions of these buttons may vary, depending on the section that is active on the display  or on for how long the button is pressed. Button function PIN entry long pressing Exit the sub-menus. Pressing and holding (for over 1 s), forces return to the main  Enter the digit  “0” menu  Cancel the data entry Menu navigation  Enter the digit  upwards “1” FA100 | © 2024 Inim Electronics S.r.l.

  • Page 14: Service Mode, Disablement And Bypass Status

    Confirm entered data. The motherboard provides two buttons for resetting the device:   RESET, forces the restart of the device.   FACTORY, pressing for more than 5 seconds forces restoral of the programming  options. Service mode, disablement and bypass status The  FA100  device  can  be  placed  in  service  mode  and  individual  detector  modules  can  be   bypassed (isolated) or disabled. The various possibilities can be activated by the user in various ways and are described in the  table in order of priority: Status priority Activation mode after a reboot Disablement detector 1 By activating the option:...

  • Page 15: Chapter 3  Feedback Signals Provided By Fa100

    ON solid blinking The RUN/SERVICE switch is in the “RUN”  green position: the device is operating. The RUN/SERVICE switch is in the “SERVICE”  SERVICE yellow position: the device is in maintenance mode. If the “Automatic LED management” option is  enabled on the control panel and one of the  following faults is present:   Motherboard communication fault yellow LOOP   Isolator open.   Sampling chamber fault   Remote output monitoring fault Fast blinking (700 ms)  with insufficient loop  voltage (below 12.5V) LOOP green The fire control panel switches on the LED Single blinking on each  query received from the  control panel FA100 | © 2024 Inim Electronics S.r.l.

  • Page 16: Buzzer Signalling

    Chapter 3  Feedback signals provided by FA100 Buzzer signalling The buzzer on the motherboard provides the following signals: cadence and Signalling activation deactivation tone 200ms, 500Hz Operation on user interface rejected. beep 50ms, 3kHz Operation confirmed on user interface. Button pressed The smoke alarm threshold has been  alarm 2kHz Device reset exceeded and detected. Activation of an input with the mute  buzzer function On 200ms / Off  The smoke early-warning threshold has  early- Resetting of the smoke level (if the  200ms, 2kHz been exceeded and detected. warning automatic reset option is active) Button pressed A fault has been detected (activation of On 1s / Off 1s, ...

  • Page 17: Chapter 4 Lcd Display

    Smoke %, i.e. the percentage of smoke detected, in dB/m, compared to that set for the  alarm threshold. The device goes into alarm status when the smoke level remains above 100% for the  programmable delay time.   Flow, bar with levels, shows the level of the aspirated air flow with respect to the  thresholds set by programming:   Minimum flow threshold   Maximum flow threshold   Flow %, i.e. the percentage of measured flow detected, in l/min, with respect to a  nominal value set during programming General   Product name and brand information   Date and time   Aspiration fan speed, in RPM (fan revolutions per minute) Warning screens In the event of signalling such as a smoke alarm or ongoing fault signalling, the main screen of  the display will be replaced by warning screens. These screens will show the data relating to any ongoing signalling. In the event of several simultaneous signals, the smoke detection signals take precedence over  all other ongoing signals, in the following order: FA100 | © 2024 Inim Electronics S.r.l.
  • Page 18 Chapter 4  LCD display  1.  alarm  2.  early-warning  3.  custom If there is no signalling relating to smoke detection, any faults that may be present will be  displayed in rotation: Signalling Detector  reading in  progress PIN code  entered Installation and programming manual- 110...

  • Page 19: Chapter 5  Access To User / Installer Menu

      Language, section where it is possible select the language used by display   Faults, navigable section containing a list of current faults   Settings, section for changing the system settings and its parts. This section is available only for the installer.   Loop, section for the visualization/changing of the logic address associated with the  device when connected to the addressable loop of a Inim Electronics control panel. This section is available only for the installer.   Service, section with the list of operations to be activated for the implementation of any  maintenance procedures. This section is available only for the installer.   Date/time, section where it is possible to set the date and time used by FA100   Change my PIN, section where it is possible to set the PIN   Events log, section with the navigable list of events recorded in the memory   Info, section for viewing the diagnostic data of the device Settings The settings of FA100 and parts of the system can be accessed and changed via the following  path: Installer PIN code,  Main menu, Settings This section provides access to: FA100 | © 2024 Inim Electronics S.r.l.
  • Page 20 Current RPM, current speed value (expressed in revolutions per minute)   Setpoint RPM, speed setting value (expressed in revolutions per minute). This can be calculated by means of the FA/STUDIO   s oftware on the basis of the  layout of the pipes and the relative positioning of the sampling holes or  determined by means of the pre-calculated tables attached to this manual. EN54-20 This setting affects compliance with EN 54-20.   Save, to exit the current section saving the changes made   Auto, function which, if activated, starts the search for an aspirator speed such  that the flow of aspirated air is as close as possible to the nominal one. This operation can be carried out if necessary during the first installation phase  and after a scheduled maintenance session.   Options, section for the setting of the following options:   Automatic alarm restore, if activated, this option allows the reset of the status of  warning/alarm (LED signals, LCD display, relays/outputs status) when the  measured smoke level drops below the thresholds. If this option is not activated, reset of alarm/warning can be done manually via  the menu Service, Rearm. EN54-20 For compliance with EN 54-20, this option must not be activated.   Loop, option that enables/disables the connection of the device to the addressable  Inim Electronics loop. Installation and programming manual- 110...

  • Page 21: Service

      Reliability rate, a value that indicates the presence of particles with a diameter  of less than 1 µm in the aspirated particulate. These particles characterize a fire and allow this situation to be discriminated  against false alarms due to misleading phenomena (e.g. dust). The value ranges from 0 to 200; the maximum value indicates the minimum  probability of a false alarm.   Contamination level, level of contamination of the detector module from dust,  particles, etc.   Airflow rate, aspirated, in l/min   Temperature   WiFi, section for WiFi connection diagnostics:   Mode, selection of the operating mode of the “Transceiver station” or “Access  point” (see “Connection”)   IP address, IP address associated with FA100   Gateway, IP address of the gateway.   Network mask   MAC address FA100 | © 2024 Inim Electronics S.r.l.
  • Page 22 I/O, section where you can view the characteristics of the 4 I/O terminals with which the  FA100 motherboard is equipped. For each terminal it is possible to read, after selecting    Description, customizable label used to identify the terminal   Direction, whether input or output   Polarity, normally open / normally closed   Reference, input referred to negative (ground) and to positive (+24V)   State, visualization of the terminal status (active, stand-by, interconnection fault)   Relay, section where it is possible to view the characteristics of the 6 Relay terminals  with which the FA100 motherboard is equipped. For each terminal, after its selection, it  is possible to read:   Description, customizable label used to identify the terminal   State, visualize the terminal status (active, stand-by)   Power supply, section where you can view the current voltage of both the primary power  supply, supplied via the “PRIM” terminals, and the auxiliary power supply, supplied via  the “AUX” terminals.   Firmware version, section where it is possible to consult the firmware revision installed  on the FA100 motherboard, loop interface and detectors in use. In this section it is also possible to view the version of the programming data (it is  increased with each programming change).   Serial numbers, section where it is possible to consult the serial number of the FA100  motherboard, loop interface and the detectors in use. Installation and programming manual- 110...

  • Page 23: Chapter 6 Connections

    6.1  Power supply Chapter 6 Connections The connections described below must be made with a shielded bipolar cable. Unless otherwise indicated, the shield should not be connected. Power supply The power-supply of FA100 is possible through the “PRIM” terminals (Description of the PCB, [L]). PRIM. However, it is possible to apply a connection to obtain a redundant power supply, if the primary  power supply fails, through the “AUX” terminals (Description of the PCB, [M]). FA100 | © 2024 Inim Electronics S.r.l.

  • Page 24: Programmable Inputs

    Chapter 6  Connections EN54-4 It is necessary to use a power supply that complies with the EN 54-4 standard. Programmable inputs When the “I/O 1 .. 4” terminals are programmed as inputs they can be used to activate device  functions. The input programming options are available via FA/STUDIO software. Following  are  some  examples  of  wiring  diagrams  for  inputs  based  on  the  “Monitoring”  and   “Reference” programming options: “Reference” option Monitoring positive negative disabled enabled 120 k 270 k 3900 1000 The inputs have pre-established thresholds for switching between one status and another (for  example for the transition from stand-by to activated status). The FA/STUDIO software permits ...

  • Page 25: Programmable Outputs

    6.3  Programmable outputs Programmable outputs FA100 is equipped with the following outputs:   the relay outputs “RELAY 1 .. 6”, potential free switching contacts   the “I/O 1 .. 4” terminals, when programmed as open-collector outputs Reference wiring diagrams for relays and I/O outputs are shown below: RELAY n   The characteristics of the outputs are fully programmable and these options are available via  FA/STUDIO software. The activation of the outputs occurs in correspondence with the programmed events; however,  activation can be conditioned by the status of one or more “I/O 1..4” inputs (AND or OR logic). Connection to a fire-control panel Conventional To connect FA100 with a conventional fire control panel it is necessary to use a group of relay  outputs connected to a control panel zone and an input for monitoring. connection During programming it is necessary to characterize these outputs according to the signal to be  reported: FA100 | © 2024 Inim Electronics S.r.l.

  • Page 26: Analog Connection

    Chapter 6  Connections   a relay activated by a smoke alarm event   a relay activated by a fault event   a relay activated by an early-warning smoke-event   an input with “conventional zone monitoring” function Below is a typical connection to a SmartLine conventional fire panel from Inim Electronics for  the reporting of fault and alarm signalling: ALARM FAULT PRIM. ZONE Below is a typical connection to a SmartLine conventional fire panel from Inim Electronics for  the reporting of fault, warning and alarm signalling: WARNING ALARM FAULT PRIM. 1000 ZONE Analog To connect FA100 to a Inim Electronics analogue fire detection control panel, it is necessary to  connection use the “Loop” terminals and then to address the FAD100 detector modules in use. The control  panel will see such modules as smoke detectors on the loop. Installation and programming manual- 110...
  • Page 27 6.4  Connection to a fire-control panel PRIM. LOOP The cable shield should be connected only to the control panel earth terminal, as shown in the  figure. FA100 | © 2024 Inim Electronics S.r.l.

  • Page 28: Chapter 7  Fa/Studio Software

    FA/STUDIO software The  FA/STUDIO  software  allows  the  design  of  an  aspirating  smoke  detection  system,  the   programming of the FA100 devices and the related diagnostic functions. The software manages a database relating to aspirating smoke detection systems: layout of  the   pipes   (number   of   branches,   length   of   branches,   etc.),   position   and   diameter   of   the  ...
  • Page 29   Diagnostics, through a USB or Wi-Fi (optional) connection, allows you to read  from the FA100 device a series of useful data for checking the operating status  and for diagnosing any problems. The data is grouped into the following sub-sections:   Motherboard status, allows visualization of the presence of faults, the  status of activation/fault of the input output terminals and relays and the  measurements of the aspiration speed and supply voltages.   Real-time data, graph over time of the data measured in real time by  the detector modules (smoke level, contamination, flow rate and air  temperature).   Data history (data logger), graph over time of the data stored by the  detector modules in a non-volatile memory of the device (smoke level,  contamination, flow rate and air temperature). The data is related to the  recorded alarm/fault events.   Events log, reading of fault/alarm events stored in the non-volatile  memory of the device.   Contact Inim Electronics S.r.l. to participate in training courses that include the use of the  FA/STUDIO software. On the Website of Inim Electronics tutorials are available relating to the use of the software. FA100 | © 2024 Inim Electronics S.r.l.

  • Page 30: Chapter 8  Plant Engineering

    Chapter 8  Plant engineering Chapter 8 Plant engineering Building an aspirating smoke detection system requires the completion of four basic steps:  1.  project design  2.  installation  3.  commissioning  4.  scheduled service Input data: • Dimensions of the environments (possible planimetry) • Environmental conditions • Local reference legislation 1. Project design Necessary tools: FA/Studio or pre-calculated tables Output data: •...

  • Page 31: Project

      Only one dust filter (504F075ABS) and one condensate trap (WT025) can be used for  each detector module. The maximum distance of these components from the FA100 device is 2m. Sampling  holes must not be positioned in the section of the pipe between the FA100 device and  the dust filter or the condensate trap. ≥ 25 cm ≥ 10 cm ≥ 25 cm ≥ 25 cm ≥ 25 cm ≥ 25 cm Sampling holes The maximum number of sampling holes that can be drilled in the pipes depends on the  sensitivity class chosen: Sensitivity class Number of holes FA100 | © 2024 Inim Electronics S.r.l.
  • Page 32 During  the  design  phase,  in  order  to  simplify  the  correct  maintenance  and   cleaning of the pipes, the system must include the appropriate accessories for  the temporary removal of part of the pipes, such as the inspectable fittings  (SAUN800250RS) and the three-way valves (2510025). Below are some examples of use of the three-way valve (2510025): Normal operation Service: pipe  cleaning Service: test high  flow fault Valve position/Air  flow Aspirator Separate environments Care should be taken in cases where the  FA100 device is installed in a separate  environment from that protected  (environment where the sampling holes  are located). If there is any possibility of a pressure  difference between the two environments,  it is necessary to provide for the return of  Max 10 m the air from the exhaust to the protected  room. Condensation In environments with particular conditions  of humidity or high temperature  differences which predict the formation of  condensation in the pipes, it is necessary  to install a condensate trap (WT025) in ...

  • Page 33: Expansion Joints

    To  determine  the  distance  between  two  expansion  joints,  it  must  be  considered  that  the   expansion coefficient of one meter of ABS TUBOABS0250M pipe is approximately equal to 0.1  mm / °C. 8.1.1 Use of a second FAD100 The FA100 can house a second FAD100 detector module  (Description of parts, [N]) that  offers the designer the possibility of having two protected areas, with the relative  signalling clearly distinct. During the programming phase it will be possible to combine these signals in order to  process the output signal to the fire control panel. However, the piping system of one detector must remain separate and independent from  the system relating to the other detector and there must be no fittings or joints between  the two systems. In the case that one of the two detectors is no longer used, it must be disabled, removed  from the device and end caps must be reinserted in the vicinity of the appropriate place  (Description of parts, [O]). Installation FA100 | © 2024 Inim Electronics S.r.l.

  • Page 34: Installation Of A Second Fad100

    Remove the insulating tab on the CR2032 battery (Description of the PCB, [B]).  5.  Install the aspiration system components.  6.  Check the system. The FA100 device and any accessory components that require regular maintenance, such as  the dust filter (504F075ABS) or the condensate trap (WT025), must be installed in an easily  accessible place. The FA100 device and the last section of the inlet pipes must be positioned away from heat  sources and direct sunlight. 8.2.1 Installation of a second FAD100 The  FAD100  detector  modules  cannot  be  inserted  or  removed  when  the  FA100  device  is   powered. Installation and programming manual- 110...

  • Page 35: Mounting The Sampling Pipes

    90° To obtain a precise cut and to avoid chipping, the use of a pipe cutter is recommended. By  means of this tool it is also possible to obtain the flaring useful during the insertion process. The insertion of the pipes into their locations must be done thoroughly,  ensuring the pipe penetrate as much as possible. Note The pipe and fittings used for the aspirating pipe system must comply with requirements of Class  1131 according to EN 61386-1 standard. In order to guarantee that the aspiration system pipes are perfectly sealed, the connection  between the pipes and the fittings must be carried out using the special sealant glue available  in packages of 250 ml (SGLUEN0250) or 500 ml (SGLUEN0500). To simplify maintenance and possible replacement operations, the final section of the pipeline  connected to the 1 and 2 aspiration pipe fitment (Description of parts, [H], [I]) and to the  exhaust pipe fitment (Description of parts, [J]) of the FA100 device must not be glued. 8.2.3 Installation of the 504F075ABS filter The 504F075ABS should be installed along the sampling pipe of aspirating smoke detection  systems, in the vicinity of the detector inlet. The maximum distance of the filter from the FA100 device is 2 m. Sampling holes must not be made in the section of piping between the FA100 device and the  filter. Note Protect from direct sunlight. FA100 | © 2024 Inim Electronics S.r.l.

  • Page 36: Sampling Holes

    Chapter 8  Plant engineering FA100 Tappo / Cap 504F075ABS Respect the direction of the air flow indicated by the arrows positioned near the inlet mouth  (marked “IN”, aspirating system side) and the outlet mouth (marked “OUT”, aspirating smoke  detector side ). To   seal   the   fittings,   use   PTFE   (Teflon)   tape   on   the   threaded   side   and   SGLUEN0250   /  ...

  • Page 37: Commissioning

     2.  Proceed with the auto-calibration of the nominal airflow phase: Installer PIN code,  Main menu, Settings, Detectors  3.  In this section, select the first detector then go to Auto!, press “OK” and wait for the  operation to finish.  4.  If the second detector module is also installed, move up the screen within the same  section until selected, then go back and press “OK” on Auto! to achieve auto-calibration  on it.  5.  Compare the nominal flow value obtained with that defined during the system design  phase. If the values deviate by 20% or more, the speed of the aspirator can be changed  (up to a maximum of ±1000 RPM) and the auto-calibration operations repeated.  6.  Go to Save! and press “OK” to save the nominal flow values determined by the auto- calibration operation. At the end of this phase an air flow measurement that falls within the fault thresholds must be  obtained. If it is not so, it will be necessary to repeat the operations described in paragraph  "Inspection and verification". 8.3.3 Functional verification Air flow Check that the FA100 device does not signal the presence of faults, if so, close a number of  sampling holes in such a way as to reduce the intake air flow by at least 20%. checking FA100 | © 2024 Inim Electronics S.r.l.

  • Page 38: Scheduled Service

    In   order   to   maintain   the   efficiency   of   the   aspirating   smoke   detection   system,   it   is   recommended to carry out a series of checks and service operations every six months. The frequency of these maintenance sessions must be increased in the case of installations in  dusty environments, with frequent changes in temperature or with a high level of humidity. Scheduled service involves the operations described below (possibly in the order indicated):   Make sure the operations on the FA100 aspirating system described below do not lead to  any false alarm/fault signals on the fire detection system (activation of visual/audible  alarms, blocking, etc.)   Check for any active alarm or fault signals on the FA100   i nterface that are reported on  the fire control panel.   Check the functioning of the signalling LEDs on the front of the FA100 (long press the  “OK” button).   Check the events log for any alarm or fault messages. It is also recommended to read  the historical data (data log) with the FA/STUDIO software to check for any critical  issues (obscuration or flow values close to the alarm/fault thresholds).  ...
  • Page 39 A  high  quantity  of  dust  or  dirt  on  the  meshes,  or  the  presence  of  a  contamination  fault,   suggests the need to clean the interior of the detector module (sampling chamber). For this kind of intervention also, the use of cans of “compressed air” is recommended. Holding  the  can  nozzle  approximately  5cm  from  the  inlet/outlet  vents,  spray  air  into  the  detector   module. FA100 | © 2024 Inim Electronics S.r.l.

  • Page 40: Appendix A Accessories

    Appendix A Accessories Appendix A Accessories Accessories for Code description FA100 FAD100 Detector module FAD100FILTER Metal mesh with gasket FA100-WIFI Wi-Fi interface module   Accessories for Code description dimensions package aspirating systems internal Ø 21mm TUBOABS0250M Pipe external Ø 25mm 25 bars 3m bar SASO100250RS Coupling sleeve for Ø 25mm pipe packs of 10 SATE400250RS T-piece for Ø 25mm pipe packs of 10 90° bend...
  • Page 41 250ml SGLUEN0500 Sealing glue 500ml 17250019050 Flexible transparent spiral pipe external Ø 25mm 10mt roll MPE1008025M- Red flexible pipe for sampling capillaries external Ø 10mm 25Mt roll 2510025 3-way pvc/epdm ball valve for pipes for Ø 25mm pipe F0.75 medium filter complete with RL5  3/4”G threaded  504F075ABS cartridge connections AAD12025CRS Male/Female fitting from 3/4”G to 25 mm Condensate trap for particularly cold  WT025 environments Sampling hole identification labels with  200 pack  LABEL23X10 written “ASPIRATING POINT” roll Kit for the creation of a sampling  CAPKIT2510SR capillary comprising: FA100 | © 2024 Inim Electronics S.r.l.
  • Page 42 Appendix A Accessories Code description dimensions package for Ø 25mm pipe with Ø      T-piece   10mm pipe outlet from 3/8”G to 28mm 1 bulkhead 35mm length       for Ø 10mm pipe     1 gasket 3/8”G   Installation and programming manual- 110...

  • Page 43: Appendix B Pre-Calculated Installations

     the  table  provides  pre- calculated  programming  data,  to  be  entered  via  the  device   programming menu. The tables show, distributed over the rows, the number of branches and their lengths, divided  by intervals. “Length” is the distance the air drawn into the pipe travels from the most distant  hole to the detector. The columns show the required number of holes for each branch. The holes are numbered from  the nearest (hole #1) to the furthest (hole with maximum number) from the detector. Parameters In the boxes at the intersection of number/length of branches and number of holes are the  programming parameters to be used:   Holes diameter, in mm (“Ø”)   Detection sensitivity (depending on sampling hole balance, “S”)   Aspiration speed, in RPM (fan revolutions per minute, “V”)   Expected airflow, in l/min (“F”)   Balancing of the air aspiration between the holes (“B”)   Transit time of the smoke from the most distant hole to the detector (“T”) The calculation of this parameter is based on the length of the branches. Since the  length is indicated in the table as a range, the calculation is carried out using the  average length. FA100 | © 2024 Inim Electronics S.r.l.

  • Page 44: Conditions Of Use

    Appendix B Pre-calculated installations These parameters, in addition to the length of the branches and the total length of the piping,  determine the validity of the system for the selected sensitivity class.   Conditions of The use of these tables requires the following constraints to be satisfied:   The pipe system connected to the detector is considered as divided into 1, 2 or 4  branches.   All the branches into which the installation is divided are equal to each other in terms of  length and number of holes. “Branch length” stands for the distance from the fork (T fitting) to the last hole (farthest  from the FA100 device).   The sampling holes must be equidistant from each other (with a 10% tolerance).   For each pipe line only one dust filter may be used, this must be positioned upstream of  the detector and downstream of any sampling holes.   For each line only one condensate trap may be used, this must be positioned upstream  of the detector and downstream of any sampling hole.   The length of the drain piping should not exceed 3 meters.   If both FAD100 detector modules are used for only one FA100, both pipes must have the  same class, same filter and condensate trap, the same number of branches, length and  number of holes. The sampling holes must be equidistant from each other (with a maximum tolerance of  10%).   The distance between the FA100 device and a T fitting must be at most 10% of the  branch length.   The ambient temperature must be between 10 and 40°C. Design The  details  of  the  project  design  constraints  that  must  be  respected  are  provided  in  the  ...
  • Page 45 Constraint 1500 – 4750 RPM (range, in steps of 250  RPM) internal 21mm Pipe diameter external 25mm Capillary tube max length 0; 2; 2.5; 3.0; 3.5; 4.0; 4.5; 5.0; 5.5;  Diameter of sampling holes on standard pipe 6.0; 6.5; 7.0; 7.5; 8.0; 10.0 (mm) 0; 2; 2.5; 3.0; 3.5; 4.0; 4.5; 5.0; 5.5;  Diameter of sampling holes on capillary 6.0; 6.5; 7.0; 7.5; 8.0 (mm) FA100 | © 2024 Inim Electronics S.r.l.
  • Page 46 Table A1 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch Number of...
  • Page 47 Table A2 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch Number of...
  • Page 48 Table B1 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch Number of...
  • Page 49 Table B2 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch Number of...
  • Page 50 Table C1, holes from 1 to 18 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of...
  • Page 51 Table C1, holes from 19 to 36 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 52 Table C1, holes from 37 to 44 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 53 Table C2, holes from 1 to 18 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 54 Table C2, holes from 19 to 26 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 55 Table A1_DF 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter Condensation trap diameter of the hole "n" (mm) Øn detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 56 Table A2_DF 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 57 Table B1_DF 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 58 Table B2_DF 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap diameter of the hole "n" (mm) Øn detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 59 Table C1_DF, holes from 1 to 18 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 60 Table C1_DF, holes from 19 to 36 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 61 Table C1_DF, holes from 37 to 42 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 62 Table C2_DF, holes from 1 to 18 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%)
  • Page 63 Table C2_DF, holes from 19 to 27 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%)
  • Page 64 Table A1_CT 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors trap for condensation Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 65 Table A2_CT 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 66 Table B1_CT 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors trap for condensation Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 67 Table B2_CT 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s) Number of holes for each branch...
  • Page 68 Table C1_CT, holes from 1 to 18 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors trap for condensation Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 69 Table C1_CT, holes from 19 to 36 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors trap for condensation Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 70 Table C1_CT, holes from 37 to 46 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors trap for condensation Anti-dust filter Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 71 Table C2_CT, holes from 1 to 18 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%)
  • Page 72 Table C2_CT, holes from 19 to 36 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%)
  • Page 73 Table A1_DF_CT 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 74 Table A2_DF_CT 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap trap for condensation Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 75 Table B1_DF_CT 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 76 Table B2_DF_CT 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap trap for condensation Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min) air aspiration balancing between the holes (%) transit time of the smoke (s)
  • Page 77 Table C1_DF_CT, holes from 1 to 18 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min)
  • Page 78 Table C1_DF_CT, holes from 19 to 36 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min)
  • Page 79 Table C1_DF_CT, holes from 37 to 41 1 branch 2 branches 4 branches Detection class detector 1 module Number of detectors filter for dust Anti-dust filter trap for condensation Condensation trap Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min)
  • Page 80 Table C2_DF_CT, holes from 1 to 18 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap trap for condensation Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min)
  • Page 81 Table C2_DF_CT, holes from 19 to 27 1 branch 2 branches Detection class detector 1 module Number of detectors detector 2 module Anti-dust filter filter for dust Condensation trap trap for condensation Øn diameter of the hole "n" (mm) detection sensitivity (10 dB/m) aspiration speed (RPM) expected airflow (l/min)
  • Page 82 Notes FA100 | © 2024 Inim Electronics S.r.l.
