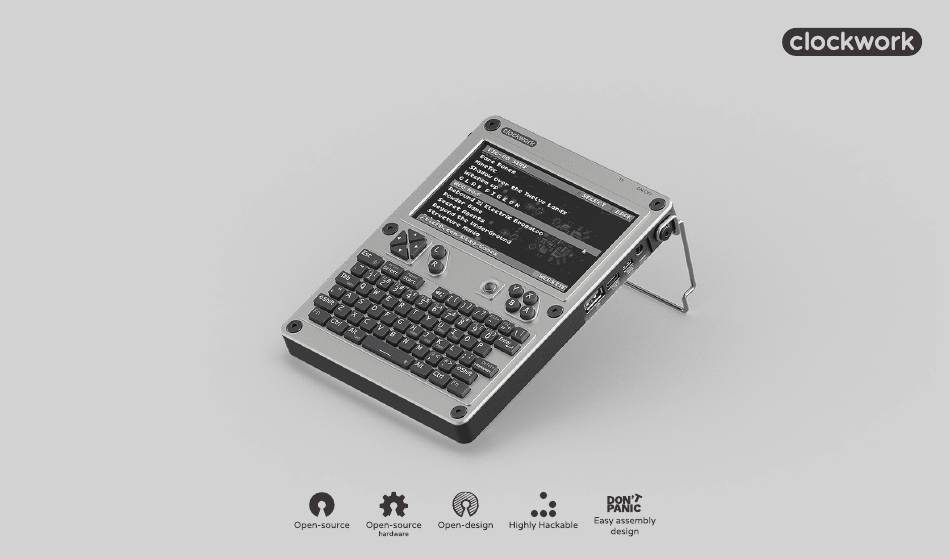

Summary of Contents for Clockwork uConsole
- Page 1 Assembly Guidelines...
- Page 4 Index & Check List A. Mount the Screen J. Mount the Battery Module B. Mount the Keyboard K. Mount the 18650 Batteries C. Mount the Front L. Mount the Thermal Pad D. Mount the Mainboard M. Mount the Back Shell E.
-
Page 5: Important Reminders
Do not use uConsole’s USB port to charge other electronic devices such as smartphones. Please ensure a Micro SD card with the correct operating system has been inserted into uConsole before booting. Please use a high-quality phone charger (5V 2A) and USB-C cable to power and charge the product. - Page 6 Please buy 18650 batteries that are certified in accordance to local laws and regulations. In the uConsole battery container, "+" marks the positive electrode, and "-" the negative electrode. Please make sure that the 18650 batteries are inserted in the appropriate directions.
- Page 7 A. Mount the Screen...
- Page 8 B1. Mount the Keyboard...
- Page 9 B2. Mount the Keyboard...
- Page 10 C1. Mount the Front Remove the protective layer...
- Page 11 C2. Mount the Front Shell...
- Page 12 D1. Mount the Mainboard...
- Page 13 D2. Mount the Mainboard...
- Page 14 D3. Mount the Mainboard...
- Page 15 E. Mount the Core...
- Page 16 F1. Mount the Wi-Fi Antenna Remove the protective layer...
- Page 17 F2. Mount the Wi-Fi Antenna For non-CM4 core, please connect the Wi-Fi For CM4 core antenna connector on the mainboard.
- Page 18 G. Mount the Speakers Remove the protective layers...
- Page 19 H1. Mount the Ext. Module...
- Page 20 H2. Mount the Ext. Module...
- Page 21 I1. Mount the 4G Antenna Remove the protective layer Insert a SIM card...
- Page 22 I2. Mount the 4G Antenna...
- Page 23 J. Mount the Battery Module...
- Page 24 K. Mount the 18650 Batteries CHECK!
- Page 25 L. Mount the Thermal Pad Remove the protective layers...
- Page 26 M. Mount the Back Shell...
- Page 27 N1. Mount the Stand...
- Page 28 N2. Mount the Stand...
- Page 29 O. Insert the MicroSD & Power On CHECK! Power ON - Pressing and holding the "ON/OFF" button for 2 seconds. It may take about 60 seconds to boot up for the first time.
- Page 30 The Interfaces MicroSD Power Key 3.5mm Headphone Micro-HDMI USB-C Charging USB-A...
- Page 31 Power On Warranty Make sure that the batteries are fully charged and installed The uConsole Kit has a 6-month warranty starting since delivery correctly. is made. The uConsole can be powered by 5V-2A USB-C power supply. Please keep the receipt or screenshot with delivery date.
- Page 32 Notes...
