Summary of Contents for Tobii Dynavox TD Navio Mini

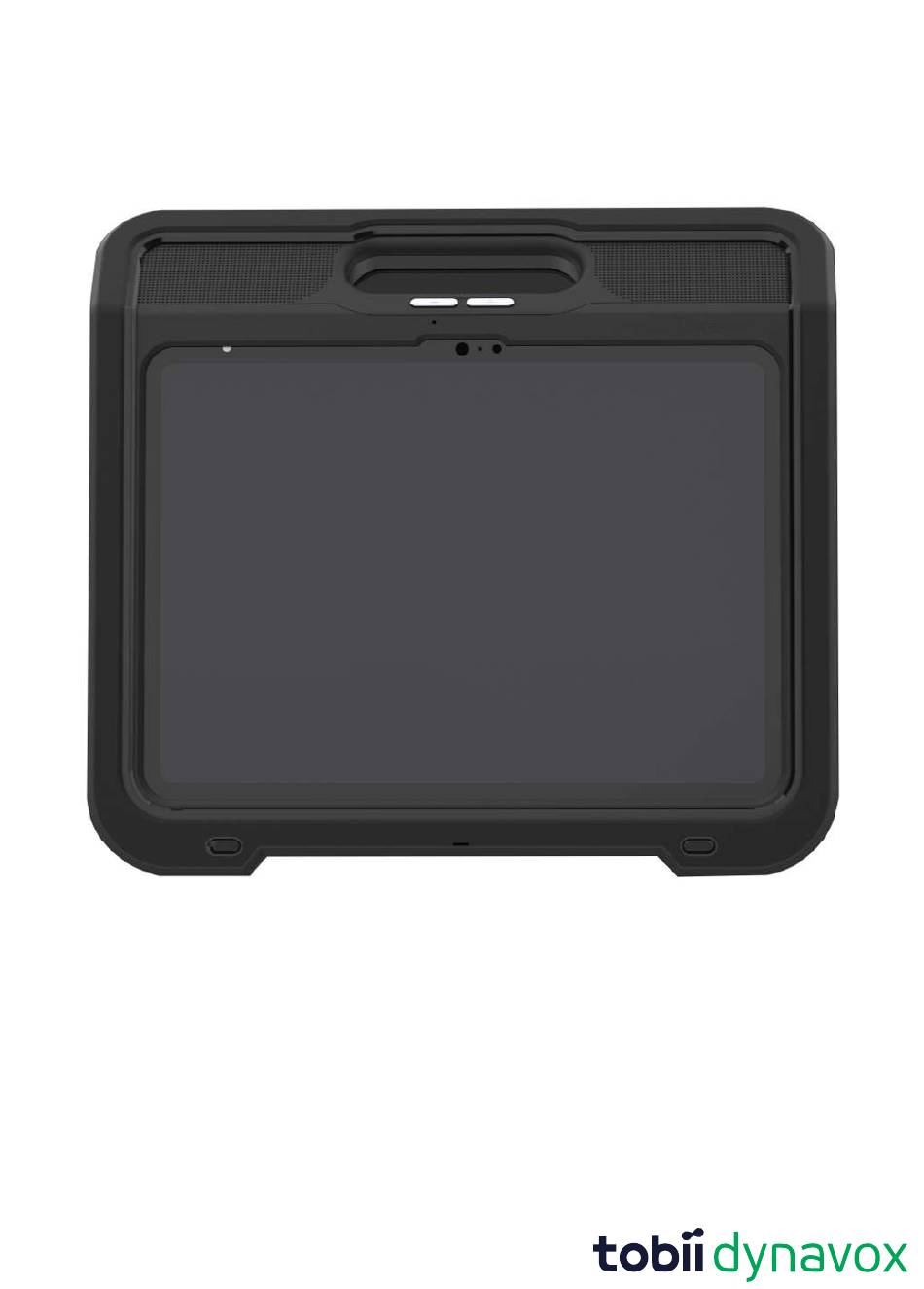

- Page 1 TD Navio User's Manual...
- Page 2 Content subject to change without notice. Please check Tobii Dynavox website. www.TobiiDynavox.com for updated versions of this document.
-
Page 3: Table Of Contents
Overview of the TD Navio ....................Key Features........................Product Layout........................3.2.1 Mini, Midi and Maxi .................... 3.2.2 Ports, Sensors, and Device Buttons ..............3.2.2.1 TD Navio Mini.................. 3.2.2.2 TD Navio Midi.................. 3.2.2.3 TD Navio Maxi................. Pre-installed Software and Firmware.................. Batteries in TD Navio ....................... Batteries.......................... - Page 4 iPadOS..........................Product Care ........................Expected Service Life ......................Temperature & Humidity ..................... 6.2.1 General Use - Operating Temperature .............. 6.2.2 Transportation and Storage ................6.2.3 Charging......................Cleaning..........................6.3.1 Cleaning of the Speakers................... Placement ........................... Transporting the Device...................... Disposing of the Device ...................... Appendix Support, Warranty, Training Resources.................
-
Page 5: Introduction
To ensure the optimal performance of this product, please take the time to read this manual carefully. The TD Navio device is a Tobii Dynavox Speech Generating Device (SGD) intended for use as an augmentative communication aid for those with speech, language, physical, and cognitive disabilities. -
Page 6: Product Label
Symbol or Markings Description Japanese certification for electrical/electronic appliances and components. China Compulsory Certificate. China RoHS compliance. Fulfils relevant and applicable safety requirements for the US and Canada. Indoor use only. The UL Energy Verified Certification Mark for Canada. The most recognized International Safety mark. Follow Instructions for Use DC Power connector Reduction of Hazardous Substances directive compliant. -
Page 7: Intended Use
TD Navio Mini TD Navio Midi and TD Navio Maxi Lift the Foldable Leg to access the product label. Intended Use The TD Navio is intended primarily as a speech generating device. The TD Navio is intended to provide, and act as, a compliment for everyday communication for people who have challenges in their ability to speak due to injury, disability or illness. -
Page 8: Package Contents
It is recommended to keep the original packaging materials for the TD Navio. If the device needs to be returned to Tobii Dynavox for warranty-related issues or repair, it is beneficial that the original packaging or equivalent is used for shipping. Most shipping carriers require at least 2 inches of packing material around the device. -
Page 9: Safety
Nevertheless, in order to ensure safe operation of your TD Navio, there are a few safety warnings to bear in mind: No modification of this equipment is allowed. Repairs to a Tobii Dynavox device must only be performed by Tobii Dynavox or a Tobii Dynavox authorized and approved repair center. -
Page 10: Power Supply And Batteries
TD Navio device. For safe operation of the TD Navio device, use only the charger and accessories approved by Tobii Dynavox. The batteries are only to be changed by Tobii Dynavox personnel or specified designees. Replacement of lithium batteries or fuel cells by inadequately trained personnel could result in a hazardous situation. -
Page 11: High Temperature
If the Power Supply Cord is damaged, it needs to be replaced by Service Personnel only. Do not use the Power Supply Cord until replaced. Disconnect the AC power plug of the Power adapter from the wall socket when not charging the device and disconnect the power cable from the device. -
Page 12: Third Party
Third Party Tobii Dynavox assumes no responsibility for any consequence resulting from use of the TD Navio in a manner inconsistent with its intended use, including any use of the TD Navio with third-party software and/or hardware that changes the intended use. -
Page 13: Overview Of The Td Navio
Overview of the TD Navio Key Features The TD Navio has several built-in features. ● 2 × Internal speakers ● 2 × 3.5 mm switch ports ● 1 × USB-C Charging port ● 1 × Microphone ● 1 × Audio jack Product Layout 3.2.1 Mini, Midi and Maxi... -
Page 14: Ports, Sensors, And Device Buttons
3.2.2 Ports, Sensors, and Device Buttons The graphics in this section shows the TD Navio with the Protective Case on the device. 3.2.2.1 TD Navio Mini Position Description Power button Switch Ports Reset Button 1 Reset Button 2 Front Camera... -
Page 15: Td Navio Midi
3.2.2.2 TD Navio Midi Position Description Power button Switch Ports Microphone Front Camera Volume Down Volume Up Speakers Strap Connection Points Position Description USB-C Charging Port Audio Jack Port Back Camera Reset Button 1 Reset Button 2 Foldable Leg Holes for Mounting Plate 3.2.2.3 TD Navio Maxi Position... -
Page 16: Pre-Installed Software And Firmware
Organization during initial setup. If this happens, contact Tobii Dynavox Support. Remote management, also known as MDM, allows Tobii Dynavox to send software and software updates to your iPad over Wi-Fi. Through remote management Tobii Dynavox will only have access to information about your iPad hardware specifications, OS version, installed apps, and security settings. -
Page 17: Batteries In Td Navio
The battery may need to be replaced every 12 to 18 months with typical use. Don’t try to replace the battery yourself. The battery is internal and is not intended for service or replacement by the user or anyone other than a Tobii Dynavox technician. For battery storage and charging temperatures, see 6.2.2 Transportation and Storage, page 20. -
Page 18: Using The Td Navio
Using the TD Navio Starting the TD Navio To start the TD Navio press the Power button, see 3.2.2 Ports, Sensors, and Device Buttons, page 14 for reference. The TD Navio is designed to remain powered on. Powering Down the TD Navio To power down the TD Navio follow these steps: Hold down the Power button and one of the volume buttons (either one doesn’t matter) at the same time, see 3.2.2 Ports, Sensors, and Device Buttons, page 14 for reference. -
Page 19: Battery Status And Power Saving
Flip the TD Navio 180° over with the screen facing up. Align the hooks on the top of the front piece of the Protective Case with the top of the TD Navio. Squeeze around the edges to click it together. Place the TD Navio with the face down on a flat surface. -
Page 20: Product Care
Product Care Expected Service Life The expected service life of the TD Navio and power adapter is 5 years. Temperature & Humidity 6.2.1 General Use - Operating Temperature The TD Navio is best kept in dry conditions at room temperature. The recommended range for temperature and the humidity value for the device is as follows: ●... -
Page 21: Transporting The Device
It is recommended to keep the original packaging materials for the TD Navio. If the device needs to be returned to Tobii Dynavox for warranty-related issues or repair, it is beneficial that the original packaging or equivalent is used for shipping. Most shipping carriers require at least 2 inches of packing material around the device. -
Page 22: Appendix A Support, Warranty, Training Resources
It is recommended to keep the original packaging materials for the TD Navio. If the device needs to be returned to Tobii Dynavox for warranty-related issues or repair, it is beneficial that the original packaging or equivalent is used for shipping. Most shipping carriers require at least 2 inches of packing material around the device. -
Page 23: Appendix B Compliance Information
(2) this device must accept any interference received, including interference that may cause undesired operation. Modifications not expressly approved by Tobii Dynavox could void the user’s authority to operate the equipment under FCC rules. - Page 24 ● Battery Safety IEC 62133 and IATA UN 38.3 The device has been tested to comply with IEC/EN 60601-1 Ed 3.2, EN ISO 14971:2019 and other relevant standards for the intended markets. This device meets the necessary FCC requirements in accordance with CFR Title 47, Chapter 1, Subchapter A, Part 15 and Part 18.
-
Page 25: Appendix C Guidance And Manufacturer's Declaration
Appendix C Guidance and Manufacturer’s Declaration Below cables information are provided for EMC reference Cable Max. cable length Shielded/unshielded Number Cable classification AC Power Cord 0.9 m Unshielded 1 Set AC Power DC Power Line (USB 1.6 m Shielded 1 Set DC Power Cable) Important information regarding Electro Magnetic Compatibility (EMC) - Page 26 Phenomenon Compliance Electromagnetic environment RF emissions CISPR 11 Group 1, Class B Home healthcare environment Harmonic distortion IEC 61000-3-2 Class A Home healthcare environment Voltage fluctuations and flicker IEC 61000-3-3 Compliance Home healthcare environment Table 2: EMS Compliance Table — Enclosure Port Phenomenon Basic EMC standard Immunity test levels...
- Page 27 Frequencies Test Level [A/m] Modulation 13,56 MHz Pulse modulation 50 kHz Table 5: EMS Compliance Table — Input a.c. power Port Phenomenon Basic EMC standard Immunity test levels Home healthcare environment Electrical fast transients/burst IEC 61000-4-4 ±2 kV 100 kHz repetition frequency Surges Line-to-line IEC 61000-4-5 ±0.5 kV, ±1 kV...
-
Page 28: Appendix D Technical Specifications
IP Rating IP22 Power Supply 15VDC, 3A, 45 W or 20VDC, 3A, 60 W AC Adapter Power Adapter Item Specification Trademark Tobii Dynavox Manufacturer MEAN WELL Enterprise Co., Ltd Model Name NGE60-TD Rated Input 100-240Vac, 50/60Hz, 1.5-0.8A Rated Output 5V/9V/12V/15V/20Vdc, 3A, 60W max... - Page 29 Item Specification Remark Mini Midi/Maxi Cell 2xNCA653864SA 2xNCA596080SA Battery Pack Capacity 16.416 Wh 30.744 Wh Initial capacity, new battery pack Nominal Voltage 7,2 Vdc, 2280 mAh 7,2 Vdc, 4270 mAh Charge Time < 4 hours Charge from 10 to 90% Cycle Life 300 cycles Minimum 75% of initial...
-
Page 30: Appendix E Approved Accessories
TD Navio AC Adapter (Power Supply) Tobii Dynavox NGE60-TD 1000769 For information about the latest approved Accessories for the TD Navio, please visit www.TobiiDynavox.com or contact your local Tobii Dynavox reseller. Appendix E Approved Accessories TD Navio User's Manual v.1.0 - en-US... -
Page 31: Appendix F Local Certification Partners
Appendix F Local Certification Partners The listed companies are the partners for our local certifications in their countries. Contact Information: Link Assistive Pty Ltd 11B MAB Eastern Promenade Tonsley SA, 5042 Australia +61 8 7120 6002 Appendix F Local Certification Partners TD Navio User's Manual v.1.0 - en-US... - Page 32 Contact Your Solution Consultant or Reseller For questions or problems with your product, contact your Tobii Dynavox solution consultant or authorized reseller for assistance. They are most familiar with your personal setup and can best help you with tips and product training. For contact details, visit https://www.tobiidynavox.com/pages/contact-us.
