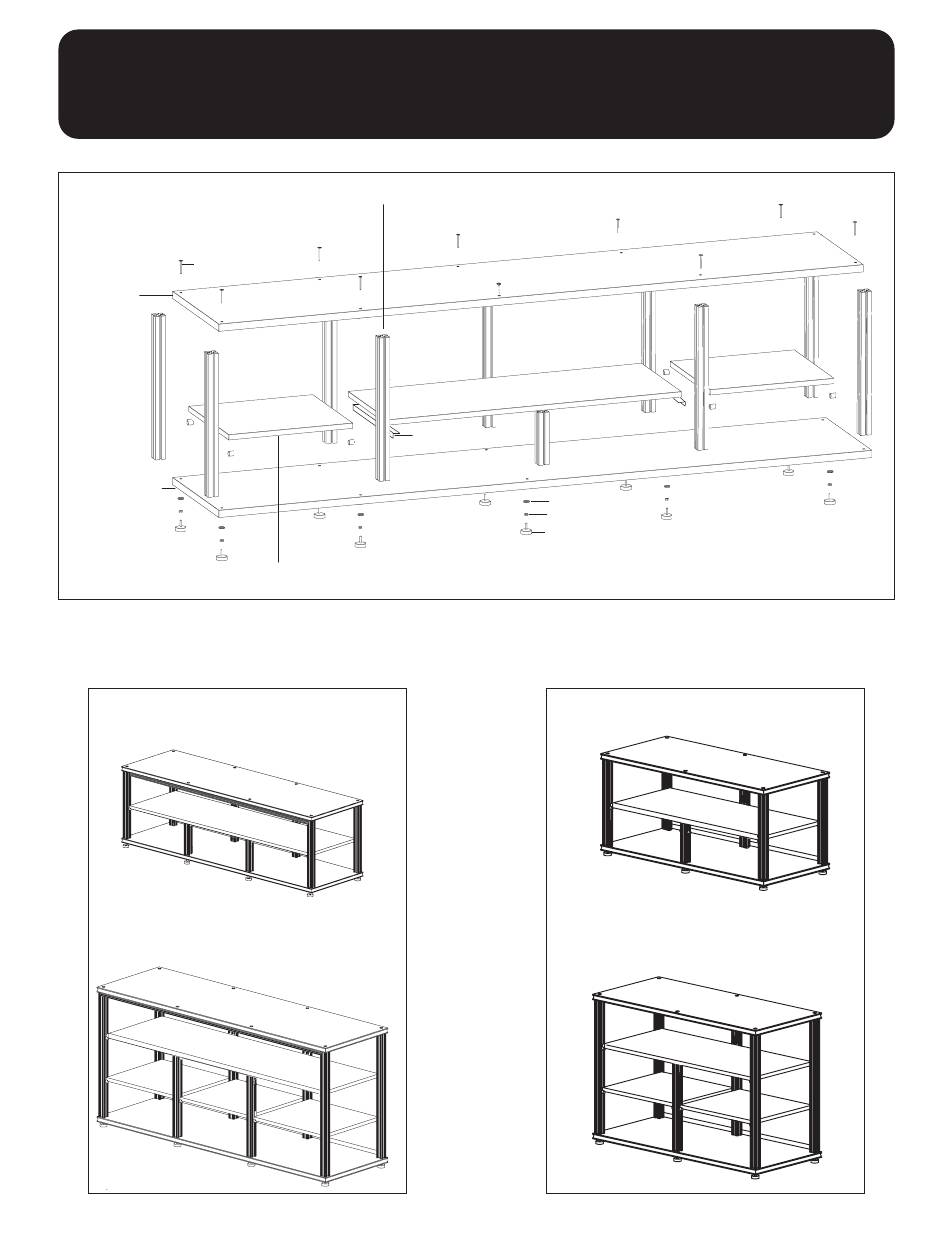

SYNERGY QUAD ASSEMBLY - SQC20 / SQC30
Note: If you are installing accessories such as doors or drawers to the base unit, read all
!
instructions for the accessory and install in conjunction with these instructions.
CONNECTOR BOLTS
TOP SHELF
BOTTOM SHELF
SYNERGY SYSTEM
ADJUSTABLE SHELVES
Model: SLC20
Model: SLC30
Synergy Core Module Triple
(SLC20/SLC30)
Limited Warranty
For five full years Salamander Designs Ltd will repair or replace, at our option, any product defective in materials or craftsmanship. Salamander Designs Ltd. will not be responsible for any damag
equipment consequential to our equipment failure. Defective product must be given Return Authorization and is to be returned to the factory prepaid, in the original carton and packing material.
SYNERGY
!
ALUMINUM POSTS
SHELF BRACKET
TM
Synergy Core Module Quad
(SQ20/SQC30)
WASHER
HEX NUT
LEVELER FOOT
BEFORE YOU BEGIN:
SYNERGY SYSTEM
• Unpack all parts and read instructions carefully before beginning.
• Shelf pegs and door hinges must slide into the channels of the post in the correct order.
They cannot be removed individually without disassembly.
* Diagram: Synergy 20 Quad Base Unit
1
Connect Posts to Bottom Shelf
Model: SNC20
A
.
Square Post
Square the post to the bottom shelf.
Model: SNC30
B
.
Connect Post
Screw foot with metal washer through bottom
shelf and into the end of each extruded post.
Hand tighten fully and use wrench to tighten nut
onto underside of shelf.
WARNING: Tighten by screwing the leveler foot NOT the post.
Synergy Core Module Twin
(SNC20/SNC30)
Limited Warranty
Limited Warranty
For five full years Salamander Designs Ltd will repair or replace, at our option, any prod
TM
Doc No. 500-942
QUAD - 1 of 4
1
Short Post
Leveler Foot
!
•
•
B
Sc
sh
H
n
W
Advertisement
Summary of Contents for SYNERGY SYSTEMS SLC20
- Page 1 (SQ20/SQC30) * Diagram: Synergy 20 Quad Base Unit Doc No. 500-942 QUAD - 1 of 4 Connect Posts to Bottom Shelf Model: SNC20 Model: SLC20 Square Post Short Post Square the post to the bottom shelf. Model: SLC30 Model: SNC30...
-
Page 2: Before You Begin
• Shelf pegs and door hinges must slide into the channels of the post in the correct order. They cannot be removed individually without disassembly. Connect Posts to Bottom Shelf Model: SLC20 Square Post Short Post Square the post to the bottom shelf. - Page 3 Add Shelf Pegs Attach Rear Panels Insert Hardware Pegs for Shelves Combine the 1” threaded studs with flat nuts. Insert one shelf peg down each post. Slide 2 sets of hardware down the two outside posts and 4 sets down the center post. Allow studs to remain loose at bottom of post.
- Page 4 Placing Shelves If assembling model SLC20, skip to step C. 8" 6" " 1/ 2 S30 / S40 REAR PANEL S20 / SVDO REAR PANEL EXTENDED REAR PANEL Fine Tuning Adjustable Shelves Bracket Triple-Width Shelf Place shelf on center posts and secure Place shelves from the bottom up.
-
Page 5: Top Assembly
Install Spanner Top Assembly Secure Top Disassemble cross dowel using the hex key as shown. Secure top with the 6 connector bolts to complete installation. Drive the first insert nut into the top of the open hole flush to the surface using the M6 hex key. Then drive the second insert nut into the other side of the hole flush to the bottom surface. - Page 6 Parts (400-060) - 3/16” Hex Key (300-470) 8 - Aluminum Posts 3 - Adjustable Shelf (SLC30 only) Washer 1 - Top Shelf 1 - Spacer Tool 1 - Bottom Shelf 2 - Heavy Duty Shelf Bracket (301-725) - Cross Dowel Assembly 3 - Rear Panels 1 - Triple Width Shelf 1 - Wrench...
- Page 7 SYNERGY QUAD ASSEMBLY - SQC20 / SQC30 Note: If you are installing accessories such as doors or drawers to the base unit, read all instructions for the accessory and install in conjunction with these instructions. ALUMINUM POSTS CONNECTOR BOLTS TOP SHELF SHELF BRACKET BOTTOM SHELF WASHER...
- Page 8 Parts 10 - Aluminum Posts Adjustable Shelf (SQC20 -2) • (SQC30 - 4) 1 - Top Shelf 1 - Spacer Tool (400-035) - Wrench (400-060) - 3/16” Hex Key 1 - Bottom Shelf 1 - Double Width Shelf 4 - Rear Panels 2 - Heavy Duty Shelf Bracket Double-Width Shelf Hardware - (PHK-510) (P-400-040) - Level...
- Page 9 Connect Posts to Bottom Shelf Insert shelf pegs down each post as shown. WARNING: Tighten by screwing the leveler foot NOT the post. Use the Spacer Tool to adjust spacing between shelves. Position Square Post Connect Post the peg through the Spacer and Square the post to the bottom shelf.
-
Page 10: Final Assembly
Attach Rear Panels Position & Secure Studs Align the Spacer Tool at the top of each post, then position top studs through the small “Rear Panel” hole. Repeat this step To ease installation of rear panels with the bottom studs aligning the Tool first remove any drawers and/or along the bottom of post to set spacing for doors and gently place the unit face... - Page 11 BEFORE YOU BEGIN: • Unpack all parts and read instructions carefully before beginning. SYNERGY SYSTEM • Shelf pegs and door hinges must slide into the channels of the post in the correct order. They cannot be removed individually without disassembling the whole unit. Connect Posts to Bottom Shelf Model: SNC20 Short Post...
- Page 12 Add Shelf Pegs Attach Rear Panels Insert Hardware Pegs for Shelves Combine the 1” threaded studs with flat nuts. Slide 2 sets of hardware down the two outside Insert one shelf peg down each post. posts and 4 sets down the center post. Allow studs to remain loose at bottom of post.
- Page 13 Secure Top Secure top with the 5 connector bolts to complete installation. Drive the first insert nut into the top of the open hole flush to the surface using the M6 hex key. Then drive the second insert nut into the other side of the hole flush to the bottom surface. Install the joint connector bolts into both inserts using the 5/32”...
- Page 14 Parts 6 - Aluminum Posts 2 - Adjustable Shelf (SNC30 only) (300-470) (400-035) - Wrench Washer 1 - Top Shelf 1 - Spacer Tool 1 - Bottom Shelf 2 - Rear Panel 1 - Double Width Shelf 2 - Heavy Duty Shelf Bracket (400-060) - 3/16”...
