P r o d u c t i n s t r u c t i o n m a n u a l

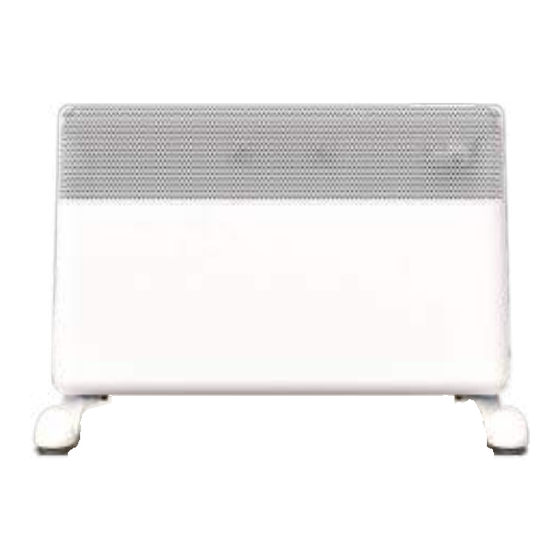

NCA1-4.3-WHITE
NCA1-4.3-BLACK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCA1-4.3-WHITE and is the answer not in the manual?

Questions and answers

Summary of Contents for Ballu NCA1-4.3-WHITE

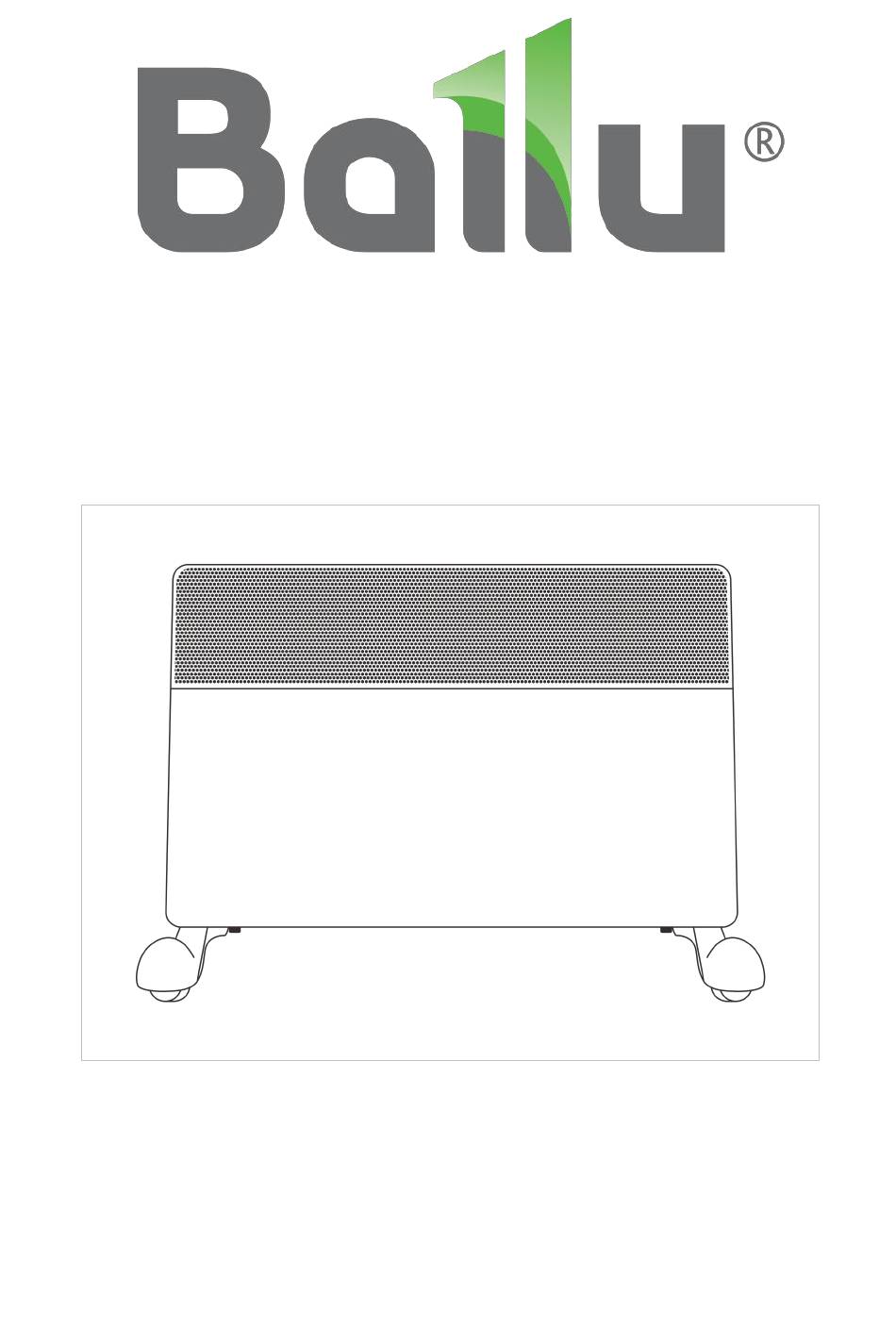

  • Page 1 P r o d u c t i n s t r u c t i o n m a n u a l NCA1-4.3-WHITE NCA1-4.3-BLACK...
  • Page 2 CONTENTS COMPONENTS INSTALLATION GUIDE SAFETY INSTRUCTIONS OPERATING YOUR HEATER APP FUNCTION TROUBLESHOOTING IMPORTANT SAFETY CARE AND CLEANING INSTRUCTIONS FCC REQUIREMENT...
  • Page 3: Product Components

    COMPONENTS Product Components Converter heater Heat outlet Feet Air intake Wall-mounted bracket Power cord---- handle Temperature sensor--- *The wall bracket is already installed. You can pull out and detach the bracket by pressing on the protruding part above the bracket Accessories ①...
  • Page 4 Installation Guide Before using this heater, it must either be wall mounted or have the feet fitted. Please check installation detail as below. 1. FOOT INSTRUCTIONS Take out 2 x legs and 2x ④ screws Take out 2 x legs and 2x ④ screws from foam from foam NOTE:...
  • Page 5 Installation Guide 6.0mm 6.0mm 250mm 190mm 6.0mm 6.0mm 300mm(12inch) 1. WALL MOUNTED HEATERS AREONLY TO BE MOUNTED ON HEATRESISTANT WALLS THAT COMPLYWITH CURRENT SPECIFICATIONS & BUILDING REGULATIONS 150mm 150mm (6inch) (6inch) 2. KEEP DISTANCE WITH ANY SURROUNDING PARTS 150mm(6inch)
  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS Do not place or cover Do not use in wet Do not use power strips items or clothing on environments, and not or extension cords to top of the product! touch the product case, avoid plug damage power cord, plug, etc. caused by excessive with wet hands! power.
  • Page 7: Operating Your Heater

    OPERATING YOUR HEATER Control Panel Temperature control ON/OFF Button Power indicator light Display screen Mode button Temperature control ON/OFF Button Light-off function Temperature control Comfort mode Boost mode Eco mode Temperature control Child-lock function Power level button Timer function Battery required screen indication Red indicator light –...
  • Page 8: Main Function

    OPERATING YOUR HEATER Main function Boost mode (86℉/30℃) • Fast heating with full power 1500W and disregard the temperature settings. • 3h later will switch to comfort mode automatically. • In this mode the operation of setting temperature, timer and power level will cancel Boost mode. Comfort mode (50-86℉/10-30℃) Mode button...
  • Page 9 OPERATING YOUR HEATER WIFI CONTROL Gentle reminder: Download the SMART LIFE app 1. Once connect successfully, the will be light up. 2. When you fail to connect, the will flashing or disappear . Please check your phone is that already connected to 2.4 GHz WiFi and Bluetooth.
  • Page 10 APP FUNCTION Current mode&Power level Setting Temperature Algorithm temperature - can be calibrated in “settings” by changing room size Adjust target temperature: Heating mode setting Power level setting Appointment shutdown setting Power on/off More setting (Please check below) Power on/off Heating mode setting Tap the on/off button to switch the heater on or off.
  • Page 11: Schedule Function

    APP FUNCTION Turn on/off the Child lock function Turn on/off the Light Current power level Adjusting your Room size Ours customer service mail address Contact us for the latest services Heating schedule Schedule function Please select your private working schedule base on your requiry, the setting options include working on/off in which hour in a...
  • Page 12: Troubleshooting

    Start at the highest In contrast, ballu convection electric heaters use setting for quick heating, then adjust to a lower special alloy to directly heat the air without an...
  • Page 13: Care And Cleaning

    CARE AND CLEANING Overheat safety reset button When the heater can not be turned on: 1. Unplug the cord and stay 15mins to cool down 2. Press this button 3. After that, retry to turn on the heater Tip-over protection When the heater is moved or knocked over, it will power off.
  • Page 14: Important Safety Instructions

    This heater is intended for general use ONLY. Do not use this appliance in the immediate surrounds of a bath, a shower or swimming pool or other liquids. If your appliance does not work, or is not working properly, contact the Ballu Customer Services Team.
  • Page 15: Fcc Requirement

    FCC REQUIREMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 Manufacturer: Guangdong BIG Climatic Manufacture Co., LTD...
