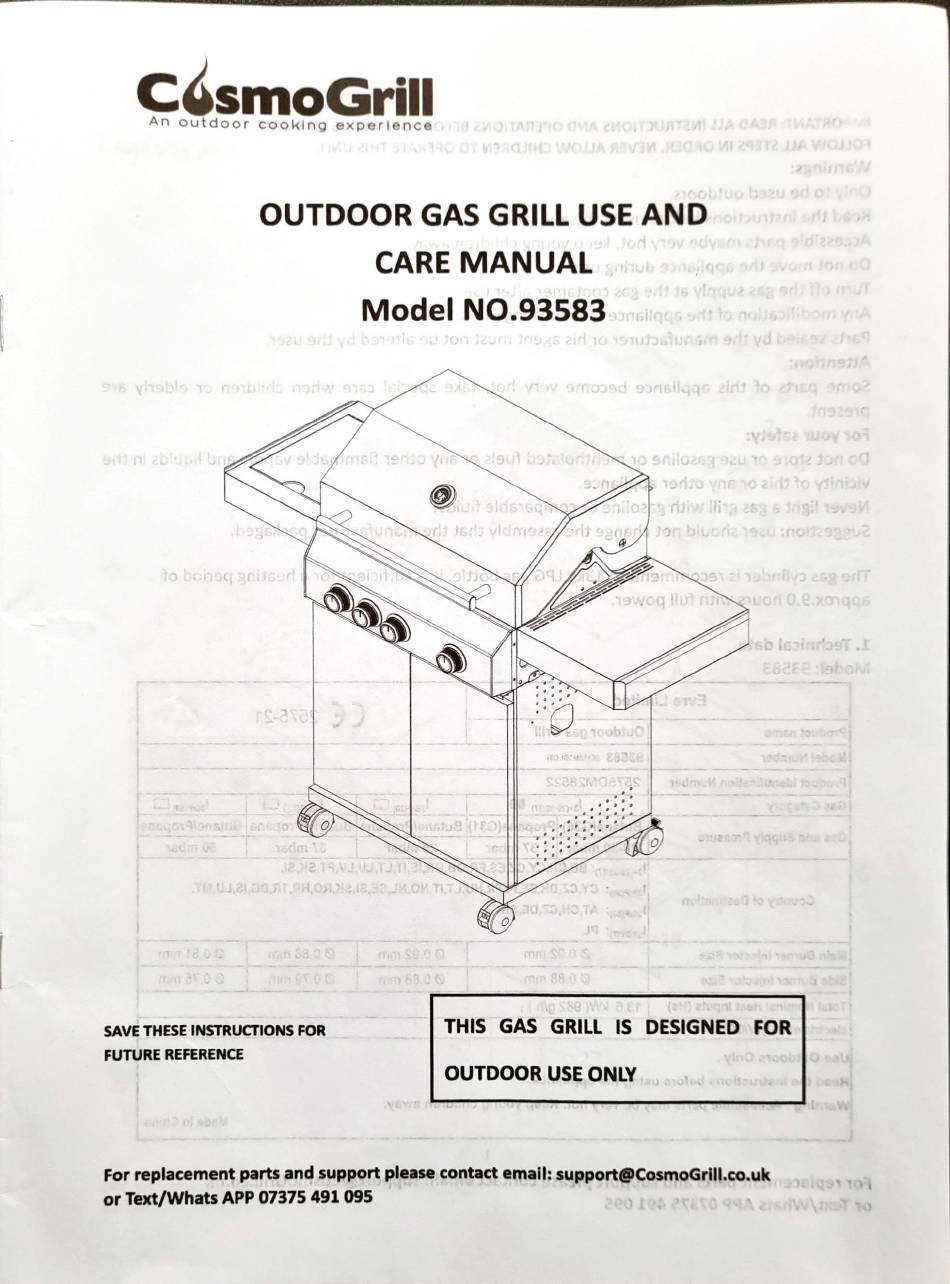

OUTDOOR GAS GRILL USE AND
CARE MANUAL
Model NO.93583
THIS GAS GRILL IS DESIGNED FOR
SAVE THESE INSTRUCTIONS
FOR
FUTURE REFERENCE
OUTDOOR USE ONLY
For replacement parts and support please contact email: support@CosmoGrill.co.uk
or Text/Whats APP 07375 491 095
Advertisement
Related Manuals for COSMOGRILL 93583
Summary of Contents for COSMOGRILL 93583
- Page 1 An outdoor cooking experience OUTDOOR GAS GRILL USE AND CARE MANUAL Model NO.93583 THIS GAS GRILL IS DESIGNED FOR SAVE THESE INSTRUCTIONS FUTURE REFERENCE OUTDOOR USE ONLY For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491 095...
- Page 2 Use Outdoors Only . Read the Instructions before using the appliance. arnlng : Accessible parts may be very hot. Keep young children away. Made In China For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
- Page 3 2. Exploded View For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
- Page 4 3. Single part list seq. appellation appellation seq. Fixed panel of cart Lid assembled Castors thermometer Gas cylinder wire rack anxis of lid Gas cylinder band Cushion of lid Gas cylinder rack Warm rack Cast iron grill-185 Door Side table Cast iron grill-240 Rack of grease collector Flame tamer...
- Page 5 4. Fixing elements 5/32-32 1/4-20 5. Mounting steps Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill. Caution: Although we take every effort to ensure that the assembly process is as easy as possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if improperly handled during assembly procedures.
- Page 6 STEP2 STEP3 For replacement parts and support please contact email: support@CosmoGriIl.co.uk or Text/Whats APP 07375 491095...
- Page 7 STEP4 STEP5 For replacement parts and support please contact email: support@CosmoGrilI.co.uk or Text/Whats APP 07375 491095...
- Page 8 STEP6 STEP7 For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
- Page 9 STEP8 coco o 000 0 STEP9 For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
- Page 10 STEPIO an n non naanaaaoooo STEPII For replacement parts and support please contact email: support@CosmoGriIl.co.uk or Text/Whats APP 07375 491095...
- Page 11 STEP12 u aauuunnnnaaaaooa STEP13 For replacement parts and support please contact email: support@CosmoGrlll.co.uk or Text/Whats APP 07375 491095...
- Page 12 STEP14 STEP15 For replacement parts and support please contact email: support@CosmoGriIl.co.uk or Text/Whats APP 07375 491 095...
- Page 13 STEP16 STEP17 nnnannnanaaaaoooo For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
- Page 14 STEP18 STEP19 ooø e For replacement parts and support please contact email: support@CosmoGriII.co.uk or Text/Whats APP 07375 491095...
- Page 15 STEP20 For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
-
Page 16: Installation
Check the hose before each use, searching for cracking, cuts or any abrasions. If the hose is found to be faulty in any way do not attempt to use your gas grill. For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095... - Page 17 When changing your gas bottle ensures that there are no sources of ignition close by i.e. fires, cigarettes, naked flames etc. Make sure that the appliance is switched off. Ensure that the hose is not subjected to twisting which will affect the gas flow when using your gas grill.
- Page 18 Do not attempt to disconnect any gas fitting part if your gas grill is being used, on the gas grill or the gas regulator / bottle. For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491 095...
- Page 19 Be prepared if an accident or fire should occur. Know where the first aid kit and fire extinguishers are and know how to use them. e) Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. For replacement parts and support please contact email: support@CosmoGrill.co.uk or Text/Whats APP 07375 491095...
- Page 20 Warning : If the burner still does not light tum the burner control knob to" OFF" and wait 5 minutes to let the gas clear before lighting again. contact email: support@CosmoGrill.co.uk For replacement parts and support please or Text/Whats APP 07375 491095...
- Page 21 e OFF LO MAIN When you are using your gas grill after a period of storage, please ensure to check for gas leaks and check for any obstructions in the burner etc. before using. Also follow the cleaning instructions to ensure gas grill is safe. If gas grill is stored outdoors ensure to check that all areas under the front panel are free from any obstructions (insects etc.) This area must be kept free as this may affect the flow of combustion or ventilation air.
- Page 22 Replace gas valve grill helpline. please call the Gas If your problem is not resolved from the information above, from your grill as will be burned off a) Turn the burner on for 15 to 20 minutes. Grease drippings continuing. well as your lava rock.
- Page 23 15.Change main burner 1.First ,find out which main burner has been broken, if it's not the far left one(if it's the far left one, just remove the broken one), remove from the far right burner, take out the circlip, take out the main burner, remove the transmission frame;...
