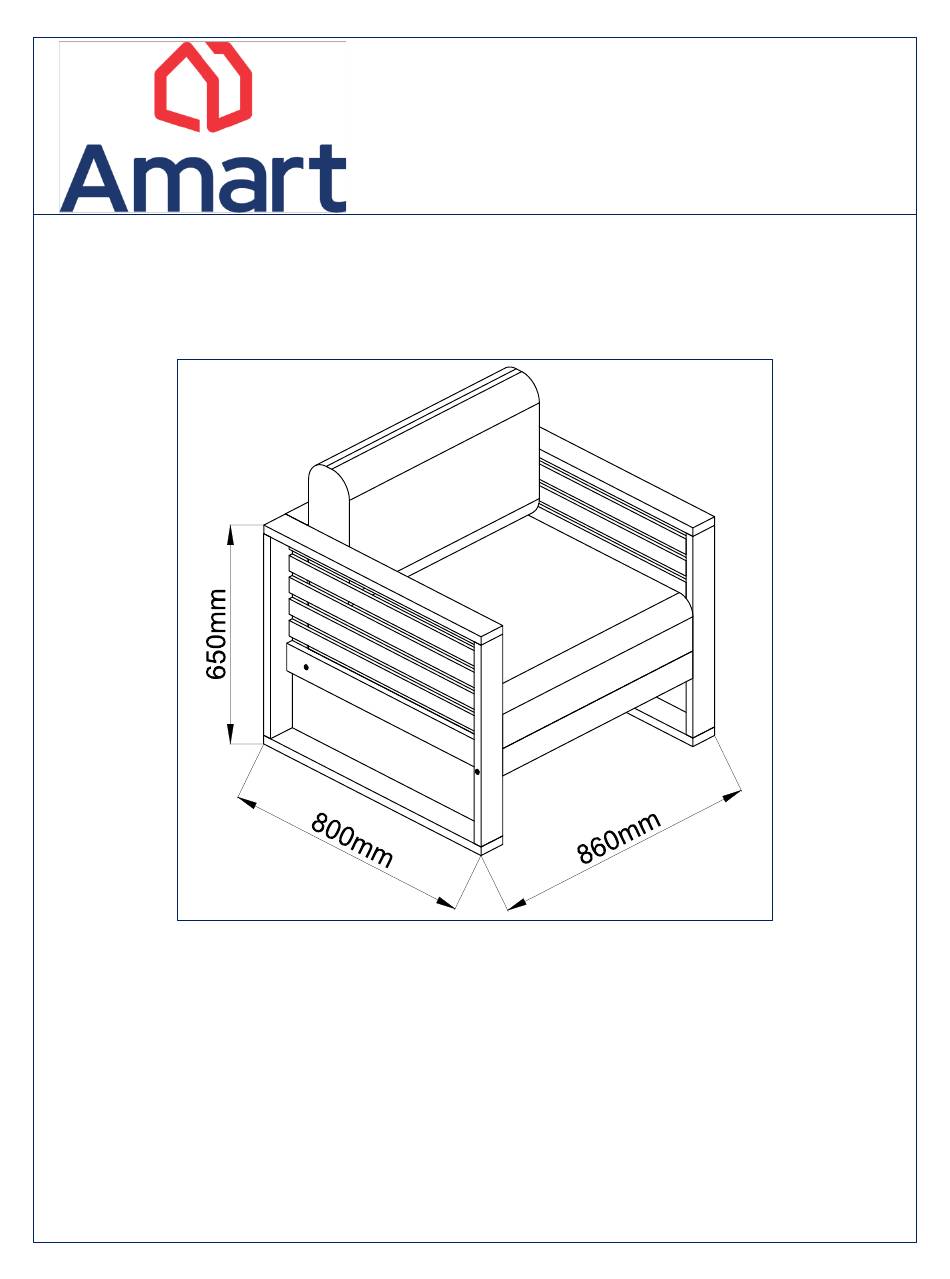

- Page 1 ASSEMBLY INSTRUCTION YARRA 4 PIECE OUTDOOR LOUNGE SETTING ITEM CODE 81542 Imported by Amart Furniture Pty Ltd, Brisbane QLD Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 81542...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST BOLT M6 x 40mm BOLT M6 x 60mm BOLT M6 x 120mm NUT M6 ALLEN KEY M4 LEFT LEG 1 pc RIGHT LEG 1 pc SEAT 1 pc BACK 2 pcs BACK CUSHION 1 pc SEAT CUSHION 1 pc 81542... -
Page 4: Exploded View
EXPLODED VIEW 81542... - Page 5 STEP 1: Insert bolt M6x120mm (I) & bolt M6x60mm (H) from left into seat (C). And use allen key (K) to secure. STEP 2: Insert bolt M6x120mm (I) & bolt M6x60mm (H) from right into seat (C). And use allen key (K) to secure. 81542...
- Page 6 STEP 3: Insert back of sofa (D) into the step 2. And tighten them by use bolt M6x40mm (G) with Allen key M4 (K). STEP 4: Insert back cushion (E) and seat cushion (F) into sofa chair. And rotate the leveler feet to adjust the height of chair. 81542...
- Page 7 ASSEMBLY IS COMPLETE 81542...
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE BENCHES, DO NOT: • Use this product as a step stool or ladder • Failure to follow this warning could result in injury TIMBERS: • Prolonged exposure of timber items to the elements may cause premature deterioration •...
