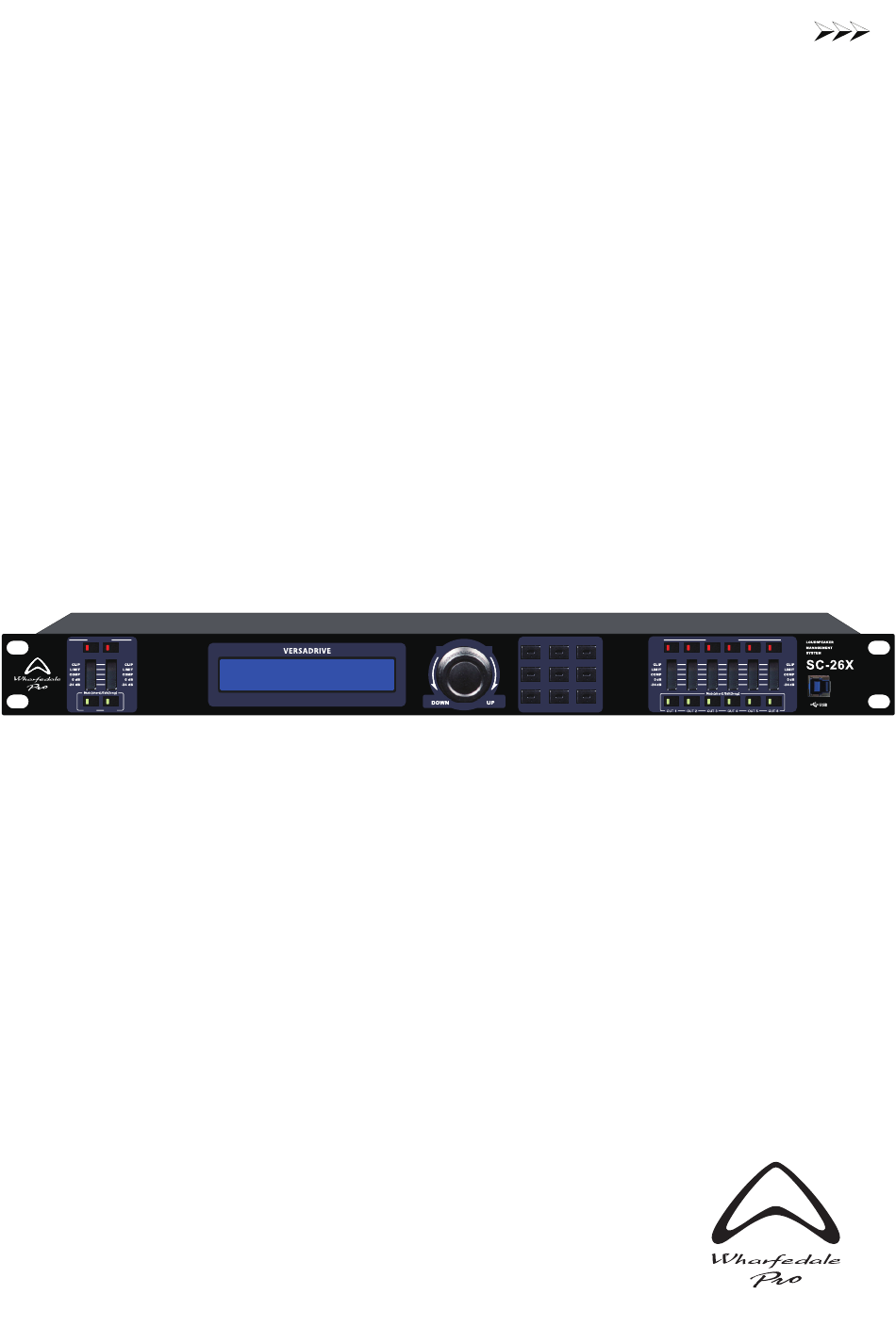

Wharfedale Pro SC-26X User Manual SC-26X Loudspeaker Management System INPUTS FUNCTIONS OUTPUTS X-OVER LIMITER DELAY GAIN Ø / GATE EXIT SYSTEM PRESET IN A IN B www.wharfedalepro.com...
Front Panel Controls And Features INPUTS FUNCTIONS OUTPUTS X-OVER LIMITER DELAY GAIN Ø / GATE EXIT SYSTEM PRESET IN A IN B 1. LCD Display: Displays menu and settings information 2. Rotary Control encoder: Adjusts parameters and browses menu Turn clockwise/anti-clockwise to browse menu or change parameters ii.
Page 4
Front Panel Parameter Editing To edit settings, press the EDIT button on the channel of your choice. Pressing the function buttons (i.e. EQ) will bring up the relevant settings for that channel. On function menus i. to vi. click encoder to change between parameters (i.e. EQ1, EQ2, etc) Parameter selection is indicated by flashing cursor On function menus viii.
Page 5
Parameter Functional Ranges and Operation Parameters are listed in order shown on LCD display, first then second line, left to right Steps Feature Access Range / Parameters 1 dBu Input Noise Gate EDIT + Ø / GATE -120 dBu to 0 dBu Threshold 0.1 dBu Input / Output Gain EDIT + GAIN -80 dBu to +12 dBu Gain...
LINK ALL LOCK ALL LOCK ALL LOCK WARNING: Please be sure to remember password, contact Wharfedale Pro support in case of lost password 3. Power On Setup Set additional action after power on 4. Backlight setup LCD Backlight options. OPEN: always on. 10s: Turn off after 10 seconds.
Channel Label Channel labelling must be done via the PC software, the chosen label can be viewed on the relevant channel EQ page, shows after the channel number Example: Output Channel 1, labelled as “LOW” Software Connection Methods Single Device via USB Use the included USB cable to connect the PC USB port to the device.
CAT5 Cable PC Network TCP/IPv4 settings must be configured with static IP in the same subnet (NOTE: Computer and SC-26X must be on the same Gateway with all other networks disabled) Example with default SC-26X network settings: SC-26X IP Address –...
Page 9
RS485 Connection Many devices can be connected via parallel RS485 connection on the rear of the unit RS485 USB interface RS485 Pin connection is as follows: 485A - Positive (+) 485B - Negative (-) - Ground When connecting via RS485, each individual unit must be assigned a unique device ID, this can be done using the front panel system menu In the software, select the RS485 USB interface COM port,...
An additional RS-485 connection allows long-distance network use allowing multiple units to be used at once. When using multiple Versadrive SC-26X units, click the DEVICE button on the top of the window to select a different unit device number.
System: Backlight, Central control code, device update and device startup and naming settings Lock: Input, Output and System lock options Report: View parameter data settings table for the whole device Specifications Model Name Versadrive SC-26X Inputs 2 x XLR socket Outputs 6 x XLR pin Input Impedance Balanced : 20 KΩ...
Page 13
RS485 Control Protocol Central control code (for RS485 port) (NOTE: 485 baud rate 9600, data bit 8, stop bit 1, check bit none) Applicable version: Z-DV1.00 or the latest version. One frame data form: frame head(2)+device ID(1)+frame type(1)+function type(1)+channel No.(2)+parameter value(1)+frame end(1) Description: 9 bytes data pack, bytes volume is fixed.
