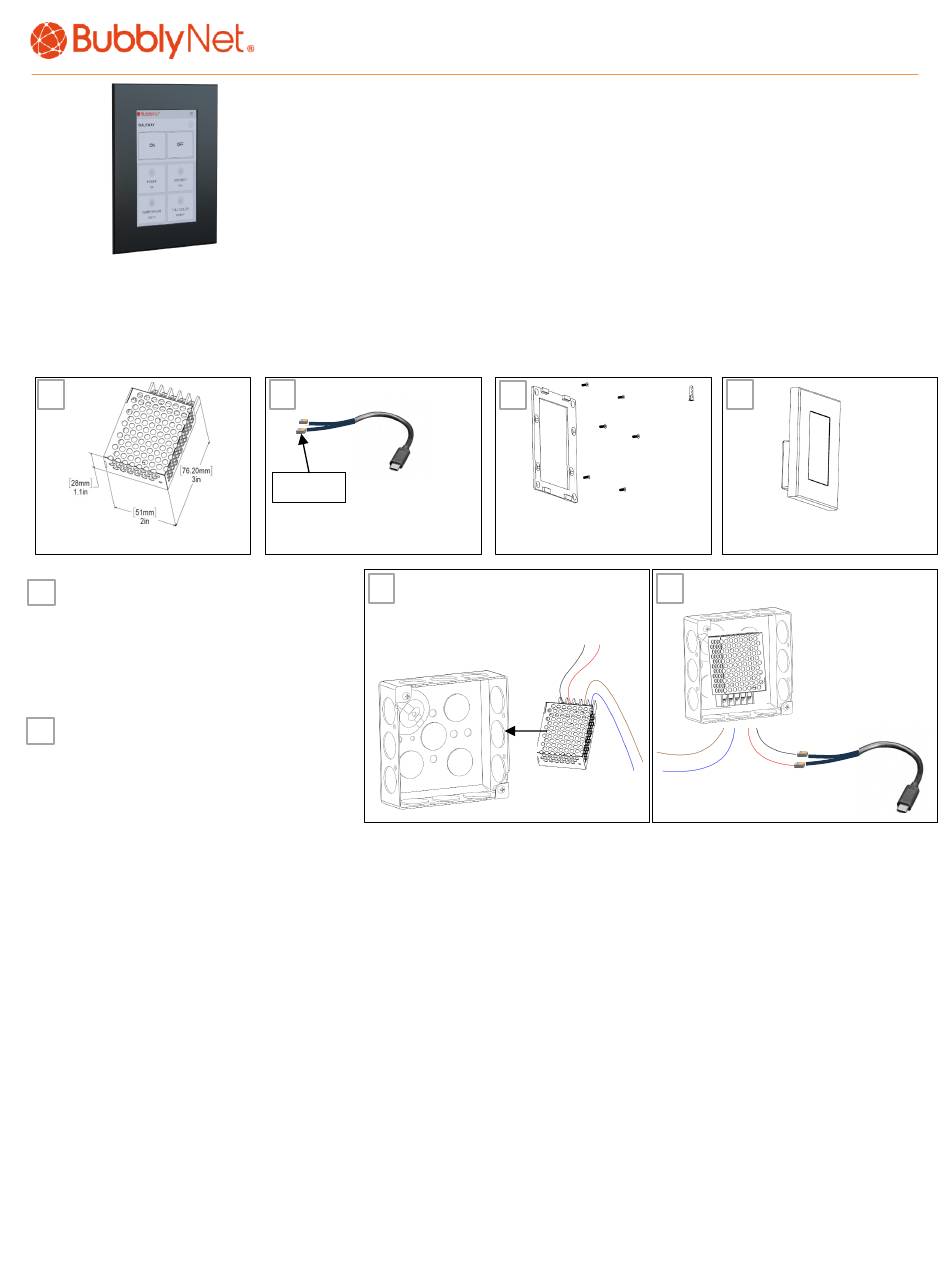

BubblyNet T4J Installation Instructions

PARTS INCLUDED:
i. 15W, 5V, 3A TRANSFORMER
ii. USB TYPE C WITH WAGO CONNECTORS
iii. PANEL WALL PLATE + PANEL WALL ANCHORS & SCREWS
iv. TOUCHSCREEN
i.
TRANSFORMER
1. CONNECT THE TRANSFORMER TO THE
LINE VOLTAGE AND ROUTE THE LOW
VOLTAGE CABLE (NOT PROVIDED BY
BUBBLYNET) TO THE TOUCHSCREEN
LOCATION. INSTALL THE
TRANSFORMER IN A REMOTE
ELECTRICAL BOX.
2. CONNECT THE LOW VOLTAGE LINES
FROM THE TRANSFORMER TO THE
PROVIDED USB TYPE C CABLE USING
WAGO.
FOLLOW NEXT PAGE FOR INSTALLING
PANEL WALL PLATE AND TOUCH SCREEN
PAGE 2: 4IN J-BOX MOUNT
PAGE 3: SINGLE GANG J-BOX MOUNT
BubblyNet, 615 Drew St. Clearwater, FL 33755.
The manufacturer reserves the right to change or modify the design, dimensions and specifications at any time without notice. The manufacturer accepts no liability for
READ ALL THESE INSTRUCTION BEFORE INSTALLING
WARNING - RISK OF FIRE AND ELECTRICAL SHOCK. ALL ELECTRICAL DEVICES MUST
BE INSTALLED BY A QUALIFIED ELECTRICIAN ONLY. INSTALLATION MUST COMPLY
WITH THE NATIONAL ELECTRICAL CODE, AS WELL AS LOCAL AND FEDERAL
REGULATIONS. ALWAYS DISCONNECT POWER AT THE ELECTRICAL PANEL BEFORE
SERVICING. IMPROPER CONNECTION OR USE OF DEVICES CAN RESULT IN
PERMANENT DAMAGE AND WILL VOID THE PRODUCT WARRANTY.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ii.
WAGO
USB TYPE C
1.
ELECTRICAL BOX
FOR
REFERENCE
•
Ph 727.316.5319
consequential damage which is occasioned to the user based on the data provided.
4" TOUCHSCREEN INSTALLATION INSTRUCTION
4X
iii.
PANEL WALL PLATE,
PANEL WALL ANCHORS &
SCREWS
2.
• Fx 727.683.9720 •
www.bubblynet.com
J-BOX MOUNT
iv.
TOUCH SCREEN
ELECTRICAL BOX
FOR
REFERENCE
REV 240806
PAGE 1
