KSIX CORE 2 User Manual

ENGLISH – USER MANUAL

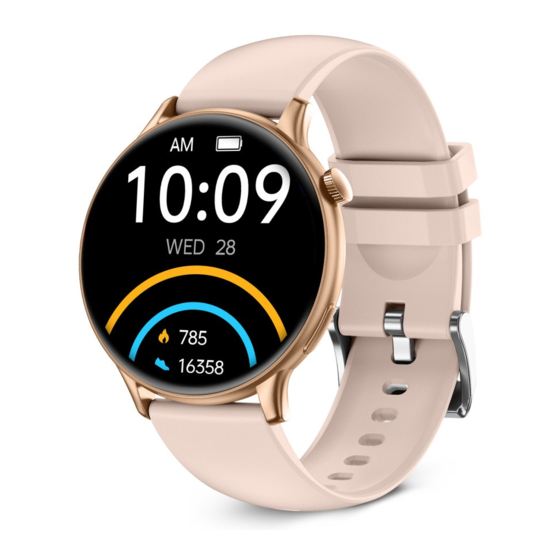

CORE 2 SMARTWATCH – BXSW24X
1. Characteristics
1.1 Technical specifications
Display: 1.43" AMOLED multi-touch 466 x 466
Battery: 300 mAh
Voltage frequency: 5V /50-60 Hz
Frequency range: 2402-2480 GHz
Maximum transmitted power in frequency ranges: 2 dBm
Compatibility: Android 6.0 / iOS 9.0 and later versions
App: Da Fit
Housing material: Zinc alloy
Display material: Tempered glass
Strap material: Silicone and metal buckle
Protection rating: IP67
Watch dimensions: Ø46.8 x 10.4 mm
Strap width: 22 mm
Wrist closure diameter: 14.5 to 19 cm
Weight: 52.7 g
Autonomy: Up to 5 days in normal use, Up to 3 days in
intensive use
Charging time: 2 hours
Languages: English, Spanish, French, German, Italian,
Portuguese, Dutch, Polish, Hungarian, Greek, Czech, Slovak,
Danish, Norwegian, Swedish, Finnish, Turkish, Japanese,
Chinese, Serbian, Hindi, Vietnamese, Arabic, Indonesian,
Romanian, Bulgarian, etc.
1.2 In the box
1 x Smartwatch
1 x USB-A magnetic wire cable (60 cm)
1 x User manual
1.3 Diagram
1. Dial button
2. Screen
3. Bottom button
1.4 How to attach and remove the straps
The straps of the Core 2 are interchangeable. The shorter
strap must be placed in the display's top slot, while the
longer strap must be placed in the display's bottom slot.
Otherwise, the insertion system may be irreparably
damaged.
1. To remove a strap: Hold the strap, slide the small metal
piece and carefully pull out the strap.
2. To attach a strap: Hold the strap and insert the metal piece
on one end. Then, slide the metal piece on the other end and
4. Strap button
5. Sensor
6. Magnetic charging
port
