Summary of Contents for SImx HeatTrans

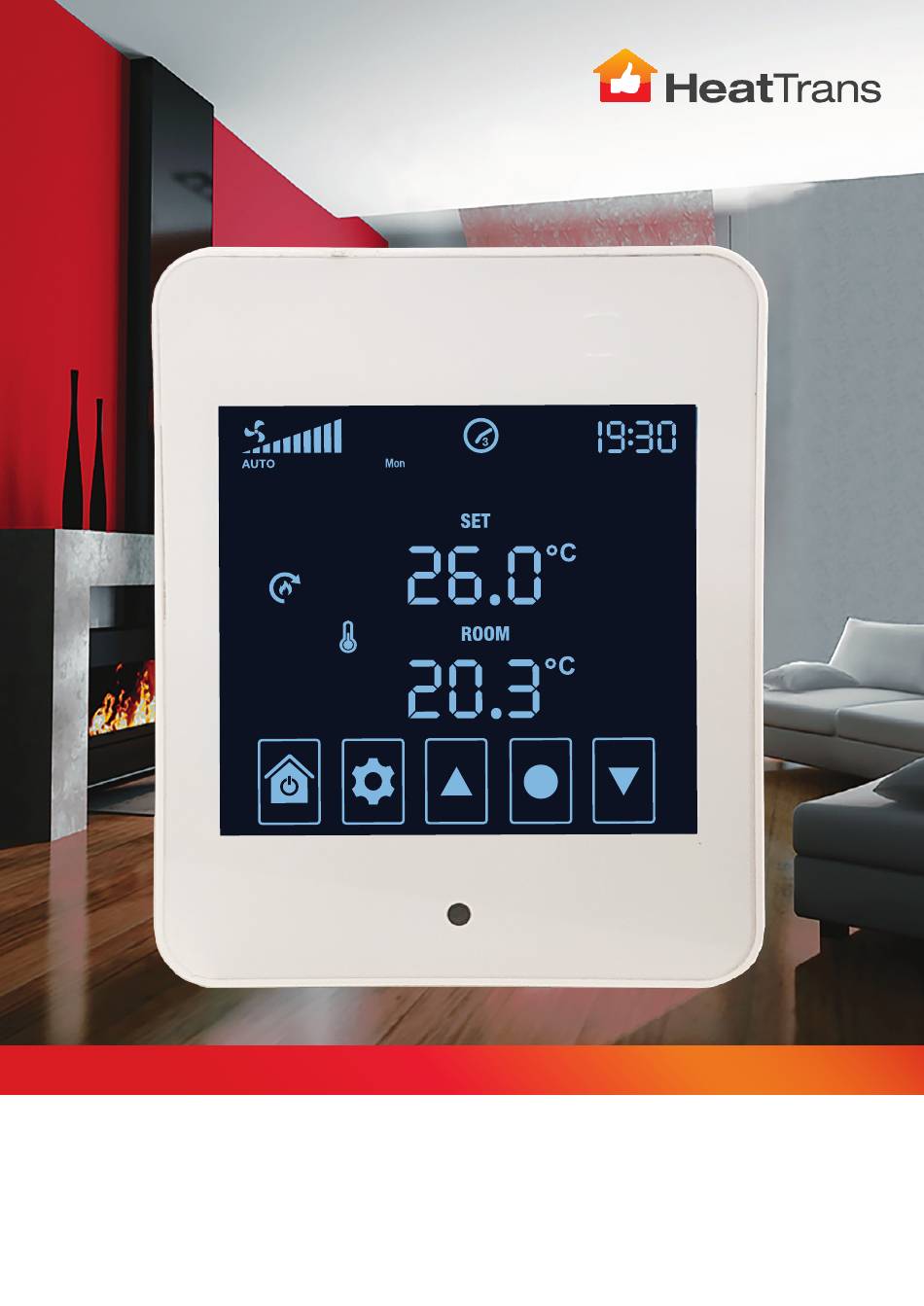

- Page 1 User Manual Firmware Version 3.4...
- Page 2 Warning - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance.
-
Page 3: Table Of Contents
HeatTrans Firmware Version 3.4 Contents Heat Transfer Systems ......................... 4 Summer Vent Kit ......................... 4 Home Screen Icons ........................5 Button Functions ......................... 5 Screen Highlights ........................5 Setting Guide Auto Operation and Temperature Setting ................. 6 Manual Operation and System Fan Speed Setting ..............6 Fan OFF Setting ........................ -
Page 4: Heat Transfer Systems
Summer Vent Kit With the addition of a Summer Vent kit the HeatTrans system transforms into a combination internal heat transfer and external venting system for year round use. With a few simple additions to your existing system, you can introduce fresh air in the warmer spring and summer months by bringing in filtered outside air and transfer excess hot air around your home in winter months. -
Page 5: Home Screen Icons
Home Screen Icons System Fan Speed Heat Transfer Mode Summer Vent ON Heat Transfer ON Recycle ON Temperature Sensing ON Home and Power Settings Select Down Set Temperature Current Room Temperature Key Lock ON Heat Transfer mode selections are AUTO or MAN (manual) Alert 2) When an electronic fault in the system occurs, the alert icon will appear Time... -
Page 6: Setting Guide
Settings Guide Auto Operation and Temperature (TEMP) Setting - On the Home Screen, press SETTINGS and then UP , or DOWN , to toggle to ON - Press SELECT to enter HEAT TRANSFER mode - Press UP , or DOWN , to toggle to AUTO operation and follow the guide below to adjust the temperature setting. -
Page 7: System Time-Date Settings
System Time-Date Settings ystem Time-Date Settings must be entered before Scheduler start times for HEAT TRANSFER can be set. - On the Home Screen, press SETTINGS for 3 seconds to enter Time-Date Settings and follow the guide below to complete NOTE: Settings shown are examples only - Press HOME at any stage to exit and enter Scheduler Settings... -
Page 8: System Operating Settings
System Operating Settings Scheduler Settings Setting the Scheduler is only necessary if you want HEAT TRANSFER to operate for predetermined times during each of the four periods available every 24 hours. Each period of time starts with the scheduled start time for that period and ends at the start time for the next scheduled period. -
Page 9: Period Off/On Settings
System Operating Settings Period OFF/ON Schedule Set HEAT TRANSFER mode to AUTO operation (see page 6). Fan speed will adjust automatically based on the indoor air temperature. - On the Home Screen, press SETTINGS to enter Period OFF/ON Schedule and follow the guide below to complete the fan OFF/ON settings for each of the four periods available in a 24 hour period. -
Page 10: Period Schedule Log
System Operating Settings Period Schedule Log Record your scheduled start times and OFF/ON status in the Period Schedule Log below. Period 1 Period 2 Period 3 Period 4 Start OFF ON Start OFF ON Start OFF ON Start OFF ON Date Modes Boost... -
Page 11: Advanced Settings Advanced Setting Selection
Advanced Settings Advanced Setting Selection All HeatTrans system settings can be changed at any time using the guide below. Save ADVANCED SETTINGS Enter ADVANCED SETTINGS Turn Select Turn Exit Setting System System Menu VALUE Press for 3 seconds Confirm Go to... -
Page 12: Advanced Settings Menu
All relevant AS/NZS standards EMC Approval All relevant AS/NZS standards Specifications are subject to change without notice Distributed by Simx Limited PO Box 14347, Panmure, Auckland, New Zealand. Technical Support (09) 259 1662 | e: sales@simx.co.nz | w: www.simx.co.nz PUB1656 2409...
