IWCS iriSelect User Manual

Waterproof communication systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
iriSelect
MODE
1
2
3
4
iriSelect
V. 03/24FA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iriSelect and is the answer not in the manual?

Questions and answers

Summary of Contents for IWCS iriSelect

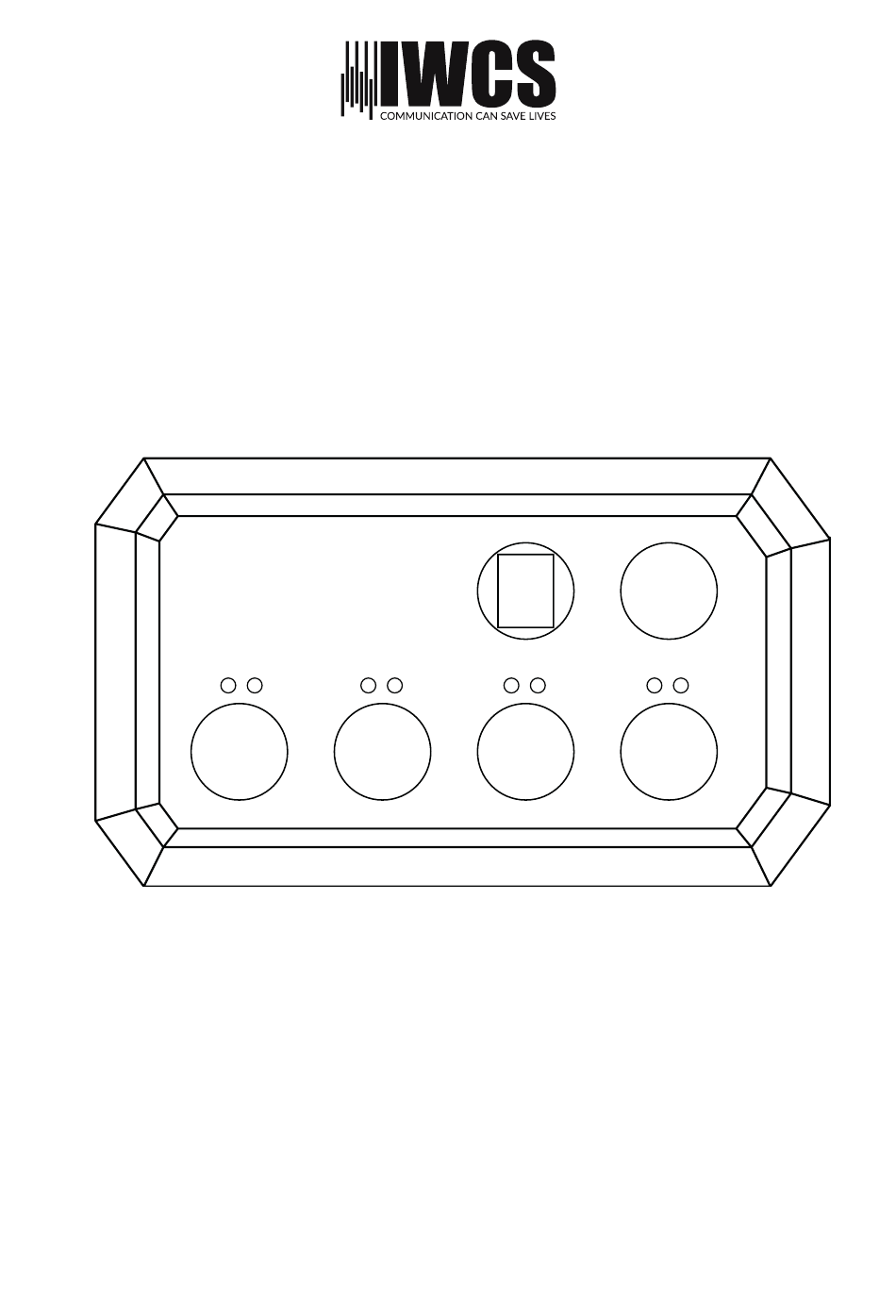

  • Page 1 User manual iriSelect MODE iriSelect V. 03/24FA...
  • Page 2 IWCS HOPE YOU WILL ENJOY THE BENEFITS OF TROUBLE FREE HIGH QUALITY INTERCOM. PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE FIRST USE. IF INSTALLED, OPERATED AND MAINTAINED ACCORDING TO THIS MANUAL THE iriSelect WILL BE A RELIABLE PARTNER FOR MANY YEARS TO COME. THOMAS B SVENNINGSEN CO-FOUNDER OF IWCS...

  • Page 3: Table Of Contents

    3.1 Drill Template 1:1 Page: 3.2 Tools Page: 3.3 Screws and screwholes Page: 3.4 Clear space Page: 3.5 Installing the bracket Page: 3.6 Installing the iriSelect Page: 4. Operation 4.1 Main describtion Page: 4.2 Panel overview Page: 4.3 Dimmer Page: 4.4 Radio PTT Page: 4.5 Mode selector...

  • Page 4: Introduction

    Anyone relying on this information should acquire the most current version e.g. upon request at info@iwcs.eu IWCS is not responsible for the content or accuracy of any translations or reproductions, in the whole or in part, of this manual from any other source.

  • Page 5: Safety Warning Page

    Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment. IWCS assumes no liability for the customer’s failure to comply with these requirements.

  • Page 6: Unboxing

    Unboxing 2.1 In The Box 1 x iriSelect 1 x Mounting Bracket iriSelect 1 x User Manual Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 03/24FA...

  • Page 7: Installation

    Installation 3.1 Drill Template 1:1 Scale 1:1. use for exact hole placement Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 03/24FA...
  • Page 8 Backside of drill template Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 03/24FA...

  • Page 9: Tools Page

    Screw heads may not exceed 7 mm 4 mm 3.3 Screws and screwholes When mounting the IriSelect, it is essential to consider the material and the appropriate drill bit size. Please note the following guidelines: If you are using wood screws you will need: •...

  • Page 10: Clear Space Page

    3.4 Clear space When installing the iriSelect, it’s essential to take into account the space behind the mounting surfa- ce. IWCS recommends a minimum of 100 mm of clear space to avoid stressing the cables. Mounting surface Clear space iriSelect min.

  • Page 11: Installing The Bracket Page

    Screws and holes After determining the desired location for the iriSelect, select screws that are appropriate for the surface you will be mounting it on to. Depending on the material, you may need to drill holes prior to securing the bracket.

  • Page 12: Installing The Iriselect Page

    3.6 Installing the iriSelect Once the bracket is securely in place, you can proceed to insert the iriSelect into the designated slot. You might need to wiggle the iriSelect slightly to make it fit between the bracket arms. Securely in place...

  • Page 13: Operation

    Operation 4.1 Main Desciption iriSelect provides a MULTI-control and status interface for the iriSound Intelligent Intercom System. iriSelect has 5 main function: • Automatic Brightness Control • External Radio PPT with RX/TX indication • Mode selector for customer defined grids •...

  • Page 14: Panel Overview Page

    4.2 Panel overview When the bracket is fastened, an IWCS Data Bus cable is pulled from the inside, through the 22,0 mm center hole. MODE switch Display Error indicator Light sensor RX indicator External Radio PTT TX indicator Hejrevang 13 +45 43 43 26 26 3450 Allerød...

  • Page 15: Dimmer Page

    LED light to a comfortable level. The light will be adjusted at iriSelect, headset interface and radio interfaces. DO NOT COVER THE SENSOR 3.4 Radio PTT iriSelect has 4 radio PTTs, each with both RX and TX indication.

  • Page 16: Mode Selector Page

    4.5 Mode Selector iriSelect can handle up to 10 (0-9) different user grids. “0” is preset and “1-9” are user defined. iriSelect (IR-20-1040-XX-01) is delivered with standard grid “0” unless additional grids (IR-1X-0010-01) are ordered. The individual audio modes are pre-loaded into iriSelect at the factory based on definitions received from the customer.

  • Page 17: Understand User Defined Grids Page

    User 4 listen to Ch1, Ch2, Ch3, Ch5, Ch6 Radio 1 can be heard by Ch1, Ch2, Ch3, Ch4, Ch6 Radio 2 can be heard by Ch1, Ch2, Ch3, Ch4, Ch5 iriStore/iriBoost. All users can talk to iriSelect - No audio User defined 1-9 (example) Incoming Outgoing...

  • Page 18: Avad 30

    AVAD is a very complex and intelligent squelch circuit. AVAD is adapting and will adjust itself according to surrounding noise. AVAD is a default iriSound Integrated software, and works without using the iriSelect interface. AVAD Monitor the microphone 6000 times each second to maintain relevant information about the en-vironmental noise as well as the speech level.
  • Page 19 AVAD detect peaks and opens the squelch. As it is peaks, the average baseline are still low and the squelch stays open. New low noise level Speaking - AVAD Opens Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 03/24FA...

  • Page 20: Error Messages Page

    4.8 Error Messages iriSelect detect and inform Constantly all used channels are monitored by iriSound, and iriSound detect any disconnection, whether it is a wired fault or a disconnection on the wireless connections. When iriSound is powered ON, iriSound runs a start-up check to verify the connectivity of each channel.

  • Page 21: Service And Maintenance

    5.3 Warranty iriSelect is covered by a two (2) year warranty. 5.4 Service / Upgrades Any Service or additional Upgrades must be handled by IWCS. Do not try to open or modify the IWCS product. 5.5 Maintenance If your IWCS IriSelect has been exposed to saltwater, chemicals or any other solvents/liquids, immediately rinse with freshwater and wipe with a dry cloth.
  • Page 22 Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 03/24FA...
  • Page 23 Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 03/24FA...
  • Page 24 IWCS Aps Hejrevang 13 3450 Allerød Denmark +45 4343 2626 info@iwcs.eu www.iwcs.eu...
