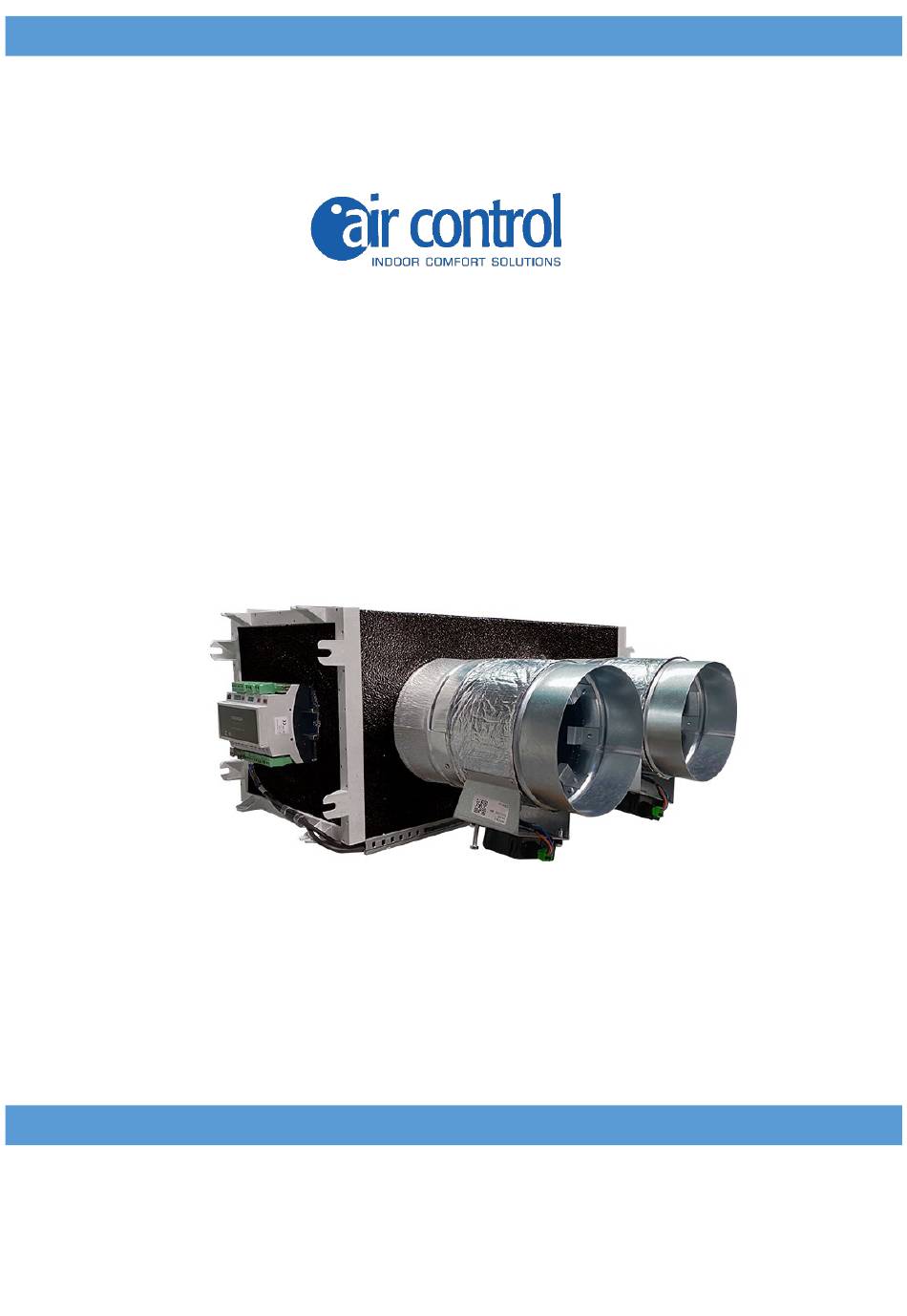

- Page 1 INSTALLATION, USE AND PROGRAMMING MANUAL MOTORIZED PLENUM Page1...
-
Page 2: Table Of Contents
SUMMARY GENERAL INFORMATION ........................................... 3 2.1.1 INTRODUCTION ........................................3 2.1.2 FUNDAMENTAL SAFETY RULES .................................... 3 2.1.3 SYMBOLS ............................................ 4 2.1.4 WARNINGS ..........................................4 2.1.5 COMPLIANCE ..........................................5 2.1.6 RANGE ............................................5 2.1.7 IDENTIFICATION ........................................5 2.1.8 CONSTRUCTION FEATURES ....................................6 2.1.9 OPERATION DESCRIPTION ..................................... -
Page 3: General Information
• It is forbidden to modify, to your liking, the type of wiring and position of the components, foreseen and indicated by Air Control. Tampering will immediately void the warranty... -
Page 4: Symbols
SYMBOLOGY 2.1.3 The symbols shown in the following booklet allow you to quickly provide information necessary for the correct installation, programming and use of the MOTORIZED PLENUM Safety related symbols ATTENTION It warns that the indicated operations are important for safe operation. Only authorized personnel DANGER It warns that failure to comply with the instructions poses a risk of electric shock. -
Page 5: Compliance
2011/65/EU WEEE 20 12/19/EU • 2.1.6 RANGE 3PCAB-CDZ-200-CFI 3PCAB CDZ 1) Defines the number of outlets and 2) Defines the type of ducted unit for 3) Defines the type of size of the whether wired by the manufacturer the creation of the motorized plenum... -
Page 6: Construction Features
2.1.8 CONSTRUCTION FEATURES PLENUM: PLM-CDZ CONTROL UNIT : KN-UNI-WIFI COMMUNICATION INTERFACE: Option: NH-CFI-CDZ / Option: NH-CIR-INVERTER / Option: NH-GTP-UNI MOTORIZED DAMPERS: NH-CO-UNI-DIM ELECTRICAL COMPONENTS: CABLES 0.5 MMQ (for BUS/A+B-/MOTOR connection) Page... -
Page 7: Description Of Operation
2.1.9 DESCRIPTION OF OPERATION The MOTORIZED PLENUM is a device with the following characteristics and peculiarities: • It allows timely control of the summer and winter air conditioning of the areas present, in residential and commercial interventions; • It allows significant energy savings for heating and cooling, thanks to full control of the CDZ unit both in terms of speed modulation and control of the compressor inverter function;... - Page 8 • Safety shoes: To protect your feet from falling heavy objects. • Seat belt and harness: For work at heights or in unstable conditions. Operators must be trained on the correct use of PPE and must scrupulously follow the current safety regulations. It is essential that all PPE complies with local and international provisions on workplace safety.
-
Page 9: Fixing The Plenum To The Cdz Unit And Electrical Connections
FIXING THE WIRED PLENUM TO THE CDZ UNIT AND ELECTRICAL CONNECTIONS 3.1.1 GENERALITY' -Before starting any operation to carry out the installation and electrical connection, make sure that the MOTORIZED PLENUM is not electrically powered. -Carry out the necessary electrical connections of the NH-CFI-CDZ and NH-GTP-UNI communication interfaces to the CDZ unit, as indicated in the dedicated manual present in the packaging of the aforementioned -For the correct positioning of the NH-CIR-INVERTER interface, in order to guarantee perfect communication with the receiver of the CDZ unit, check what is indicated in the dedicated manual present in the packaging of the aforementioned... -
Page 10: Electrical Connection Information Motorized Plenum (Xpcab-Cdz-Dn-Cfi)
CONNECTIONS WITH CABLE INTERFACE PLENUM (XPCAB-CDZ-DN-CFI) 3.1.3 CONNECTIONS BY THE INSTALLER PHASE AND NEUTRAL POWER SUPPLY (220V) From QE to KN-UNI-WIFI CONNECTION TO THE CDZ INTERNAL UNIT AC UNIT From NH-CFI-CDZ to CDZ INTERNAL UNIT (check what is indicated in the dedicated manual of the interface present) KN-UNI-WIFI NH-CFI-CDZ (option A+ B-) NH-CFI-CDZ (option BUS) -
Page 11: Electrical Connection Information Motorized Plenum (Xpcab-Cdz-Dn-Cir)
3.1.4 CONNECTIONS WITH UNIVERSAL INFRARED INTERFACE PLENUM (XPCAB-CDZ-DN-CIR) CONNECTIONS BY THE INSTALLER PHASE AND NEUTRAL POWER SUPPLY (220V) From QE to KN-UNI-WIFI POSITIONING THE NH-CIR-INVERTER TRANSMITTER IN From NH-CIR-INVERTER to IR RECEIVER OF FRONT OF THE CDZ IR RECEIVER (check what is indicated THE CDZ INDOOR UNIT in the dedicated manual of the interface present) KN-UNI-WIFI... -
Page 12: Electrical Connection Information Motorized Plenum (Xpcab-Cdz-Dn-Gtp)
3.1.5 CONNECTIONS FOR HYDRONIC INTERFACE PLENUM (XPCAB-CDZ-DN-GTP) CONNECTIONS BY THE INSTALLER PHASE AND NEUTRAL POWER SUPPLY (220V) From QE to KN-UNI-WIFI PHASE AND NEUTRAL POWER SUPPLY (220V) From QE to NH-CFI-GTP (check what is indicated in the dedicated manual of the interface present) CONNECTION TO THE CDZ INTERNAL UNIT FOR EC INVERTER MOTORS... -
Page 13: Commissioning
PUT IN ACTION 4.1.1 GENERALITY' Carry out the following activities and checkS to ensure full and correct functioning of the MOTORIZED PLENUM 4.1.2 ACTIVITY' ACTIVITY' HOW TO DO IT WARNING QR CODE (video tutorial) Check that you have made the electrical connections as indicated in the aforementioned Electrical check manual and specified in the instruction booklet... - Page 14 PLENUM (ETERNAL and SMART) to configure them with the control unit outputs (Z1-Z2-Z3, etc.) From the ETERNAL master command, set summer (snowflake) or winter (sun) operation and adjust the desired temperature on all WIRE SYSTEM commands, including SMART slaves Zone Configuration (Z1-Z8) In case of errors in the configuration of the zones, from the ETERNAL master command,...
- Page 15 Close the KOOLNOVA CLIMA APP RADIO/WIRE SYSTEM Activation is automatic and no procedure is Configuration necessary NH-CFI-CDZ / NH- GTP-UNI From the ETERNAL master command, hold down the settings symbol to open the installer RADIO/WIRE SYSTEM menu, click on the INT icon and set 50, press Configuration ok, then set the machine code (see dedicated table), and finally press ok to activate IR...
- Page 16 STEP 1 From the ETERNAL master command, hold down the settings symbol to open the installer menu, click on the INT icon and set 40, press ok, then set 44, press ok, and finally press the WPS button on the modem or repeater and wait for the D9 LED from flashing it becomes solid green...
-
Page 17: Alarms
ALARMS 5.1.1 GENERALITY' In the event of defects or faults, take note of any problem, the model and serial number of the MOTORIZED PLENUM and contact Air Control on 02/4548 2147 or via e-mail at amministrazione@aircontrolclima.it 5.1.2 PROBLEMS , CAUSES AND REMEDIES... -
Page 18: Declaration
Directive 2012/19/EU (ex 2002/96/EC) “WEEE” We also declare that AIR CONTROL is classified as a “downstream user” and does not generate any new substances that require registration. Constant communication with your suppliers allows you to trace the supply chain of raw materials and any semi-finished products purchased. -
Page 19: Declaration Of Incorporation Of Partly Completed Machinery
Directive 2012/19/EU (ex 2002/96/EC) “WEEE” We also declare that AIR CONTROL classifies itself as a "downstream user" and does not generate any new substances that need to be registered. Constant communication with its suppliers makes it possible to trace the supply chain of raw materials and any semi-finished products purchased.
