Summary of Contents for Elecbrakes vm1

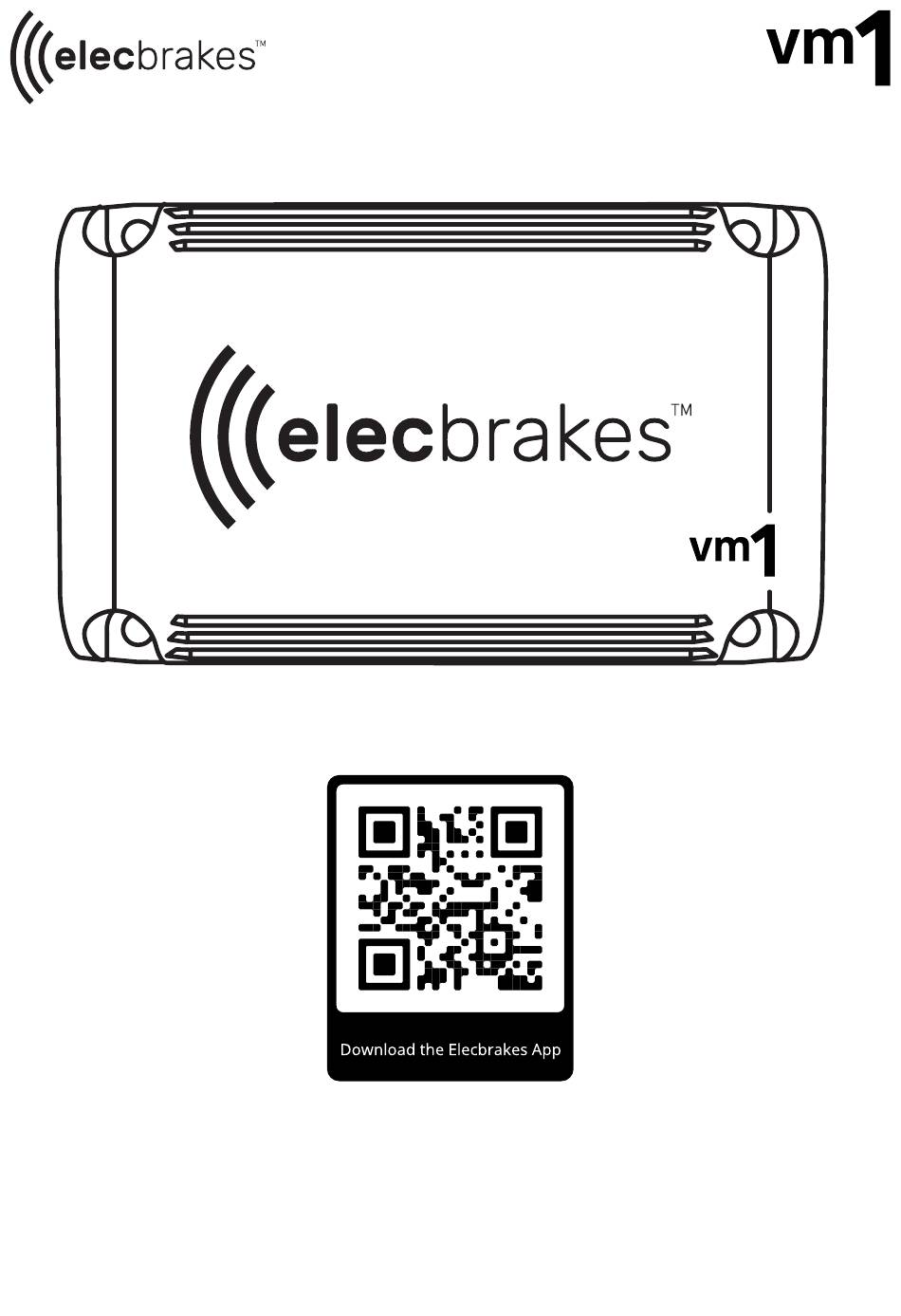

- Page 1 VM1 User Manual V1.0 -29-07-2024...
-
Page 2: Table Of Contents
The VM1 allows for precise tuning of the braking response through three independent parameters, enabling customisation for different trailers, varying loads and road VEHICLE REQUIREMENTS conditions. -
Page 3: Specifications & Ratings
Mechanical Characteristics Housing material Glass reinforced nylon Fasteners S500 self tapping ph3 head Encapsulant Polyurethane elastomer Operating range -30C to 75C ambient Thermal properties Over temperature output throttling 145C internal Other Bluetooth Version VM1 Technical Manual | V1.0 - 29-07-2024... -
Page 4: Whats Included
4. WHAT’S INCLUDED: 4x self tapping screws 4 Quick install guide 1.5m leader VM1 brake controller 5. QUICK START OPTIONS In-App Onboarding In Box Print Out The Quick-Install Video 6. DIMENSIONS 138mm 117mm 05mm VM1 Technical Manual | V1.0 - 29-07-2024... -
Page 5: Installation
7. INSTALLATION MOUNTING ORIENTATIONS Choose a suitable location for mounting VM1 such as the luggage VM1 Unit must be mounted with one face compartment, rear quarter panel, ute tray or vehicle underbody. Ensure parallel to the ground. the brake controller is mounted securely, within reach of the wiring harness and is out of harms way. -
Page 6: Pairing The Unit
8. PAIRING THE UNIT You must use the Elecbrakes app on your smartphone for the initial connection and setup. Download the app through the appropriate app store Minimum requirements: iOS 15 or later Android 10 or later On opening, the app will ask you to select your device type and guide you through a short onboarding process, this includes;... -
Page 7: Warranty Information
Australia and New Zealand be excluded under the Australian Consumer Law. You are are covered by the Elecbrakes Product Warranty. This entitled to a replacement or refund for a major failure and Product Warranty is provided by:... - Page 8 11. 7-pin Wiring diagram VM1 Technical Manual | V1.0 - 29-07-2024...
- Page 9 12. 12-pin wiring diagram VM1 Technical Manual | V1.0 - 29-07-2024...
- Page 10 Need Help? or call our customer service team on 1300 516 248...
