Summary of Contents for Hot Spot WSG-403

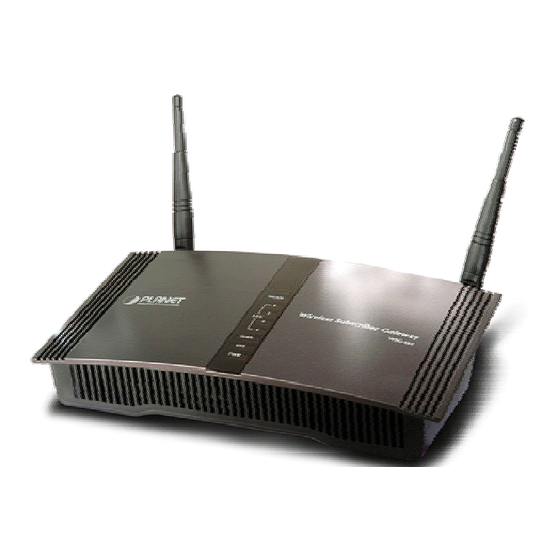

- Page 1 Hot Spot Wireless Subscriber Gateway WSG-403 Quick Installation Guide...
- Page 2 Linux, UNIX or other platform compatible with TCP/IP protocols. • <Optional> The account generator (Model No.: WSG-ACG3). • <Optional> IEEE802.3af PSE or 802.3af PoE Mid-span injector Mac platform should be OS9 or later in order to have DHCP client support. Hint WSG-403 Overview...
-
Page 4: Top Panel
WSG-403 has established a valid wireless connection. WLAN Green The Wireless connection is active. (Blinking) WSG-403 status is defective if Power LED is ON and Sys LED OFF. Green WSG-403 system is ready Green During firmware upgrades, this LED will blink. -
Page 5: Rear Panel
Used to connect the external power supply with for WSG-403 device. 2. LAN Port: WSG-403 supports four auto-sensing RJ-45 ports and all ports can be auto-switched to MDI-II connections. The LAN ports are used for linking hosts or other networking device. -
Page 6: Wall Mounting
Installation The followings are instructions for setting up PLANET WSG-403. Refer to the illustration and follow the simple steps below to quickly install your Wireless Subscriber Gateway. Wall-Mounting PLANET WSG-403 can be wall-mounted on a wall by applying the two mounting brackets on screws. -
Page 7: Hardware Connection And Installation
2. Use standard LAN cables to connect PCs to the switch ports on WSG-403. 3. Connect your Cable/DSL Modem to the WAN port on WSG-403. Use the cable supplied with your Cable/DSL modem. If no cable was supplied with your modem, use a standard network cable. Please make sure the connection is established (LED is on). - Page 8 Step 1: Start your browser, and then enter the factory default IP address 192.168.0.1 in your browser’s address bar. Step 2:PLANET WSG-403 configuration tools menu will appear. In the Username and Password field, enter the user name (“admin” is the default value), password (“password” is the default value) and click Getting Started to start machine administration.
- Page 9 Step 3: Internet Connection Setting DHCP Client The device can work as a DHCP client. This allows WSG-403 to obtain the IP address and other TCP/IP settings from ISP side. If your xDSL/Cable comes with this feature, please enable Use DHCP Client.
- Page 10 Item Description IP Address An IP address for the xDSL/Cable connection (provided by your ISP) Subnet Mask An IP address (provided by your ISP) Gateway IP The Gateway IP Address for the xDSL/Cable connection Address (provided by your ISP). Primary DNS A primary DNS server IP address for the xDSL/Cable Server connection (provided by your ISP).
- Page 11 Item Default Description PPP MTU 1492 (Maximum Transfer Unit) specifies maximum Setting transmission unit size. TCP MSS 1452 MSS (Maximum Segment Size) specifies maximum segment Setting size. Service name Empty Your ISP will provide the service name. Connect on Demand and Max Idle Time Connect on Enable You can configure your Wireless Subscriber Gateway to cut...
- Page 12 PPTP Client Item Default Description My IP Address Empty A PPTP local IP address for the xDSL/Cable connection (provided by your ISP). My Subnet Mask Empty A PPTP local IP address for the xDSL/Cable connection (provided by your ISP). Gateway IP Empty A PPTP server Gateway IP address for the xDSL/Cable connection Address...
- Page 13 Item Default Description Connection Empty Connection ID or connection name. ID/Name MTU (Maximum Transfer Unit) specifies maximum transmission PPP MTU Setting 1460 unit size. TCP MSS Setting 1400 MSS (Maximum Segment Size) specifies maximum segment size. Connect on Demand and Max Idle Time Connect on You can configure your Wireless Subscriber Gateway to cut your Enable...
- Page 14 Channel The channel ID for wireless connection. Step 5: E-mail Server Setting WSG-403 allows an extra Email server parameter to forward the subscriber’s E-mail. enable the WSG-403 to redirect subscribers’ e-mail to specific SMTP server (must be reachable by WSG.)
- Page 15 Item Default Description Email Server Disables or enables email server redirect Redirect function. To prevent some subscriber’s original Email server may protect by firewall or NAT network. Wireless Subscriber Gateway provides an extra Email server parameter to forward the subscriber’s Email.
- Page 16 Step 7: Billing Profile Setting Item Default Description Service Time to Options: “Time Finish” Finish “Accumulation”. Time to Finish― The subscriber can access Internet only one time with one account. Once subscriber login, the pre-defined usage time will start until run out even the subscriber stop to access the Internet before run out.
- Page 17 There are two different choices, one is exclusive printer (WSG-ACG3 - Account Generator Printer), and the other is non-exclusive printer. Exclusive printer is a portable thermal printer that is integrated with WSG-403 to press three button actions to generate accounts and receipt immediately without PC. Non-exclusive printer can use the PC Web-based browser to print out user account information.
- Page 18 Step 9: Account Setting This page shows the pre-defined exclusive printer setting, click on Next for the next steps. Click on “Customize print out text” to define the text in advance. Or click on “I want to setup the web-based accounting now if exclusive printer cannot work”.
- Page 19 IP addresses for remote Address control the system. After these steps, your WSG-403 is able to establish Internet connection. More machine configurations and information can be found in the user’s manual CD, please be sure to check the user’s manual for more understandings...
