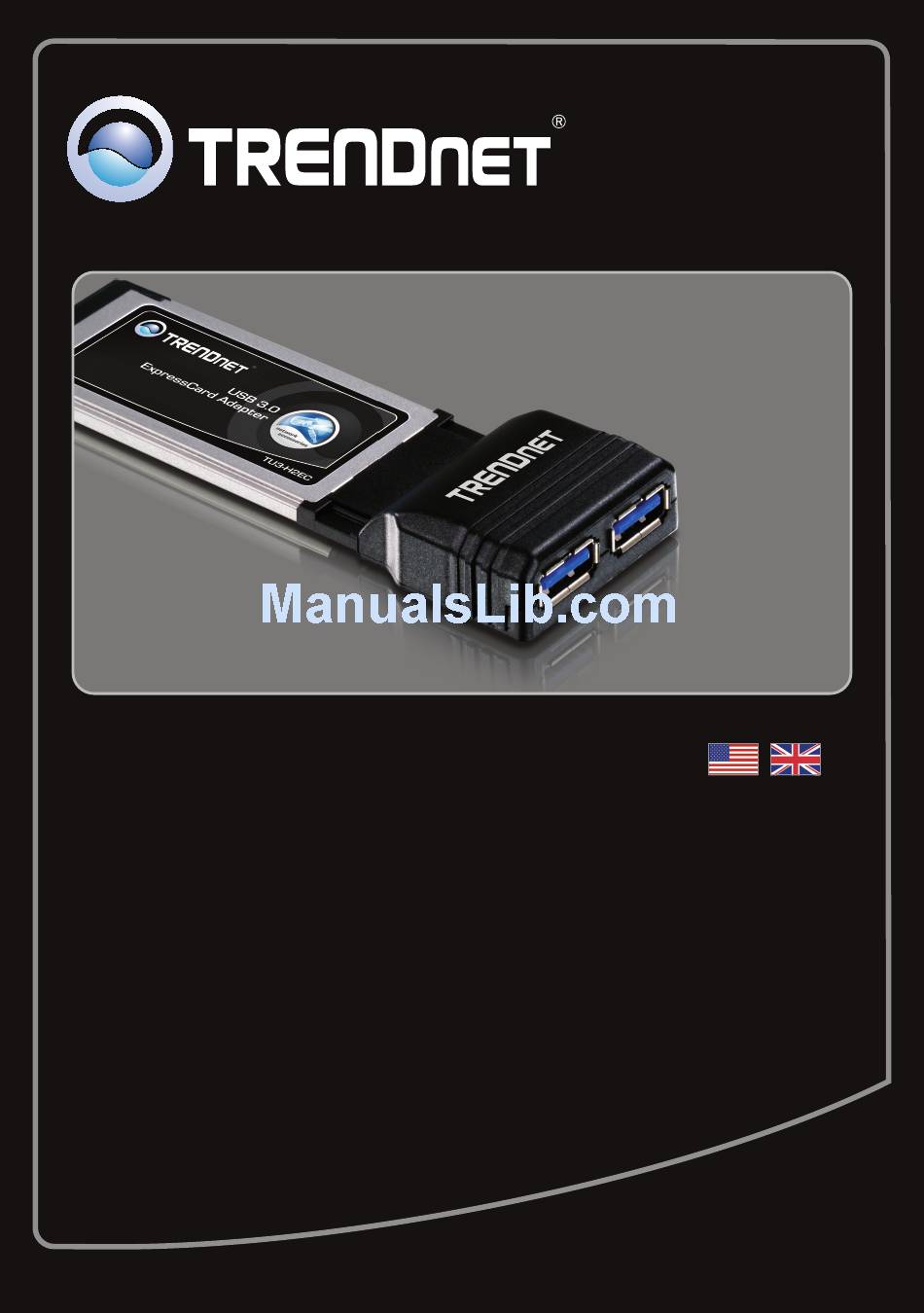

- Page 1 Quick Installation Guide TU3-H2EC 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. How to Install Technical Specifications Troubleshooting Version 03.30.2010... -
Page 3: English
1. Before You Start Package Contents TU3-H2EC CD-ROM (Driver) Multi-Language Quick Installation Guide Power Adapter (5V DC, 2.5A)(Optional) System Requirements Express Card/34 or Express Card / 54 slot CD-ROM Drive USB 3.0 Cable CPU: 1GHz or above (Windows 7) / 800MHz or above (Windows Vista) / 300Mhz or above (Windows XP) Memory: 1GHz RAM or above (Windows 7) / 512MB RAM or above (Windows Vista) / 256MB RAM or above (Windows XP) -
Page 4: How To Install
2. How to Install Important! Do not insert the TU3-H2EC in the computer until instructed to do so. 1. Insert the Driver CD-ROM into your CD-ROM drive. 2. Click Autorun.exe (Windows 7/Vista only). 3. Click Install Driver. 4. Click Next. Then follow the InstallShield Wizard instructions. - Page 5 6. Click Continue Anyway (Windows XP only). 7. Click Finish. Note: Please refer to your computer's user manual regarding hardware installation. 8. Shutdown your computer. 9. Insert the TU3-H2EC card firmly into an available Express card slot, and then turn ON the computer and wait until the Windows desktop appears.
- Page 6 Note: For Windows 7/Vista, drivers will install automatically. Please skip to step 15. For Windows XP, continue on to step 10. 10. The Found New Hardware Wizard appears Select No, not this time and then click Next. 11. Select Install this software automatically (recommended) and then click Next.
- Page 7 Troubleshooting section, User's Guide on the Driver CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register register your product Online at: Thank you for choosing TRENDnet...
-
Page 8: Technical Specifications
Technical Specifications Hardware Interface USB 3.0 ExpressCard 1.0 Port 2 x USB 3.0 Port Supported OS Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) Data Rates Super-speed: 5Gbps High-speed: 480Mbps Full-speed: 12Mbps Low-speed: 1.5Mbps Power Consumption 100mA (max) per port, BUS-power 900mA (max) per port, external power adapter Power 5V DC, 2.5A external power adapter... -
Page 9: Troubleshooting
3. Try connecting the external USB device to the other USB port on the TU3-H2EC. 4. Try using a different USB cable. 5. Try connecting the external power adapter to the TU3-H2EC. If you still encounter problems or have any questions regarding the TU3-H2EC, please contact Trendnet's Technical Support Department. - Page 10 RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 11 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 13 Copyright ©2010. All Rights Reserved. TRENDnet.
