DXi-WOB-E-EXP and DXi-WOB-E-P-EXP
XTND Radio Kit
Introduction
This kit enables Wireless Output Board control from a DXi Sentinel controller to up to 4 Wireless Output Boards (WOBs).
The kit uses wireless radio communication in the 900MHz unlicensed radio frequency band.
Installation Instructions
CAUTION: DXi serviceable parts shall be installed by qualified personnel familiar with the product and with local
!
electrical code requirements. DXi serviceable parts shall not be used or installed in product other than DXi Product
Series. Failure to do so will void product's safety and FCC certification.
If used in product other than DXi Product Series, additional safety and FCC testing shall be considered as part of
the end product assessment and usability.
Within the kit is the control interface between the controller's firmware and the kit's radio transceiver. All elements of the kit
are included in the module, along with an RF cable to the 900MHz antenna that will be mounted outside the enclosure.
For PPED (plastic pedestal) enclosures, the antenna is the supplied whip antenna that is attached at the module's RF
connector inside the PPED (see Figure 5).
This document illustrates how to mount the antenna and module for the following DXi enclosures:
• DXI-PWM08
• DXI-PWMTW
• DXI-SWM08
• DXI-SWMTW
• DXI-SPED08
• DXI-SPEDTW
For all enclosures (except the PPED), the antenna is attached on the outside of the enclosure and the RF cable is run
through the knockout in the body to connect to the RF connector on the module.
The module itself is slid into the bracket where it is held securely by the bracket arms, no screws required.

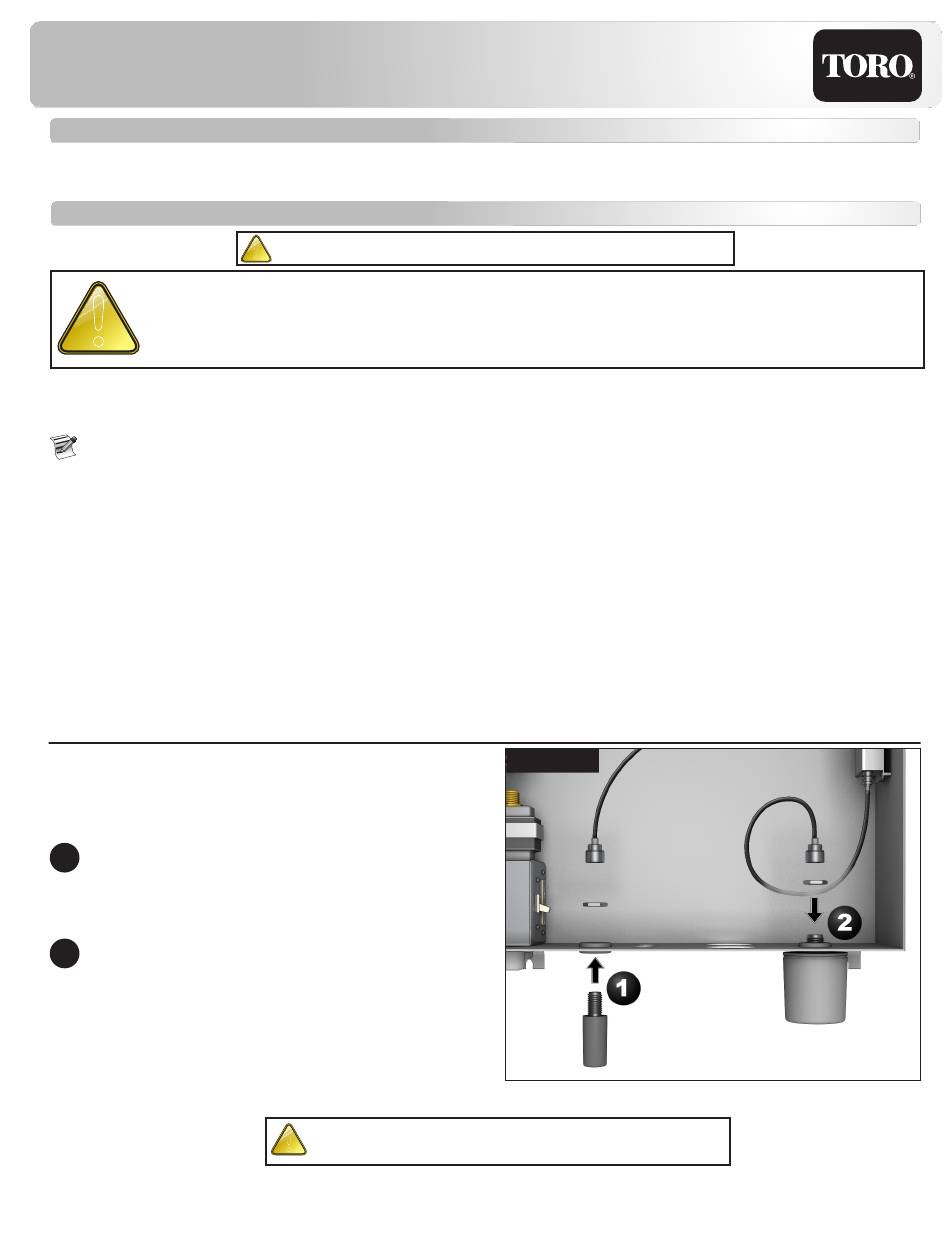

Antenna Installation
To install an antenna in a DXi enclosure (procedure is same
whether knockout is on top or bottom of enclosure):
Insert included rubber grommet into the enclosure hole
1
for the antenna.
Insert antenna threading through the hole.
Secure the large nut and antenna connector to threading
2
of antenna.
©2021 The Toro Company • www.toro.com • Patents: www.ttcopats.com
Installation Guide
!
CAUTION: Power off the controller prior to installing expansion kits.
WARNING: Cancer and Reproductive harm – www.P65Warnings.ca.gov.
!
For more information, please visit www.toro.com/CAProp65.
• DXI-SPEDHY08
• DXI-PSB08
• DXI-PSBTW
• DXI-DPSB56
• DXI-PPED08
• DXI-PPEDTW
Figure 1
Part Number 373-1060 Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the DXi-WOB-E-EXP and is the answer not in the manual?

Questions and answers

Summary of Contents for Toro DXi-WOB-E-EXP

  • Page 1 Insert antenna threading through the hole. Secure the large nut and antenna connector to threading of antenna. WARNING: Cancer and Reproductive harm – www.P65Warnings.ca.gov. For more information, please visit www.toro.com/CAProp65. ©2021 The Toro Company • www.toro.com • Patents: www.ttcopats.com Part Number 373-1060 Rev. A...
  • Page 2 Wallmount (WM) Part Description 118-5396 ribbon cable to connect the XTND module 118-7909 118-3337 steel bracket used to mount the XTND module 118-7909 Figure 2 Figure 3 Ribbon cable connects XTND module RF cable 118-4344 connects antenna and module. to COM OPTION board It is screwed onto the RP-SMA connector on the module and attached to the mounted antenna on the...
  • Page 3 Plastic Pedestal (PPED) Stainless Steel Pedestal (SPED) Part Description 510-0010 screws to fasten bracket 118-3337 to enclosure 363-7124 Externally mounted antenna Vandal-proof antenna mount kit (for 363-7124) 363-7123 Figure 5 Figure 6 Similar to Figure 4, ribbon cable 118-5396 Module 118-7909 is placed inside steel bracket 118-3337 connects the XTND radio to the COM OPTION Bracket 118-3337 mounts directly to the cabinet using standoffs 363-7435.
  • Page 4 RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. 5825 Jasmine Street Riverside, CA 92504 800-777-1477 irrigationsupport@toro.com...
