Summary of Contents for ITO ES-130

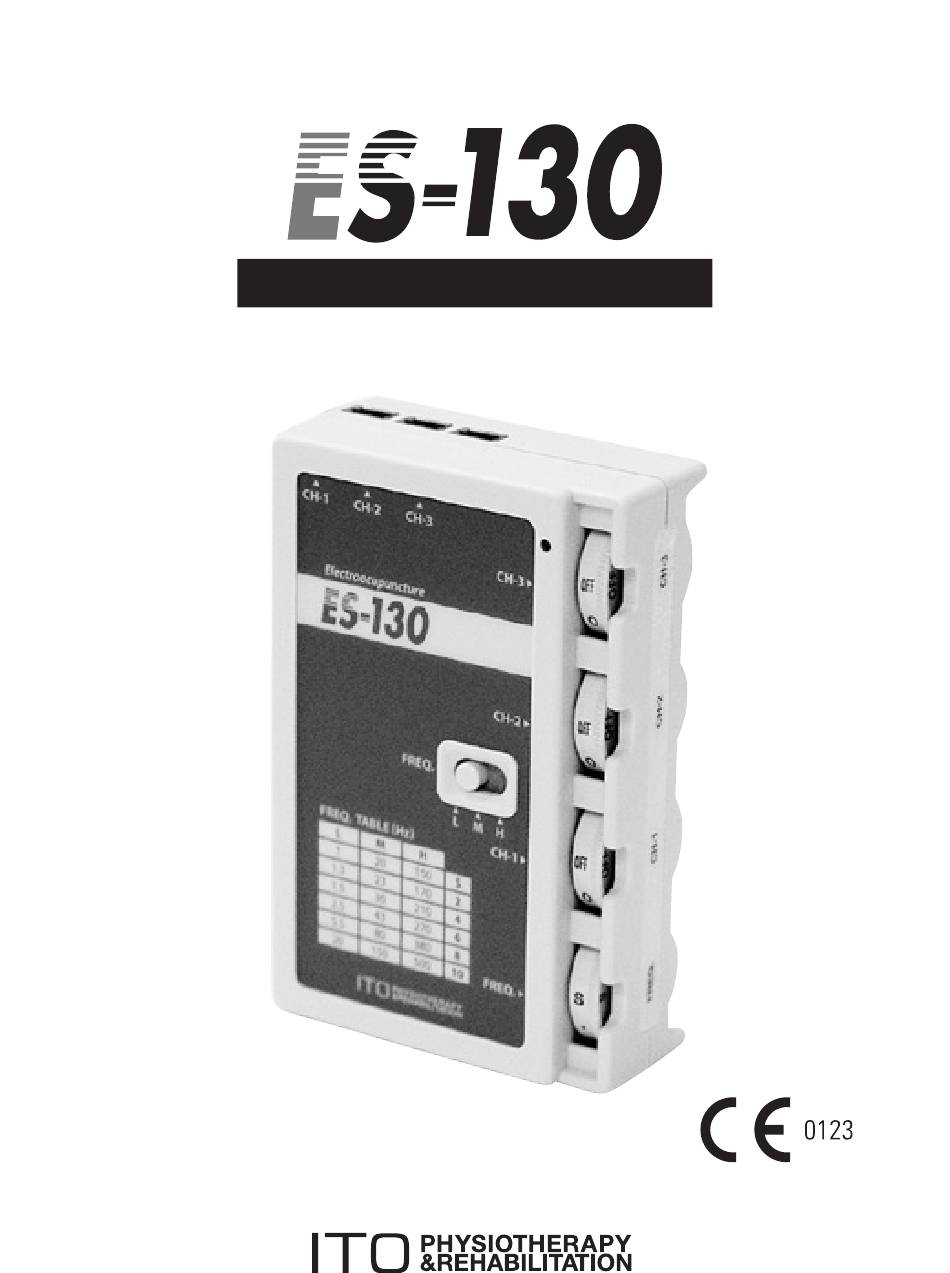

- Page 1 3-channel Palm-sized Electroacupuncture OPERATION MANUAL...
-
Page 2: Table Of Contents
CONTENTS ■Warning Symbol Marks ..............■Symbols . -
Page 3: Warning Symbol Marks
ES-130. CAUTION indicates a possibility of death or serious injury of an operator or property damage when the operator ignores this caution and uses the ES-130. -
Page 4: Symbols
■Symbols • Symbol for “CONSULT • Symbol for INSTRUCTIONS FOR “ATMOSPHERIC USE” PRESSURE LIMITATION” • Symbol for “SERIAL NUMBER” • Symbol for “Waste Electrical and • Symbol for Electronic Equipment “CATALOGUE (WEEE), Directive” NUMBER” * This symbol is valid only in European •... -
Page 5: Intended Use
1) Over or in the region of carotid sinus 2) Thorax of individuals with cardiac disease 3) ES-130 should not be used to people or in conjunction with the devices listed below a) Individuals with cardiac pacemakers or other devices implanted... - Page 6 8) Individuals with active hemorrhage or bleeding disorders such as hemophilia 9) Over the heart 10) Individuals with contagious disease such as tuberculosis 11) Transcranial placement of electrodes (the head in between the electrodes) 12) Electrode placement on the chest where electrical stimulation may be applied to the heart which may result in cardiac fibrillation.
- Page 7 8) Stimulators should be used only with the leads and electrodes recommended for use by the manufacturer. 9) ES-130 should not be used while driving, operating machinery, or during any activity in which involuntary muscle contractions may put the user under extreme risk of injury.
-
Page 8: Components
① Frequency Range Selector Switch Output frequency range is selected by the user from L setting which represents the low ES-130 frequency range (1-20 Hz), M setting which represents the medium ES-130 frequency range (20-150 Hz), or H setting which represents the high ES-130 frequency range (150-500 Hz). - Page 9 The specific frequencies corresponding to the Fine Frequency Adjustment Dial settings, within each Frequency Range Selector Switch setting (L, M, and H), are listed in the ES-130 Frequency Selection Table. In addition to appearing further below in this document, the ES-130 Frequency Selection Table also appears in the ES-130 Operation Manual and on the front of the ES-130 Main Unit.
- Page 10 ⑦ Battery Level Check Button The user presses the Battery Level Check Button to examine whether the appropriate supply voltage is available to meet the ES-130 output specifications. If the green LED Battery Level Indicator Light illuminates, then the 9 V battery has sufficient voltage to operate the device effectively.
-
Page 11: Carrying Bag
Electrode Cable Each of the three Electrode Cables is composed 【 】 with Clips ESC006 of one connector and two clips for attaching the acupuncture needles (positive and negative connections). Any of the three Electrode Cables can be attached to any of the three Output Terminals, but are provided in three different colors (green, yellow, and white) to assist in distinguishing among placement of needle... -
Page 12: General Description Of Product
The ES-130 device is an Electroacupuncture Device composed of a Main Unit and three separate Electrode Cables. The Main Unit is powered by a standard 9 V battery, and the handheld ES-130 device is supplied with a Carrying Bag. ■Compatible Needle Electrodes When using the ES-130, use only the electrodes (0.20 mm minimum... -
Page 13: Specifications
■Specifications (1) Output channel: 3 channels (individually adjustable) (2) Maximum output voltage @ 500 Ω load (setting on back of device): 18 V ± 15% when High/Low Selector Intensity Switch = L 30 V ± 15% when High/Low Selector Intensity Switch = H (3) Maximum output current: Output selector 14 mA ±... - Page 14 (11) Environmental conditions: In use Temperature: 10–40℃ Humidity: 30–85％ Barometric pressure: 800–1060 hPa Storage Temperature: 10–60℃ Humidity: 30–95％ Transportation Barometric pressure: 700–1060 hPa CAUTIONS 1) Remove batteries before storing unit for an extended period of time. 2) Avoid twisting or pulling wires, as this may cause damage. 3) When storing the machine, be sure to pay attention to the following: a) Keep unit away from water.
- Page 15 10) Output of the RED alligator clip is positive and the BLACK is negative. 11) Misuse or violent force may cause damage to the machine. 12) Clean unit with a damp cloth. 13) Do not use chemicals or cleaning agents. 14) When the machine is going to be operated again after it has been laid out for a while, make sure to verify in advance that the components of devices work normally and safely.
-
Page 16: Battery
The output voltage reduces linearly as the battery is depleted, resulting in less treatment to patient when the Battery Level Indicator Light does not illuminate. Before using the ES-130, check the battery power using the Battery Level Check Button. -
Page 17: Preparations
CAUTIONS Avoid environmental contamination by disposing of batteries according to local law. When the battery is inserted in the reverse position it is hard to close the battery lid because of its structure. In that case do not attempt to close the battery cover by force, but instead reverse the battery to the correct position then close the battery cover. - Page 18 11. Use only cleared acupuncture needles recognized in each area that are larger than 0.20 mm in diameter, and compatible with the ES-130 device. 12. Select pulse frequency for treatment from the Frequency Table printed on the unit.
-
Page 19: Beginning Treatment
(H) setting for electroacupuncture treatment of high insertion depth. 2. Select pulse frequency for treatment from the ES-130 Frequency Selection Table printed on the unit. Set the Frequency Range Selector Switch and the Fine Frequency Adjustment Dial according to the table shown on the previous page. -
Page 20: Concluding Treatment
5. Once the treatment is finished, return the dials and other controls to their original positions, turn off the power, dispose of electrodes/acupuncture needles safely according to your established medical sharps procedures, and store the ES-130 device and accessories in an appropriate location. -
Page 21: Device Maintenance
■Device Maintenance WARNINGS 1. To secure safety, check the ES-130 device on a regular basis. For any information, please contact your dealer or the manufacturer. 2. Do not attempt to repair or modify the machine by yourself, lest an accident may result. If the machine malfunctions, shut down the operation and contact your dealer or the manufacturer. -
Page 22: Emc
■EMC • Medical electronic devices are designed to ensure electromagnetic compatibility (EMC). • These devices must be installed and used in accordance with the EMC information provided on the following pages. • Do not use portable and/or mobile RF communication devices closer than 30 cm within the medical electronic device. - Page 23 Guidance and manufacturer’s declaration – electromagnetic emissions This unit is intended for use in the electromagnetic environment specified below. The customer or the user of this unit should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment —...
- Page 24 Guidance and manufacturer’s declaration – electromagnetic immunity This unit is intended for use in the electromagnetic environment specified below. The customer or the user of this unit should assure that it is used in such an environment. It does not harm users and patients within the electromagnetic environment shown below. However, it is possible to affect the medical equipment (output stop etc.).
- Page 25 Guidance and manufacturer’s declaration – electromagnetic immunity This unit is intended for use in the electromagnetic environment specified below. The customer or the user of this unit should assure that it is used in such an environment. It does not harm users and patients within the electromagnetic environment shown below. However, it is possible to affect the medical equipment (output stop etc.).
- Page 26 NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
- Page 27 Recommended separation distances between portable and mobile RF communications equipment and this unit This unit is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of this unit can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and this unit as recommended below, according to the maximum output power of the communications equipment.
- Page 28 MDSS GmbH Schiffgraben 41 30175 Hannover, Germany “AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY” 3-1-8 Sakae-cho, Kawaguchi-shi, Saitama 332-0017, Japan TEL: 81-48-254-1031 FAX: 81-48-254-1033 URL: https://www.itocoltd.com/ E-Mail: itocoltd@itolator.co.jp Printed in Japan C0a230968-2207 P2306DATA...
