INSTALLATION AND USER MANUAL
ECOHEAT
EH200S
EH300S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOHEAT EH200S and is the answer not in the manual?

Questions and answers

Summary of Contents for FISCHER ECOHEAT EH200S

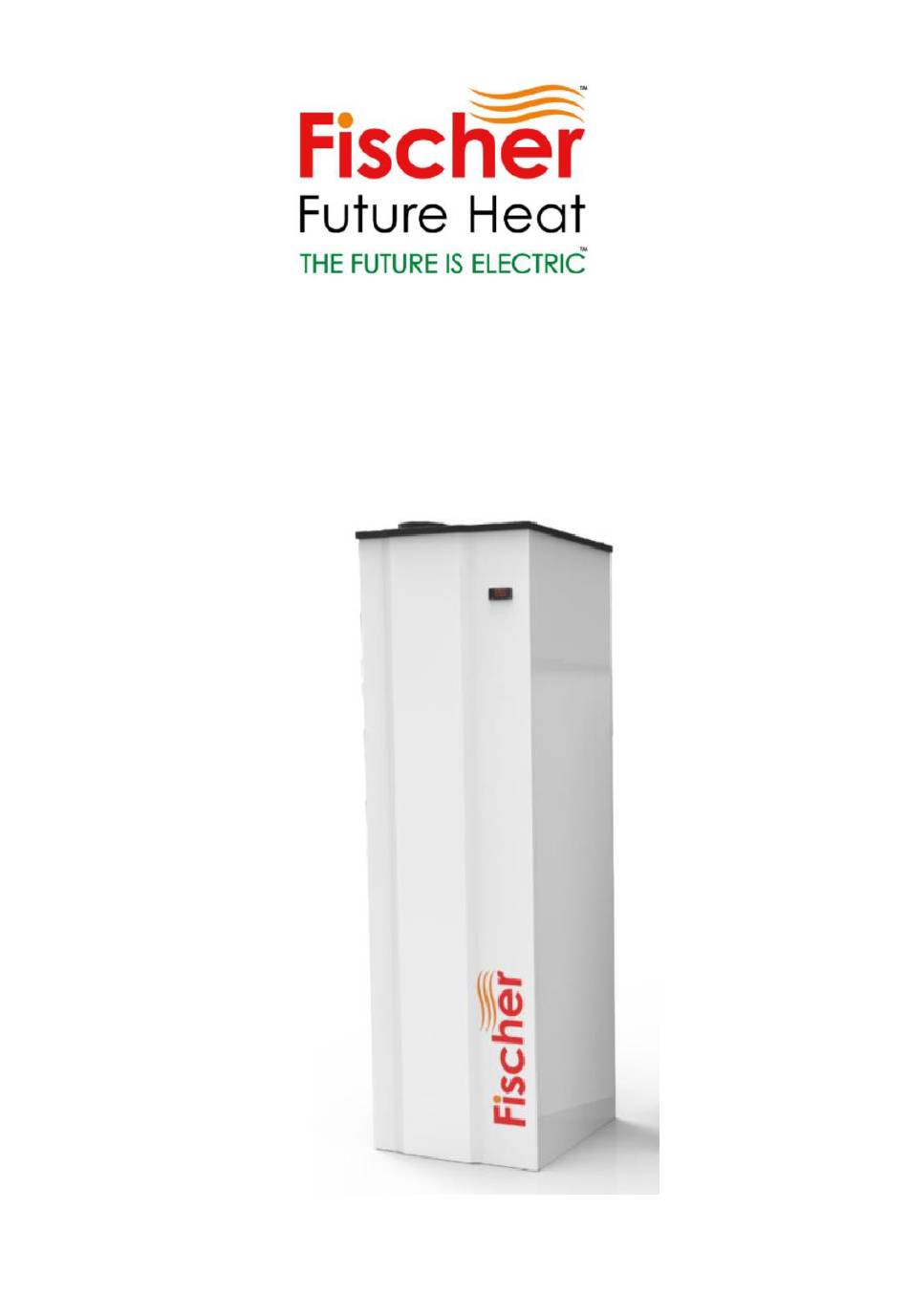

  • Page 1 INSTALLATION AND USER MANUAL ECOHEAT EH200S EH300S...
  • Page 2 INSTALLATION AND USER MANUAL ECOHEAT V1REV3EN0921...
  • Page 3: Table Of Contents

    INSTALLATION AND USER MANUAL ECOHEAT INTRODUCTION ..................... 4 GENERAL INDICATIONS ..................4 TECHNICAL INFORMATION .................. 5 INSTALLATION STEPS ..................8 PLACING ECOHEAT ....................8 AIR CONNECTION....................8 HIDRAULIC CONNECTION .................. 10 ELECTRICAL CONNECTION ................11 COMISSIONING. CONTROLLER................12 WARRANTY CONDITIONS ................... 22 V1REV3EN0921...
  • Page 4: Introduction

    It is necessary to carefully read this manual before making any handling to avoid problems arising from the misuse of the product. The company Fischer reserves the right to modify the information included in this document at any time without prior notice.
  • Page 5: Technical Information

    INSTALLATION AND USER MANUAL ECOHEAT Use a forklift or hand pallet truck to transport the unit to the installation site, always introducing the forks into the bottom of the pallet being careful not to damage the unit. In case you identify any damage at the time of the reception of the unit, it is mandatory to register it in the reception note of the transport company, and then, submit the complaint.
  • Page 6 INSTALLATION AND USER MANUAL ECOHEAT Figure 3: Dimensions, mm EH200S EH300S 1527 1945 Figure 4. Back connections Figure 5. Front connections Power supply, 230V/ 1PH/50 HZ Coil outlet, ¾’’ Condensate drain Coil inlet, ¾’’ Hot water outlet, ¾ ‘’ Cold water inlet, ¾’’ EH200S: Temperature pocket (boiler temperature probe) Electrical heater, 1500W / Temperature probe EH300S: Recirculation connection, ¾...
  • Page 7 INSTALLATION AND USER MANUAL ECOHEAT 3.3. Technical data Cylinder EH200S EH300S Capacity, L Maximum operating presure, bar Heat pump data Energy Efficiency Class Load profile Heating capacity (1), W 1841 Input power (1), W COP (1) Heating capacity (2), W 2270 Input power (2), W COP (2)
  • Page 8: Installation Steps

    INSTALLATION AND USER MANUAL ECOHEAT 4. INSTALLATION STEPS Before starting the installation, check the availability of all the necessary components and tools: Drill Screwdriver Hydraulic installation components Electric installation components Once it has been checked that it is available all the necessary components and tools, the installer should follow the next steps: 1.
  • Page 9 INSTALLATION AND USER MANUAL ECOHEAT Since the temperature of the exhaust air is lower than the intake air flow, the user can recover this cold air to refresh a room. In this case, it is recommended to install a double duct, one to the room and other to outdoors.
  • Page 10: Hidraulic Connection

    INSTALLATION AND USER MANUAL ECOHEAT 7. HIDRAULIC CONNECTION The hydraulic connections are shown in the following scheme: The installer must install the following components of the hydraulic circuit: Cold water inlet (1) Safety valve (7) Ball valves (2) Expansion vessel (8) Pressure reducing valve (3) Check valve (9) Non- return valve (4)
  • Page 11: Electrical Connection

    INSTALLATION AND USER MANUAL ECOHEAT 8. ELECTRICAL CONNECTION The power supply of the system is 230/1/50 Hz. The power line must be protected by a circuit breaker of 2 poles / 16 A. The connection scheme is shown in the picture above. PV: Photovoltaic connection LPS: Low pressure switch HPS: High pressure switch...
  • Page 12: Comissioning. Controller

    INSTALLATION AND USER MANUAL ECOHEAT 9. COMISSIONING. CONTROLLER. 9.1. USER INTERFACE DESCRIPTION R I A C E D E S C R I P T I Down / SET / ON / Change mode Stand-by Escape Symbol Meaning when it lights Compressor switched on Defrost active Fan switched on...
  • Page 13 INSTALLATION AND USER MANUAL ECOHEAT 9.2. INSTALLATION- Switching on After full installation of the water heater (power and water pipes connected) and after the water heater tank is full of water, power can be turn ON. 1. After filling the tank of water, connect the mains plug to the mains supply.
  • Page 14 INSTALLATION AND USER MANUAL ECOHEAT 9.4. Unlocking the keypad When 30 have elapsed without the keys being pressed, the display will show the ‘’ LOC’’ label and the keypad will lock automatically 4 sec Touch any key until the screen shows UnL, to unlock the keypad 9.5.
  • Page 15 INSTALLATION AND USER MANUAL ECOHEAT 9.6. Changing operating mode To change the operating mode, touch the for 4 seconds. The screen will show blinking the selectable operating modes. Use keys to select the operating mode. 4 sec 1 click Touch to confirm or to cancel The screen will show again the water temperature...
  • Page 16: Eco Mode

    INSTALLATION AND USER MANUAL ECOHEAT 9.7. ECO Mode ECO mode: Maximum savings. The system heats water only by heat pump technology. This is the factory default mode. Setting the ECO temperature setpoint The water temperature set point in ECO mode can be changed with the SP1 parameter. Touch key and select SP1.
  • Page 17 INSTALLATION AND USER MANUAL ECOHEAT 9.8. AUTO Mode It maintains a steady temperature by the heat pump and only use the electrical heater if the temperature falls drastically. Setting the AUTO temperature setpoint The water temperature set point in AUTO mode can be changed with the SP2 parameter. Touch key and select SP2.
  • Page 18 INSTALLATION AND USER MANUAL ECOHEAT 9.9. OVERBOOST Mode Select this mode to achieve a fast heating by using simultaneously heat pump and electric heater. This mode Works as a rapid heating. Once the setpoint temperature is reached, the system returns to the initial mode.
  • Page 19 INSTALLATION AND USER MANUAL ECOHEAT Touch and select with 1 click SP3. Touch to confirm The display will show the programmed 1 click temperature Touch to select the desired temperature Touch to confirm or 1 click cancel 9.10. PHOTOVOLTAIC INPUT Working on this mode, the system automatically heats the water due to electric energy surplus or by Off Peak rate.
  • Page 20 INSTALLATION AND USER MANUAL ECOHEAT The system can be combined with and Photovoltaic Inverter to take advantage of the surplus energy generated by the panels, by forcing the system working and storing this energy in useful hot water. The system has in the electric boar two terminals to connect a zero-voltage contact. When the contact is closed, the system automatically changes to Photovoltaic mode and the heat pump and electric heater work to achieve the programmed temperature.
  • Page 21 INSTALLATION AND USER MANUAL ECOHEAT 9.12. Antillegionella The anti-legionnella feature reduces the risk of development of bacteria in the tank. The system performs a thermal shock disinfection to avoid any risk conditions that might cause the development of bacteria. The disinfection is made automatically once a month, reaching a temperature of 70ºC.
  • Page 22: Warranty Conditions

    Damage caused by impact or fall during handling the product after it leaves the factory. To exceed the maximum accumulation temperature. The maximum accumulation temperature in all buffer tanks, unless otherwise indicated by Fischer, is 85ºC. The most restrictive operating temperature range of those indicated in this document, data sheet, equipment manual and identification label will always prevail, contrary indication expressed by Fischer.
  • Page 23 INSTALLATION AND USER MANUAL ECOHEAT V1REV3EN0921...
  • Page 24 INSTALLATION AND USER MANUAL ECOHEAT Fischer This company reserves the right to modify the information contained herein without prior notice. V1REV3EN0921...

This manual is also suitable for:

Ecoheat eh300s
