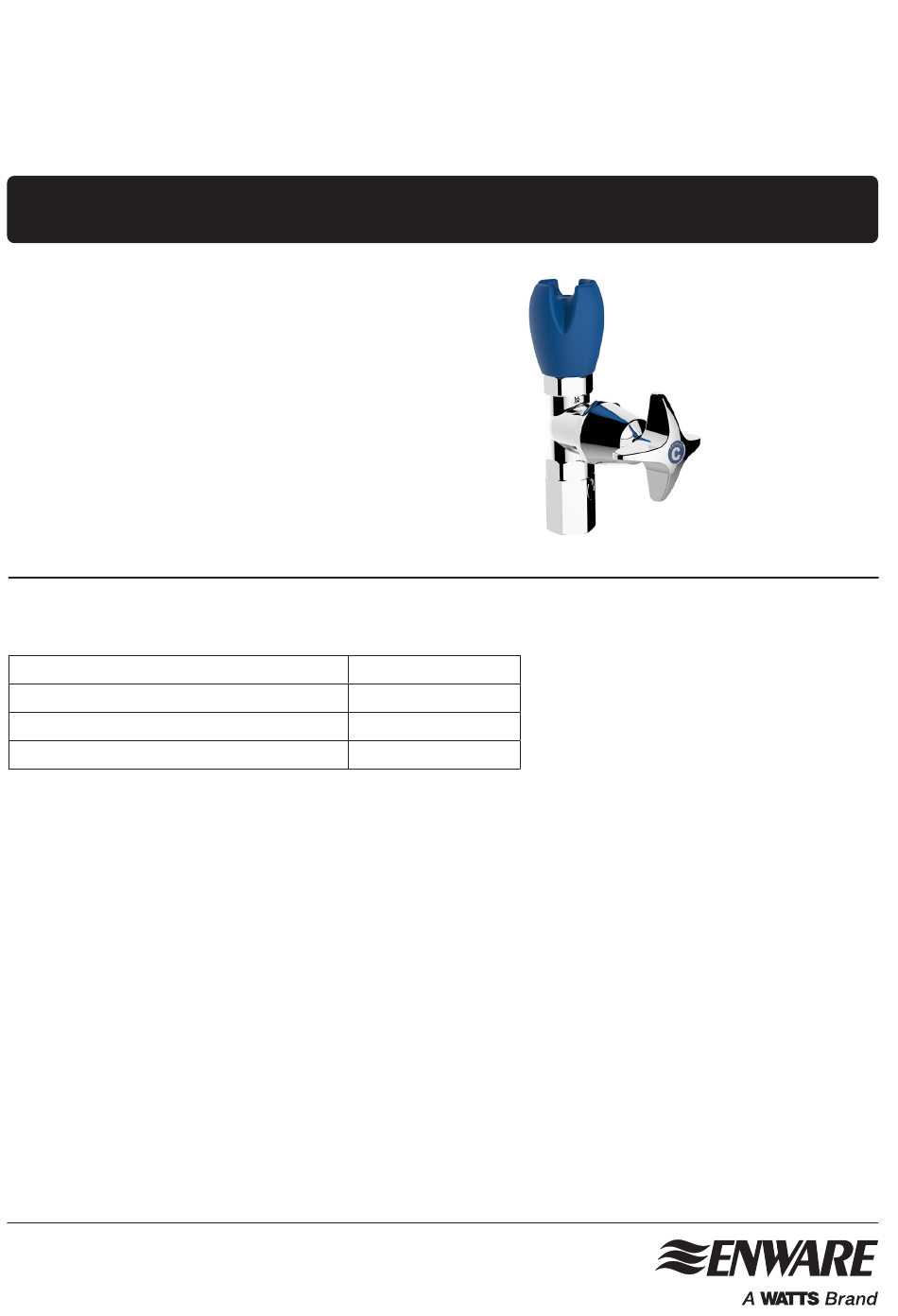

Type 45 Upright Fountain with Rubber Guard
Installation and Maintenance Instructions
BUB234RC
technical data
Inlet Connection
Recommended Working Pressure Range
Flow Rate
Recommended Temperature Range
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00574_20 Jan 2024
1300 369 273 | info@enware.com.au | enware.com.au
1/2" BSP (15mm)
100 - 500 kPa
2 L/min (Adjustable)
5 - 30 °C
Advertisement
Table of Contents
Related Manuals for Watts ENWARE BUB234RC
Summary of Contents for Watts ENWARE BUB234RC
- Page 1 Type 45 Upright Fountain with Rubber Guard Installation and Maintenance Instructions BUB234RC technical data Inlet Connection 1/2” BSP (15mm) Recommended Working Pressure Range 100 - 500 kPa Flow Rate 2 L/min (Adjustable) Recommended Temperature Range 5 - 30 °C Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
-
Page 2: Installation Procedure
installation Ensure all supply lines are flushed thoroughly to remove debris prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. A pressure reduction valve may be required to comply with the recommended maximum supply pressure requirements. -
Page 3: Flow Adjustment
FLOW ADJUSTMENT To adjust water stream height, firstly unscrew and remove the regulator cover cap using a flat head screw driver. (Note this is only a cover - the regulator screw is inside once the cover is removed.) Secondly, locate the flow adjustment screw inside. Turn the spring action handle on full and while the water is running, adjust the screw - tighten (turn clockwise) to reduce the flow or loosen to increase the flow. -
Page 4: Operation
operation CAM ACTION HANDLE To turn on water flow, turn handle and hold. To turn off water flow, let go of handle. Water flow stops automatically. (Handle can be turned either way until it reaches a stop.) IMAGE 05 www.enware.com.au Page 4 ©... -
Page 5: Components & Spare Parts
components & spare parts Cam Action Top Assembly (BUB261) Flow Adjustment Screw and Cap (BUB260C) SPRING Spindle REGULATOR SCREW Grub (BUB257) Screw COVER CAP & O-RING SEAL (BUB256) Dome Handle Insert Circlip Handle Handle Colour Indicator Button ENWARE PART SALES CODE Cam action top assembly BUB261 Cam action SBA... -
Page 6: Service And Maintenance
service & maintenance DOME ADJUSTMENT Adjust the position of the dome if: - there is play on the handle that needs to be adjusted; - if the bubbler is not shutting off completely / water constantly running; or - if there is no water flow Adjust the dome by carrying out the following steps: 1. - Page 7 SPRING ACTION SBA It is recommended that the spring action be periodically serviced. As a guide, every 6 months the spindle should be cleaned and re-greased, and the handle insert and other components checked for tightness. The servicing interval will vary depending on the frequency of use of the product, water quality and the general environment.
- Page 8 SERVICING THE SBA WITH SERVICE KIT 1. Pull the piston assembly out from the SBA and remove the 2 piston o-rings. SBA SPRING 2. Use a spanner to unscrew bottom inlet port, STAINLESS STEEL BALL remove spring and stainless steel ball in the BALL SEATING WASHER port.
- Page 9 CAM HANDLE If the handle feels loose, check that the handle insert is fitted, and tighten with the Anti Vandal Handle Key. To take off handle, use the Anti-Vandal Handle Key to loosen the insert. Handle pulls off the spindle. IMAGE 09 CLEANING Enware product should be cleaned with a soft damp cloth using only mild liquid detergent or...
-
Page 10: Troubleshooting
troubleshooting PROBLEM CAUSE RECTIFICATION Water runs constantly Dome screwed in too far Adjust dome. See DOME from outlet ADJUSTMENT Dome incorrectly adjusted Adjust dome. See DOME ADJUSTMENT Debris fouling ball seating Dismantle SBA and clean washer or stainless steel ball SBA ball seating washer Replace SBA components using is damaged or spring is... -
Page 11: Product Warranty Statement
- WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662... - Page 12 1300 369 273 info@enware.com.au enware.com.au...
